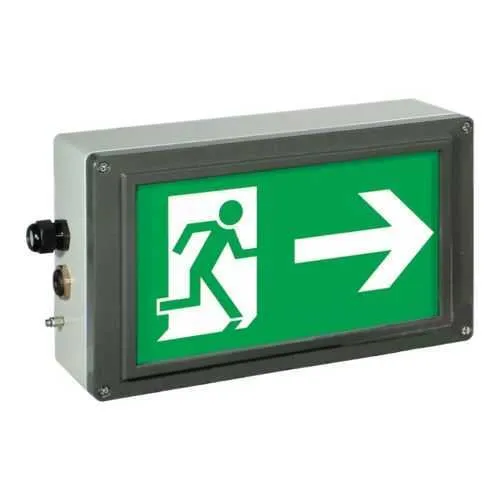

Eaton 12191021023 Ex-Lite V-CG-S exit sign - IECEx/ATEX

Hazardous-area rating with IECEx/ATEX approvals, Zone 1/21/22, and IP66 protection ensures the sign operates in explosive environments while keeping dust and water out. This compliance minimizes regulatory risk and unplanned downtime, especially during inspections and audits. It’s ideal for chemical plants, oil & gas facilities, and mining operations where safety messaging must stay visible under harsh conditions. LED technology and white letters provide bright, energy-efficient illumination with a long service life, reducing maintenance cycles and energy costs. In practice this means fewer lamp replacements and lower total cost of ownership, while still meeting ISO 7010 standards for pictograms and arrow direction. The V-CG-S design supports reliable visibility across varying ambient light conditions. Wide voltage range 220-254 Vac and 195-250 Vdc, 50/60 Hz, simplifies integration with existing power systems and emergency back-up configurations, reducing wiring complexity for quick retrofits in older facilities. The sign is mounted on a wall, using the included M25 glands and plug, streamlining installation in control rooms and hazardous-area enclosures. Monitoring module and cover with pictogram (arrow 6h) provide built-in diagnostics and standardized messaging, improving response times and overall safety. ISO 7010-compliant design supports safe evacuation procedures, while the gray aluminum housing resists corrosion in demanding environments. Dimensioned for industrial spaces, the sign measures 422 mm length, 230 mm width, 115 mm height, and weighs 6.4 kg, delivering a robust, field-serviceable unit that lowers project costs in large-scale deployments.
