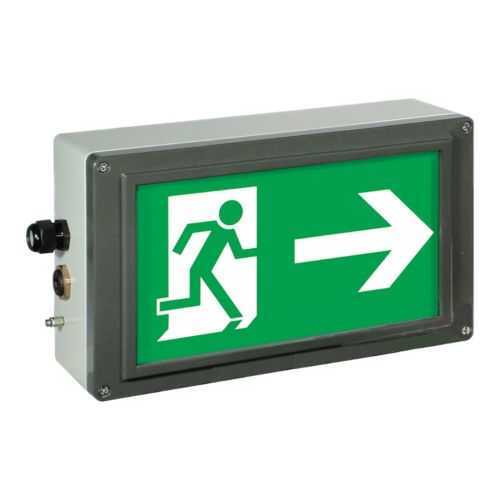

Eaton 12191021123 Ex-Lite V-CG-S exit sign - Zone 21/22
Part Number: 12191021123
Quick Summary
Ex-Lite V-CG-S exit sign delivers reliable emergency egress indication for hazardous-area facilities. In harsh sites, dust, moisture, and installation variability can compromise visibility and uptime when signage fails. It is IECEx/ATEX certified for Zone 1/21 and Zone 2/22, IP66 protected, and uses ISO 7010 compliant pictograms to support regulatory alignment. As a wall-mounted LED exit sign in Eaton’s Ex-Lite family, it delivers long-life illumination, robust corrosion resistance with an aluminum housing, and a dedicated monitoring module that aids preventive maintenance. This combination helps operations improve safety, reduce unscheduled downtime, and streamline procurement by standardizing on a rugged, compliant solution for hazardous locations.
Product Information
Extended Description
12191021123 Eaton: Eaton Crouse-Hinds series Ex-Lite V-CG-S exit sign, Arrowhead downwards, Gray, LED, White letter color, Aluminum alloy, Wall mount, Cover with pictogram (arrow 6h), monitoring module, 2 x M20 metal thread, ISO 7010, 220-254 Vac, 195-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite V-CG-S exit sign
Catalog Number
12191021123
EAN
4250959900210
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.4 kg
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 21 Zone 22 Zone 2 Zone 1
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Letter color
White
Trade size
2 x M20 metal thread
Voltage rating
220-254 Vac, 195-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 6h), monitoring module
Type
ISO 7010
Feature LED lamp type → Business Impact Increased energy efficiency and longer lifespan reduce maintenance cycles; Application suitable for continuous operation in harsh environments. Feature IP66 enclosure → Business Impact Superior dust and water ingress protection lowers vandalism risk and weather-related failure; Application ideal for outdoor and damp indoor locations. Feature Wide voltage and frequency range → Business Impact Flexible power sourcing minimizes site wiring constraints; Application simplifies retrofit in mixed voltage facilities. Feature 2 x M20 metal thread and wall mounting → Business Impact Easy, secure installation with versatile gland entry; Application compatible with standard conduit systems. Feature Cover with pictogram (arrow 6h) → Business Impact Clear, standards-compliant signaling reduces human error; Application supports ISO 7010 requirements for emergency signage. Feature Monitoring module → Business Impact Proactive fault detection and status alerts minimize downtime; Application enhances maintenance planning and reliability metrics.
Get a Quick Quote for a Eaton 12191021123
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191021123?
Enquire Now
FAQs
The Ex-Lite V-CG-S is designed for wall mounting with two M20 metal threaded entries, enabling secure gland connections for standard conduit runs. Its aluminum housing provides corrosion resistance in harsh areas, while the included pictogram cover ensures ISO 7010 compliance. For retrofit projects, confirm the site is correctly classified as Zone 1/21 or Zone 2/22 and wire per local electrical codes.
This exit sign uses LED illumination with a voltage rating of 220-254 Vac and 195-250 Vdc, operating at 50/60 Hz. The unit maintains reliable visibility with white lettering and an arrow-down orientation. It features IP66 ingress protection for robust dust and water resistance in demanding environments, supporting long service intervals and reduced maintenance costs.
Yes. The Ex-Lite V-CG-S carries IECEx/ATEX certification for Zone 1/21 and Zone 2/22, confirming suitability for hazardous locations. Its rugged IP66 enclosure and ISO 7010 compliant pictograms support compliant egress signaling in chemical plants, oil and gas facilities, and other hazardous environments where reliable visibility is critical.
The sign meets IECEx/ATEX standards for hazardous locations and Zone classifications, includes ISO 7010 pictograms for standardized messaging, and carries IP66 protection for harsh environments. It is designed to align with hazardous-area regulatory requirements, supporting rigorous documentation and inspection processes for industrial and offshore projects.
The integrated monitoring module provides fault detection and status reporting, enabling proactive maintenance rather than reactive replacements. This reduces unexpected outages, shortens repair times, and supports condition-based maintenance strategies. Coupled with long-life LED performance and rugged construction, the solution lowers lifecycle costs and improves overall asset availability in hazardous locations.
