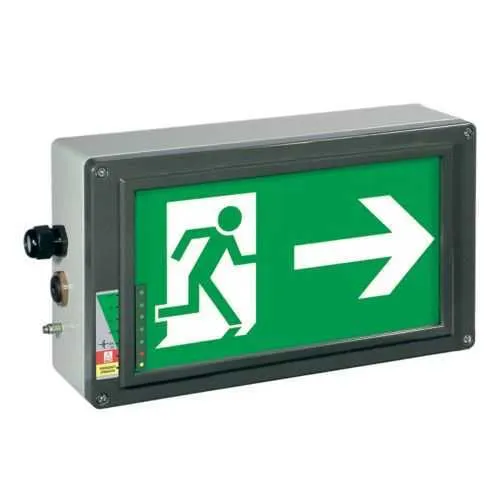

Eaton 12191031023 Ex-Lite N exit sign - IECEx/ATEX
Part Number: 12191031023
Quick Summary
Eaton's Ex-Lite N exit sign is a hazard-location LED exit sign designed for hazardous environments. In such facilities, sign reliability, maintenance downtime, and regulatory compliance during emergencies are ongoing challenges. The unit carries IECEx/ATEX certifications and IP66 protection, plus ISO 7010 pictograms, ensuring visibility across Zone 1, Zone 2, and Zones 21/22 installations. It is wall-mounted with an aluminum housing and a self-contained battery, simplifying retrofit and installation. For engineers and procurement teams, this design delivers predictable performance, reduced maintenance, and faster commissioning, while supporting global standards. The result is safer operations, improved uptime, and a clear path to regulatory compliance in demanding industrial settings.
Product Information
Extended Description
12191031023 Eaton: Eaton Crouse-Hinds series Ex-Lite N exit sign, Arrow down, Gray, LED, White letters, Aluminum alloy, Wall mount, Cover with pictogram (arrow 6h), battery, 1 x M25 plastic cable glands, 1 x M25 screw plug, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite N exit sign
Catalog Number
12191031023
EAN
4250959900241
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.7 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 22 Zone 21 Zone 1 Zone 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Letter color
White
Trade size
1 x M25 plastic cable glands, 1 x M25 screw plug
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 6h), self-contained battery system
Type
ISO 7010
Feature LED lamp with a self-contained battery delivers bright, legible exit indication even during mains loss. Business Impact: high reliability reduces downtime during emergencies. Application: hazardous location LED exit sign for Zone 1/2 and Zone 21/22 installations. Feature IP66 protection and aluminum alloy housing provide rugged durability in dust, water, and chemical environments. Business Impact: longer service life and reduced maintenance costs. Application: hazardous area lighting and wall-mounted exit signage. Feature voltage range 110-277 Vac and 110-250 Vdc with 50/60 Hz compatibility. Business Impact: seamless integration with existing electrical systems and emergency power supplies. Application: retrofit across facilities and new installations. Feature includes cover with pictogram arrow 6h and ISO 7010 designation; trade size M25 glands and plug. Business Impact: simplifies compliance and installation, supports secure gland sealing. Application: installation in hazardous locations. Feature material is aluminum alloy with gray housing finish; weight 6.7 kg and wall mounting capability. Business Impact: sturdy, compact footprint; easier handling during installation. Application: wall-mounted exit signs in industrial plants.
Get a Quick Quote for a Eaton 12191031023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191031023?
Enquire Now
FAQs
The Ex-Lite N is IECEx/ATEX certified and IP66 rated, designed for Zone 1 and Zone 2 as well as Zone 21/22 environments, providing reliable performance in hazardous locations.
The sign is configured for wall mounting and includes 1 x M25 plastic cable gland and 1 x M25 screw plug. It supports 110-277 Vac or 110-250 Vdc with 50/60 Hz, streamlining retrofit alongside existing emergency power systems.
It includes a pictogram cover with arrow (arrow 6h) and uses white lettering per ISO 7010 standards, ensuring standardized emergency signage across facilities.
The unit operates on 110-277 Vac or 110-250 Vdc at 50/60 Hz and features a self-contained battery, enabling continued illumination during mains loss in hazardous environments.
Industries such as chemical processing, oil and gas, mining, and offshore facilities benefit due to IECEx/ATEX certification, IP66 protection, and durable wall-mount design suited for harsh, hazardous locations.
