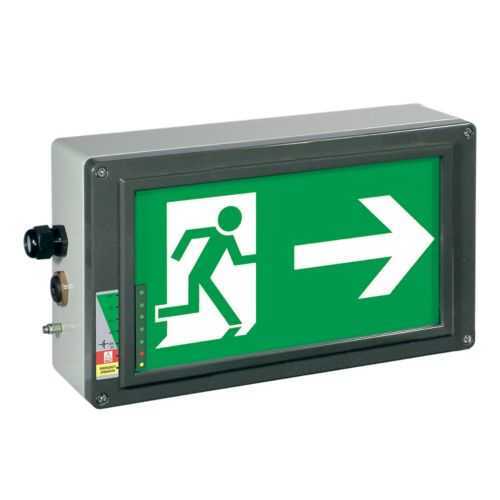

Eaton 12191031103 Ex-Lite N Exit Sign - IP66
Part Number: 12191031103
Quick Summary
The Ex-Lite N exit sign by Eaton provides reliable emergency egress indication for hazardous locations. In demanding plants, you need durable signage that withstands harsh environments, alarms, and maintenance delays. This unit carries IECEx/ATEX certifications and IP66 protection, suitable for Zone 21/22 and hazardous areas. Its wall-mount installation, self-contained battery system, and LED efficiency help cut energy use and maintenance costs. Designed for aluminum housing and gray finish, it supports 110-277 Vac and 110-250 Vdc input ranges, plus 2 x M20 entries for flexible wiring. Its pictogram cover (arrow 6h) and wall-mount capability streamline retrofits and new-build projects alike. This combination delivers faster installation and longer service life in challenging environments.
Product Information
Extended Description
12191031103 Eaton: Eaton Crouse-Hinds series Ex-Lite N exit sign, Arrowhead downwards, Gray, LED, White letter color, Aluminum alloy, Wall mount, Cover with pictogram (arrow 6h), battery, 2 x M20 metal thread, DIN 4844, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite N exit sign
Catalog Number
12191031103
EAN
4250217412677
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.7 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 21 Zone 1 Zone 22 Zone 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Letter color
White
Trade size
2 x M20 metal thread
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Housing finish color
Gray
Special features
Includes cover with pictogram (arrow 6h), self-contained battery system
Type
DIN 4844
Feature: LED illumination with a self-contained battery system delivers bright, reliable signaling even during mains loss. Business Impact: Reduces downtime during evacuations and lowers annual maintenance costs due to fewer lamp replacements. Application: Ideal for hazardous locations in chemical plants, refineries, and other Zone 21/22 environments where dependable egress signs are critical. Feature: Arrowhead downwards design with a pictogram cover (arrow 6h) improves visibility and regulatory compliance. Business Impact: Enhances evacuation accuracy and simplifies safety audits by meeting common pictogram standards. Application: Suitable for wall-mounted signage in industrial facilities with strict visibility requirements. Feature: Aluminum alloy housing with gray finish provides rugged protection and easy cleaning. Business Impact: Withstands dust, moisture, and chemical exposure, reducing enclosure degradation and replacement costs. Application: Outdoor or harsh-indoor installations in hazardous areas where durability matters. Feature: Wide voltage compatibility 110-277 Vac and 110-250 Vdc with 50/60 Hz support. Business Impact: Simplifies retrofits and new installations by accommodating standard industrial power systems. Application: Works with existing electrical infrastructure in petrochemical plants and offshore facilities. Feature: Wall mounting with 2 x M20 metal thread entries and DIN 4844 compatibility offers wiring flexibility. Business Impact: Faster, less disruptive installation with future cabling adaptability. Application: Retrofit and new-build projects in Zone 21/22 facilities requiring robust wiring options. Feature: IECEx/ATEX certification and IP66 ingress protection provide regulatory assurance and environmental resilience. Business Impact: Reduces compliance risk and maintenance overhead while ensuring long service life. Application: Suitable for chemical processing, mining, and other hazardous-location applications requiring certified signaling.
Get a Quick Quote for a Eaton 12191031103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191031103?
Enquire Now
FAQs
The unit is designed for wall mounting and provides 2 x M20 metal thread entries for wiring flexibility. It uses an aluminum alloy housing with DIN 4844 compliance and supports 110-277 Vac and 110-250 Vdc inputs, while maintaining IP66 ingress protection for hazardous locations. This configuration simplifies retrofits and new installations in Zone 21/22 environments.
The Ex-Lite N is IECEx/ATEX certified and rated IP66, covering hazardous locations in Zones 21, 22, 1, and 2. These certifications, combined with the unit’s sturdy enclosure and LED technology, provide regulatory assurance for chemical plants, mining sites, and offshore facilities needing compliant emergency signage.
The sign operates on 110-277 Vac or 110-250 Vdc with 50/60 Hz compatibility, enabling flexible integration with modern industrial power systems. This wide range supports retrofits and new builds without specialized power supplies, reducing total installation costs and complexity in hazardous-area facilities.
Yes. The Ex-Lite N features wall mounting, two M20 wiring entries, and a pictogram cover, all designed to ease retrofits. Its IP66 rating and IECEx/ATEX approvals ensure compliance with current hazardous-location requirements, while the LED system minimizes ongoing maintenance and power consumption during upgrades.
The LED technology, self-contained battery, and robust enclosure reduce lamp replacements and downtime, delivering lower maintenance costs and improved energy efficiency. Over time, this translates to a favorable ROI through reduced outages, extended service life, and simplified compliance documentation in hazardous environments.
