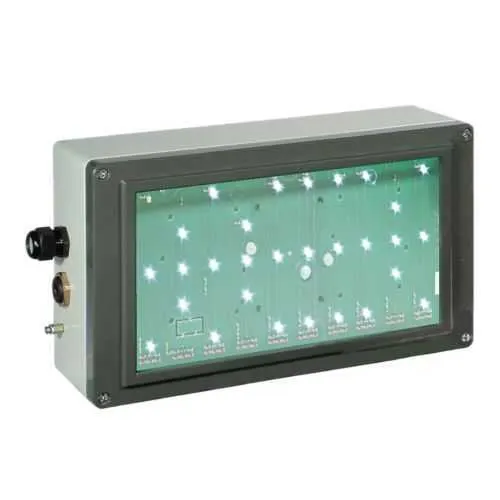

Eaton 12191031104 Ex-Lite N Exit Sign - ISO 7010
Part Number: 12191031104
Quick Summary
Eaton's Ex-Lite N exit sign is a rugged LED emergency device for hazardous locations. Maintenance teams struggle with signs that fail in harsh environments, causing unsafe conditions during power outages. It carries IECEx/ATEX certifications for Zone 1 and Zone 21/22, IP66 ingress protection, and ISO 7010 labeling to meet global standards. Combined with a wall-mount design and a self-contained battery, it reduces installation time and lifecycle costs. This model supports 110-277 Vac or 110-250 Vdc inputs and uses an aluminum housing for durable performance in demanding industrial settings, delivering reliable visibility when it matters most.
Product Information
Extended Description
12191031104 Eaton: Eaton Crouse-Hinds series Ex-Lite N exit sign, LED, Aluminum alloy, Wall mount, Includes cover, clear, without pictogram, battery, 2 x M20 metal thread, ISO 7010, 110-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite N exit sign
Catalog Number
12191031104
EAN
4250217412660
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.7 kg
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 21 Zone 1 Zone 2 Zone 22
Ingress protection (IP) ratings
IP66
Lamp type
LED
Trade size
2 x M20 metal thread
Voltage rating
110-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Material
Aluminum alloy
Special features
Includes cover, clear, without pictogram, self-contained battery system
Type
ISO 7010
Feature LED illumination provides high efficiency and long life, delivering lower energy costs and reduced maintenance for mission-critical signage in harsh environments. Business Impact: lower total cost of ownership and fewer field service visits; Application: continuous operation in production lines and external facilities. Feature Robust aluminum housing with IP66 protection guards against dust and water ingress, minimizing failure risk and downtime; Application: chemical plants, offshore rigs, and outdoor installations. Feature IECEx/ATEX hazardous-area ratings (Zone 1, Zone 21, Zone 22) ensures regulatory compliance and safe operation; Application: hazardous locations requiring strict safety standards. Feature Self-contained battery system sustains emergency lighting during power loss, improving occupant safety without reliance on external gear; Application: facilities with variable power reliability. Feature Wall-mount installation and 2 x M20 metal thread glands enable flexible cabling and fast retrofits; Application: quick deployment in new builds or upgrades. Feature ISO 7010 compliance and a clear cover (delivered without pictogram) offer standard signaling that can be customized per local requirements; Application: standardized signage across sites while allowing regional adaptations.
Get a Quick Quote for a Eaton 12191031104
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191031104?
Enquire Now
FAQs
Plan for wall-mount installation with a 422 mm long housing and 230 mm width, 115 mm height, and a weight of about 6.7 kg. Utilize the two M20 metal thread glands for cabling as required, and install the clear cover supplied. Ensure compliance with Zone 1/21/22 requirements and maintain IP66 protection in the chosen mounting position.
The Ex-Lite N carries IECEx/ATEX hazardous-location certifications suitable for Zone 1, Zone 21/22, and other classified locations. It complies with ISO 7010 pictogram standards and achieves IP66 ingress protection, supporting reliable operation in tough industrial environments while meeting global safety and signage requirements.
Yes. Its wall-mount form factor, dimensions (422 x 230 x 115 mm), and standard electrical input options (110-277 Vac, 110-250 Vdc) enable straightforward integration. The unit includes a self-contained battery and a clear cover, simplifying installation without needing additional emergency power components while meeting Zone 1/21/22 criteria.
LED technology delivers low power consumption and long life, reducing energy costs and maintenance cycles. The self-contained battery minimizes outage risk and eliminates the need for external battery packs, delivering higher reliability. Overall, expect lower downtime and extended intervals between servicing in demanding industrial environments.
ISO 7010 ensures standardized safety pictograms across facilities. This Ex-Lite N model ships with a clear cover and is designed to be used with ISO 7010 symbols, though it is delivered without a pictogram by default. Local regulations can dictate which pictograms to apply, enabling consistent, compliant signage across sites.
