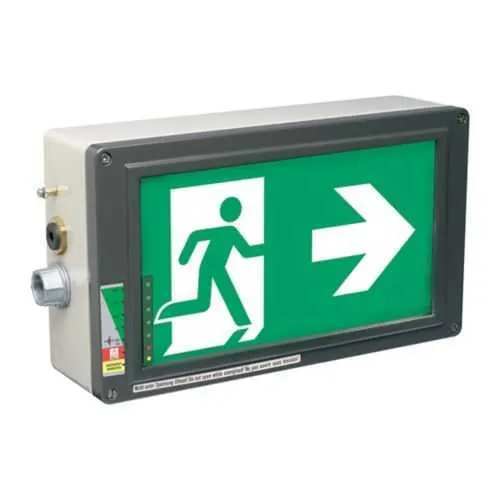

Eaton 12191130021 Ex-Lite ZER Exit Sign - IP66 Hazardous Location
Part Number: 12191130021
Quick Summary
Eaton 12191130021 Ex-Lite ZER exit sign is a rugged LED-based egress indicator designed for hazardous locations. In harsh facilities, operators need signage that stays visible during power fluctuations and washdowns. It carries IP66 protection and NEC/CEC compliance, with Hazardous/Classified Locations ratings for Class I, Zone 1 and Class II, Division 2. A nickel cadmium battery plus self-diagnostic and self-test features minimize routine maintenance while ensuring readiness. Wall-mount design, 3/4 inch entry, and dual voltage input simplify installation and support lower lifecycle costs. LED efficiency and long-life performance reduce energy and replacement costs. This combination helps facilities meet regulatory demands while keeping critical egress visible in challenging environments.
Product Information
Extended Description
12191130021 Eaton: Eaton Crouse-Hinds series Ex-Lite ZER exit sign, 3/4" entry, Arrowhead right, 50/60 Hz, LED, Aluminum alloy, Wall mount, With nickel cadmium battery, self-diagnostic, self-test, Cover with running man and arrow 3h, 120-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite ZER exit sign
Catalog Number
12191130021
EAN
4251510705039
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.7 kg
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 2 Class I, Zone 1 Class I, Division 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead right
Voltage rating
120-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Material
Aluminum alloy
Special features
With nickel cadmium battery, self-diagnostic, self-test
Type
Cover with running man and arrow 3h
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs catalog page
Feature: LED lamp type delivers low power consumption and extended life. Business impact: lowers energy costs and maintenance intervals, increasing system availability. Application: ideal for continuous operation in refineries and chemical plants where sign uptime is critical. Feature: Wide voltage compatibility 120-277 VAC and 110-250 VDC with 50/60 Hz input. Business impact: simplifies integration, reduces transformer requirements, and consolidates inventory. Application: retrofit projects and new builds across mixed electrical systems. Feature: IP66 enclosure in an aluminum alloy housing withstands dust, water spray, and washdowns. Business impact: enhances reliability in harsh plants, reducing corrosion risk and service calls. Application: oil & gas, mining, chemical processing, offshore platforms. Feature: Self-diagnostic and self-test with nickel cadmium battery. Business impact: enables proactive maintenance, faster fault isolation, and reduced unplanned downtime. Application: regulated facilities requiring regular verification of emergency equipment. Feature: Exit sign designation Arrowhead right, 3h runtime and 3/4 inch entry for conduit. Business impact: clear egress indication and installation flexibility in tight spaces. Application: wall-mounted installations near exit routes in hazardous areas. Feature: Certifications NEC/CEC, Hazardous/Classified Locations ratings Class I/Zone 1 and Class II/Division 2, plus IP66. Business impact: regulatory alignment and safe operation, easing procurement audits. Application: manufacturing, petrochemical, mining environments.
Get a Quick Quote for a Eaton 12191130021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191130021?
Enquire Now
FAQs
For Class I, Zone 1 locations the Ex-Lite ZER is wall mounted and uses a 3/4" entry. Its IP66 rating ensures protection against dust and water ingress in harsh environments. Use appropriate mounting provisions and conduit connections to maintain the integrity of the hazardous area installation while ensuring clear, unobstructed visibility of the running-man designation.
Reliability is aided by LED illumination with long life, a nickel cadmium battery, and built-in self-diagnostic and self-test capabilities. These features enable early fault detection, reduce routine checks, and minimize unplanned downtime. The IP66 enclosure further guards against dust, moisture, and washdowns common in chemical and oil & gas facilities.
Yes. The Ex-Lite ZER supports dual voltage input: 120-277 VAC and 110-250 VDC, with a 50/60 Hz frequency range. This compatibility simplifies installation across different power systems, reduces the need for additional transformers, and helps maintain consistent emergency lighting performance in mixed environments.
The unit carries NEC/CEC standards compliance and Hazardous/Classified Locations ratings (Class I, Zone 1; Class II, Division 2). It also features IP66 ingress protection. These certifications support regulatory adherence, safety audits, and procurement approvals in industries like oil & gas, mining, and chemical processing.
The self-diagnostic and self-test functions enable proactive maintenance by pinpointing faults before failure, reducing unplanned downtime and service calls. Combined with long-life LED illumination and a nickel cadmium battery, this reduces replacement cycles and maintenance labor costs, delivering a favorable return on investment in demanding hazardous environments.
