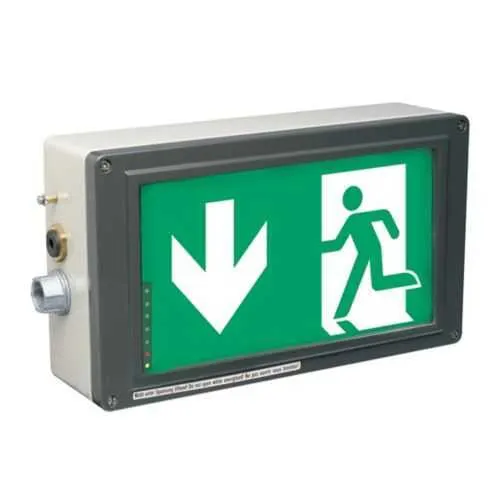

Eaton Ex-Lite ZER Exit Sign 12191130023 - IP66 Hazardous
Part Number: 12191130023
Quick Summary
Ex-Lite ZER Exit Sign by Eaton delivers reliable, code-compliant wayfinding lighting for hazardous locations. In harsh environments, traditional signs often fail due to weak back-up power, moisture ingress, or difficult installation. This model carries IP66 ingress protection and NEC/CEC certifications, plus hazardous area ratings including Class I Zone 1 and Division 2 for dependable operation. With LED efficiency and a nickel cadmium battery, it minimizes maintenance while maximizing uptime. Its wall-mount design and 3/4" entry simplify retrofits and new installs alike, delivering strong business value through lower energy use, reduced maintenance cycles, and compliant emergency signaling across demanding facilities.
Product Information
Extended Description
12191130023 Eaton: Eaton Crouse-Hinds series Ex-Lite ZER exit sign, 3/4" entry, Arrow downwards, 50/60 Hz, LED, Aluminum alloy, Wall mount, With nickel cadmium battery, self-diagnostic, self-test, Cover with running man and arrow 6h, 120-277 Vac, 110-250 Vdc
Product Name
Eaton's Crouse-Hinds series Ex-Lite ZER exit sign
Catalog Number
12191130023
EAN
4251510705046
Product Length/Depth
422 mm
Product Height
115 mm
Product Width
230 mm
Product Weight
6.7 kg
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class II, Division 2
Ingress protection (IP) ratings
IP66
Lamp type
LED
Exit sign designation
Arrowhead downwards
Voltage rating
120-277 Vac, 110-250 Vdc
Frequency rating
50/60 Hz
Mounting
Wall
Entry size
3/4"
Material
Aluminum alloy
Special features
With nickel cadmium battery, self-diagnostic, self-test
Type
Cover with running man and arrow 6h
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Ex-Lite Hazardous Area LED Exit Signs catalog page
The Ex-Lite ZER LED exit sign uses high-efficiency LED illumination to reduce energy consumption and extend service life, delivering measurable cost savings and consistent visibility for occupants. In parallel, the embedded self-diagnostic and self-test capabilities provide continuous health monitoring, lowering maintenance intervals and enabling rapid fault reporting to facilities teams or OEM control systems. Its nickel cadmium battery ensures guaranteed backup during power outages, supporting a 6-hour emergency run-time that aligns with life-safety requirements and regulatory expectations. Rugged aluminum alloy housing, IP66 protection, and wall-mount installation offer robust performance in dust, water, and chemical environments, enabling straightforward integration with 120-277 Vac or 110-250 Vdc power supplies across mixed facility footprints. The 3/4" entry and compact footprint simplify conduit planning and panelboard connections, while 50/60 Hz compatibility supports global deployments. This combination addresses common objections about reliability, maintenance burden, and compliance costs in hazardous-location lighting projects.
Get a Quick Quote for a Eaton 12191130023
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12191130023?
Enquire Now
FAQs
The unit is designed for wall mounting with a 3/4 inch entry, housed in an aluminum alloy enclosure rated IP66. It supports NEC/CEC compliance and hazardous area classifications (Class I Zone 1, Division 2; Class II Division 2), making retrofits and new builds straightforward in refineries, chemical plants, and offshore facilities.
The Ex-Lite ZER supports both AC and DC inputs: 120-277 Vac and 110-250 Vdc, with a 50/60 Hz frequency rating. This broad input range allows seamless integration with existing electrical systems and power supplies across global facilities without multiple variants.
Self-diagnostic and self-test capabilities continuously monitor LED health, battery status, and circuit integrity, generating fault reports and reducing unscheduled maintenance. This results in higher uptime, faster fault resolution, and easier compliance documentation during inspections.
Yes. It carries NEC/CEC compliance and hazardous location ratings including Class I Zone 1 and Class I Division 2, as well as Class II Division 2. The IP66 rating provides robust protection against dust and water jets, making it suitable for demanding industrial environments.
The unit uses a nickel cadmium battery with a built-in 6-hour emergency run-time. This backup ensures occupants can evacuate safely during power interruptions, aligning with life-safety requirements while minimizing recharging downtime and servicing needs.
