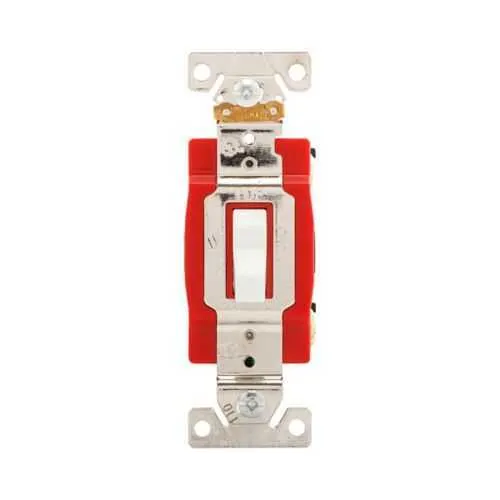

Eaton 1221W Toggle Switch - UL/cUL Listed 20A
Part Number: 1221W
Quick Summary
The Eaton 1221W toggle switch provides reliable control for industrial panels. Many panel builds struggle with wiring access, flush mounting, and space constraints. UL, cULus Listed and NOM certifications support safe, compliant installations in North American environments. For OEMs and panel builders, this switch enables quick, repeatable installs with back and side wiring and a flush-mount design, helping reduce commissioning time and maintenance downtime while delivering consistent performance in harsh industrial settings.
Product Information
Extended Description
1221W Eaton: Eaton construction grade toggle switch, #14-10 AWG, 20A, Flush, 120/277V, Back and side, Screw, White, Single-Pole, Single-Pole, Brass, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1221W
UPC
032664735684
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
UL cULus Listed NOM
Amperage Rating
20A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Flush
Color
White
Material
Polycarbonate
Terminal enclosure material
Brass
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Single-pole
Switch type
Single-pole
Type
Toggle switch
Amperage, voltage, and rugged construction: The 1221W is rated for 20A at 120/277 V, delivering dependable power switching for heavy machinery and equipment. This translates to improved equipment uptime and safer control release in demanding environments. The back and side wiring option provides installer flexibility in tight enclosures, accelerating panel wiring and reducing field error rates. Flush mounting offers a clean front profile, easier enclosure integration, and reduced exposure to contaminants. Polycarbonate housing with brass terminal enclosure delivers durable operation, enhanced resistance to impact, and reliable contact integrity even in damp or dusty facilities. Allowable wire size of #14-10 AWG and a torque rating of 14 lbf-inch ensure solid, vibration-resistant terminations. The combination of single-pole configuration and screw terminals supports straightforward maintenance and rapid field replacement, lowering total cost of ownership. Construction-grade design supports high-cycle OEM applications and long service life in industrial control panels.
Get a Quick Quote for a Eaton 1221W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1221W?
Enquire Now
FAQs
The 1221W supports back and side wiring with screw terminals and is designed for flush mounting in industrial panels. It accepts #14-10 AWG conductors, enabling flexible installation in tight enclosures while maintaining secure, code-compliant terminations. This combination reduces wiring complexity and helps installers achieve clean, serviceable panel layouts.
The switch is rated for 20A at 120/277 V, suitable for a wide range of industrial loads. The torque rating is 14 lbf-in, which ensures reliable actuation without over-tightening terminals. These specs support stable switching under common industrial duty cycles and reduce contact wear over time.
Ideal for construction-grade industrial panels, OEM equipment, and machinery control enclosures, the 1221W is well-suited to manufacturing, processing, and packaging lines where robust actuation, dependable wiring, and compact front-mount design are essential. Its single-pole configuration simplifies control circuits and is widely compatible with standard industrial wiring practices.
The 1221W carries UL and cULus listing along with NOM certification, signaling compliance with North American safety and performance standards. These certifications reduce regulatory risk, simplify customer approvals, and support safe operation in diverse facilities, including those requiring stringent electrical protection and control components.
With durable polycarbonate housing and brass terminal enclosure, the switch resists environmental wear and maintains reliable contact performance in dirty or humid environments. The back and side wiring plus flush mount simplify field maintenance and replacements, minimizing downtime. Over the component’s life, these features translate to lower maintenance costs and a faster time-to-market for panel upgrades or new builds.
