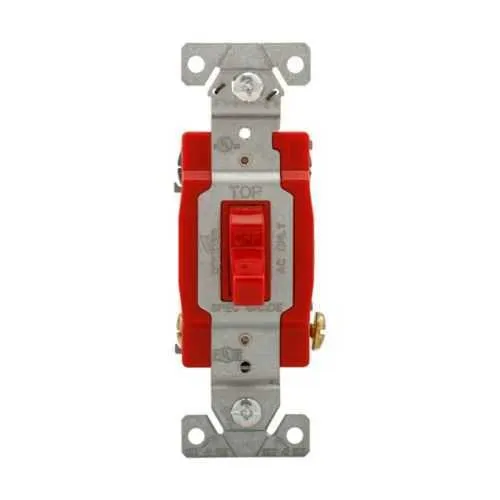

Eaton 1222RD Toggle Switch - cULus Listed
Part Number: 1222RD
Quick Summary
The Eaton 1222RD Toggle Switch provides rugged power control for industrial equipment in demanding environments. Engineers often grapple with crowded panels, complex wiring, and the need for reliable operation in vibration-prone settings. This unit carries cULus Listed and NOM certifications, plus a 120/277 V rating and 20 A capacity for safe, compliant control. Its construction-grade design supports flush mounting and straightforward terminations, helping minimize panel intrusion and installation time. With back and side wiring and a screw-terminal interface, the 1222RD delivers a practical balance of performance and ease of service, delivering real business value through reduced maintenance and faster project timelines.
Product Information
Extended Description
1222RD Eaton: Eaton construction grade toggle switch, #14-10 AWG, 20A, Flush, 120/277V, Back and side, Screw, Red, Double-Pole, Dual-pole, Brass, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1222RD
UPC
032664735745
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
cULus Listed NOM
Amperage Rating
20A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Flush
Color
Red
Material
Polycarbonate
Terminal enclosure material
Brass
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Two-pole
Switch type
Two-pole
Type
Toggle switch
Feature → Business Impact → Application: 20A electrical rating ensures capable handling of mid-range industrial loads, reducing the need for multiple devices in a single circuit and lowering panel complexity. This translates to shorter wiring runs and a more compact control footprint in machine panels, improving reliability in manufacturing lines and minimizing downtime. Feature → Application → Industry relevance: Back and side wiring with screw connectors supports flexible termination in cramped panels while maintaining secure, vibration-resistant connections, ideal for conveyor controls and factory automation where movement and noise are common. Feature → Application → Compliance: Flush mounting and a two-pole design deliver a clean panel appearance and consistent actuation force, enabling safer operation in commercial and industrial environments. Feature → ROI → Maintenance: Polycarbonate body with brass terminal enclosure provides robust, long-life performance, reducing spares inventory and maintenance costs in rugged environments. Feature → Compatibility → Installation: Accepts #14-10 AWG conductors, aligning with standard field wiring practices for control circuits and minimizing rework during panel upgrades.
Get a Quick Quote for a Eaton 1222RD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1222RD?
Enquire Now
FAQs
For proper installation, plan flush mounting to minimize panel intrusion and ensure a clean front panel. Use back or side wiring with screw terminals and torque to 14 lbf-in to secure conductors. compatible with #14-10 AWG conductors, and observe the two-pole, 120/277 V, 20 A rating to match the control circuit requirements. This setup reduces wiring errors and improves vibration resistance in industrial environments.
The 1222RD uses a brass terminal enclosure and a polycarbonate housing, delivering robust electrical contact and structural integrity under vibration. Screw terminations provide reliable connections that resist loosening, while the flush-mount design keeps the switch firmly seated. This combination is well-suited for conveyors, presses, and other machinery where equipment experiences continuous movement.
Yes. The 1222RD lists Allowable wire size as #14-10 AWG, and it employs screw terminals for secure termination. This compatibility simplifies field wiring, reduces the risk of over- or under-sized conductors, and supports standardized control-panel wiring practices in industrial facilities.
The switch is cULus Listed and NOM certified, indicating compliance with UL and Mexican standards for electrical equipment. This enhances safety assurance, simplifies acceptance in regulated facilities, and supports cross-border manufacturing or installation projects where compliance documentation is required for panel approvals.
The 1222RD combines reliable electrical performance with straightforward installation, reducing commissioning time and field rework. Its durable polycarbonate/brass construction lowers maintenance costs and minimizes spare parts needs. The compact, flush-mount design frees panel space, enabling denser control architectures and faster deployment for machinery such as material handling, packaging lines, and automated equipment.
