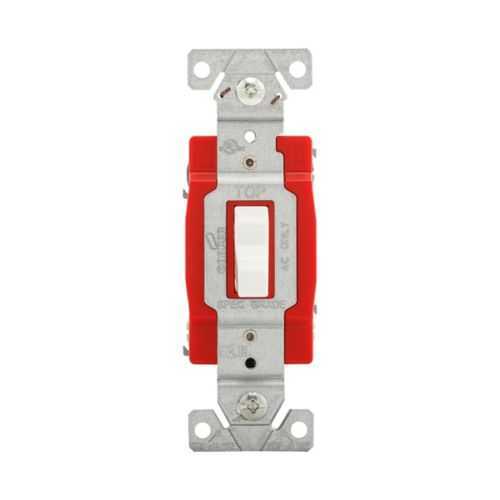

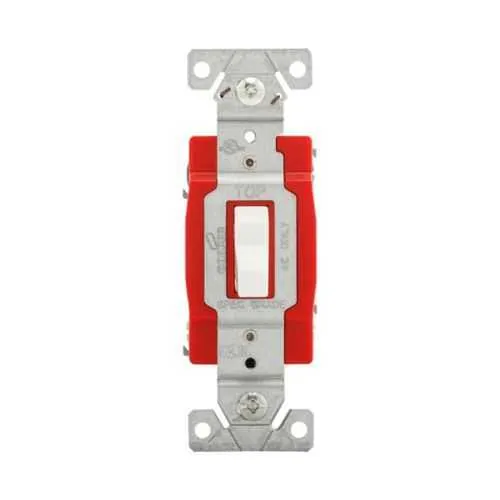

Eaton 1222W Toggle Switch - cULus Listed, NOM
Part Number: 1222W
Quick Summary
The Eaton 1222W toggle switch is a rugged industrial control device for reliable on/off operation in panels. Manufacturers often struggle with flush mounting and wire routing, risking miswiring and service downtime. This model carries cULus Listed and NOM certifications to support North American and Mexican compliance, while its 20A rating at 120/277V fits common control circuits. Coupled with back and side wiring and a durable polycarbonate body, it delivers quick installation and long-term cost savings for industrial panels. This combination makes it a dependable choice for high-demand environments where panel space and wiring efficiency matter, while supporting robust maintenance practices and regulatory compliance.
Product Information
Extended Description
1222W Eaton: Eaton construction grade toggle switch, #14-10 AWG, 20A, Industrial, Flush mounted, 120/277V, Back and side, Screw, White, Double-Pole, Dual-pole, Brass, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1222W
UPC
032664735769
Product Length/Depth
0.87 in
Product Height
4.19 in
Product Width
1.38 in
Product Weight
0.12 lb
Certifications
cULus Listed NOM
Amperage Rating
20A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Flush
Color
White
Material
Polycarbonate
Terminal enclosure material
Brass
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Two-pole
Switch type
Two-pole
Type
Toggle switch
Feature → Back and side wiring supports flexible field termination, reducing panel rework and speeding installation. Business Impact → Improves wiring efficiency and limits downtime in new builds or retrofits. Application → Industrial control panels, machine enclosures, and utility equipment that require clean flush mounting and reliable connections. Feature → 20A, 120/277V electrical rating provides ample headroom for common control circuits. Business Impact → Enables safe, single-device control for motors and actuators, reducing the need for parallel switches. Application → Conveyor systems, pumps, and process equipment in manufacturing lines. Feature → Two-pole, screw-type terminals with brass enclosure. Business Impact → Durable, vibration-resistant connections that resist loosening in harsh environments. Application → Heavy-use panels in manufacturing and packaging lines. Feature → Polycarbonate housing and white finish. Business Impact → Impact resistance and long service life in dusty or high-contrast industrial environments; easy identification in control cabinets. Application → Food and beverage processing, automotive assembly, and OEM equipment. Feature → Flush mounting and #14-10 AWG allowable wire size. Business Impact → Sleek panel appearance with standardized wiring practices; simplifies field wiring and reduces installation time. Application → Any panel where neat integration and standard wire sizes are required. Feature → Certifications cULus Listed and NOM. Business Impact → Regulatory alignment for North American and Mexican markets, supporting compliance documentation. Application → Electrical protection and circuit control in regulated industrial facilities.
Get a Quick Quote for a Eaton 1222W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1222W?
Enquire Now
FAQs
The 1222W supports back and side wiring with #14-10 AWG conductors, and it mounts flush in industrial panels. This wiring method simplifies terminations and reduces strain on connections, improving reliability in control cabinets.
Rated for 20A at 120/277V with a two-pole design and screw terminals, the switch handles common control circuits and small motors. The 14 lbf-inch torque rating helps ensure secure actuation without over-tightening, aligning with standard maintenance practices.
Yes. With industrial-grade construction, flush mounting, and 20A/120-277V capability, it’s ideal for control panels, conveyor systems, and processing equipment where reliability and clean panel aesthetics matter.
The switch is cULus Listed and NOM certified, supporting compliance for North American and Mexican markets. These certifications help simplify regulatory approvals and supplier qualification processes for regulated facilities.
Durable polycarbonate construction with brass terminals reduces wear from vibration and reduces frequency of field maintenance. The robust torque rating and secure wiring also lower the risk of loose connections, contributing to lower downtime and improved ROI over panel life.
