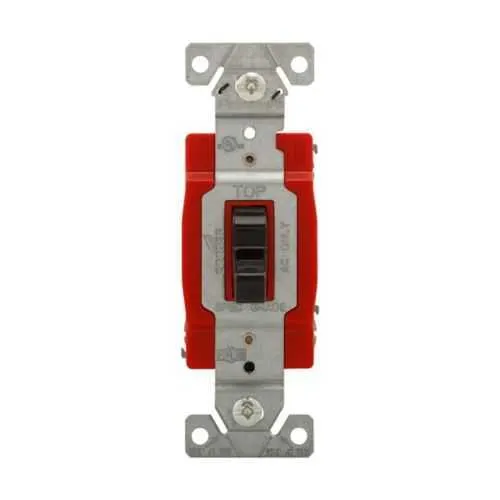

Eaton 1223BK Toggle Switch - cULus Listed NOM
Part Number: 1223BK
Quick Summary
Eaton 1223BK Toggle Switch is a construction-grade switch designed for industrial control panels and equipment wiring. Engineers often grapple with reliable actuation and safe, clean wiring in harsh environments, and a compact, rugged switch can simplify panel builds. It is cULus Listed and NOM certified, signaling compliance for industrial applications and helping you meet safety and procurement requirements. With back and side wiring, a wall-mount, and a durable polycarbonate body, this switch delivers straightforward installation and long service life. By combining robust electrical ratings with compact packaging, it supports efficient, compliant control architectures and reduces downtime in manufacturing and facilities environments. Users appreciate its compatibility with #14-10 AWG conductors and its 120/277 V operation, making it a versatile choice across machinery and facilities.
Product Information
Extended Description
1223BK Eaton: Eaton construction grade toggle switch, #14-10 AWG, 20A, Wall, 120/277V, Back and side, Screw, Black, Three-Way, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1223BK
UPC
032664735790
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
cULus Listed NOM
Amperage Rating
20A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Wall
Color
Black
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Two-pole
Number of ways
Three-way
Switch type
Three-way
Type
Toggle switch
Feature: Construction-grade toggle switch with polycarbonate housing provides rugged durability in demanding environments. Business Impact: This build quality reduces wear, minimizes maintenance costs, and extends service life in harsh factory settings. Application: Ideal for industrial control cabinets, panel enclosures, and equipment wiring. Feature: Electrical rating of 20A at 120/277V supports common industrial loads. Business Impact: Enables safe, code-compliant operation for motors and lighting circuits. Application: Suitable for control circuits in manufacturing lines and facility infrastructure. Feature: Back and side wiring with #14-10 AWG conductors. Business Impact: Simplifies field wiring, reduces terminal crowding, and facilitates quick field changes. Application: Wiring in panel boards and control enclosures. Feature: Wall mounting and screw terminals. Business Impact: Easy retrofit into existing installations and secure panel mounting. Application: Wall-mounted panels in production lines and equipment cages. Feature: Two-pole, three-way configuration. Business Impact: Enables complex switching sequences while maintaining compact form. Application: Three-way control in equipment where start/stop or multi-position control is required. Feature: Certifications include cULus Listed NOM. Business Impact: Ensures regulatory compliance and safety assurances for industrial and commercial installations. Application: Preferred for regulated environments and procurement criteria.
Get a Quick Quote for a Eaton 1223BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1223BK?
Enquire Now
FAQs
The 1223BK supports back and side wiring with screw terminals. Use #14-10 AWG conductors, prepare clean conductor ends, insert fully into the chosen terminal, and tighten to the 14 in-lbf torque rating to ensure secure actuation and reliable performance in industrial panels.
The switch is rated for 20A at 120/277V, suitable for typical industrial loads including motors and lighting circuits. The three-way/switch configuration enables versatile control architectures in control panels and machine enclosures while maintaining safe, code-compliant operation.
Yes. The 1223BK is a two-pole, three-way toggle switch with screw connections and back-side wiring, designed for complex control sequences in industrial equipment. Its rugged polycarbonate body and wall-mount capability support reliable operation in harsh environments.
The 1223BK is cULus Listed and NOM certified, indicating compliance with recognized safety standards for industrial and commercial installations. This dual certification supports procurement and regulatory confidence in regulated facilities and machinery.
Installation is straightforward thanks to back and side wiring and wall mounting, reducing labor time during panel builds. The robust polycarbonate housing minimizes maintenance and replacement costs, delivering a lower total cost of ownership in demanding industrial environments.
