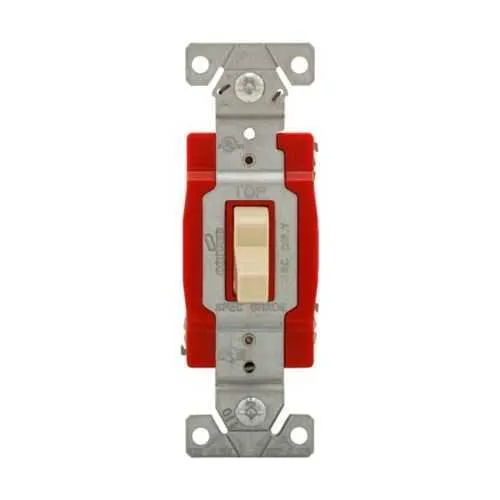

Eaton 1223V Toggle Switch - cULus Listed NOM Industrial
Part Number: 1223V
Quick Summary
The Eaton 1223V Toggle Switch is designed to control industrial equipment with a robust on-off action for wall-mounted panels. This model addresses common panel-wiring challenges by supporting back and side wiring for secure connections and faster field terminations. It carries key approvals, including cULus Listed and NOM, signaling safety and regulatory acceptance for North American and international installations. With its polycarbonate construction and three-way switching capability, it delivers durable performance in demanding environments, while the 120/277V rating covers a wide range of control circuits. Industrial buyers gain value from a construction-grade solution that combines reliability, ease of installation, and compatibility with #14-10 AWG conductors.
Product Information
Extended Description
1223V Eaton: Eaton construction grade toggle switch, #14-10 AWG, 20A, Wall, 120/277V, Back and side, Screw, Ivory, Three-Way, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1223V
UPC
032664735837
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
cULus Listed NOM
Amperage Rating
20A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Wall
Color
Ivory
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Two-pole
Number of ways
Three-way
Switch type
Three-way
Type
Toggle switch
Feature: Three-way, two-pole toggle switch configuration. Business Impact: Enables complex control schemes in a single device, reducing component count and wiring complexity. Application: Ideal for machine control panels requiring multiple start/stop and interlock circuits. Feature: Back and side wiring capability. Business Impact: Simplifies terminations, lowers commissioning time, and improves field reliability. Application: Shortens panel wiring hours in assembly lines and serviceable equipment. Feature: 20A, 120/277V electrical rating. Business Impact: Supports common industrial loads with ample margin, improving safety margins and reducing parts proliferation. Application: Motor controllers, lighting, and control circuits in harsh environments. Feature: Polycarbonate housing in ivory with wall-mount. Business Impact: Combines high impact resistance with clear visibility and easy labeling in crowded control rooms. Application: Harsh manufacturing floors, food & beverage lines, and packaging equipment. Feature: #14-10 AWG allowable wire size and screw connectors. Business Impact: Facilitates standard field wiring without adapters, lowering inventory variety. Application: Typical industrial field wiring in control panels and switchgear. Feature: 14 lbf-inch torque rating. Business Impact: Ensures secure mechanical actuation and long-term reliability under vibration. Application: Repeated cycling in automated lines and packaging machines. Feature: Construction-grade durability for industrial use. Business Impact: Reduces maintenance cost and downtime due to switch failure. Application: Critical control points in assembly lines and process equipment.
Get a Quick Quote for a Eaton 1223V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1223V?
Enquire Now
FAQs
The 1223V supports back and side wiring and accepts #14-10 AWG conductors, making it ideal for industrial panels. Use the screw terminals to secure conductors, verify a 14 lbf-in torque on mounting screws, and ensure the device is mounted on a wall profile. This setup simplifies field wiring and reduces re-termination risk during upgrades.
The 1223V is a two-pole, three-way toggle switch rated at 20A and 120/277V, enabling multiple control paths within a single device. Its construction-grade polycarbonate body, ivory color for high visibility, and wall-mount design provide durable operation in harsh environments while keeping panel layouts compact and wiring organized.
Yes, the 1223V is cULus Listed with NOM certifications, indicating compliance with North American electrical safety standards and performance criteria. This reduces regulatory risk for panel builders and end users, supports commissioning without extensive rework, and aligns with common industrial procurement requirements.
Absolutely. The 1223V accepts #14-10 AWG conductors via screw terminals, which simplifies field wiring. The installation torque is 14 lbf-in for the mounting hardware, ensuring secure actuation and resistance to vibration in industrial settings while maintaining proper conductor clamping.
As a construction-grade, wall-mounted toggle switch with durable polycarbonate housing, it offers superior impact resistance and longer lifecycle in demanding environments. The combination of back/side wiring, wide conductor compatibility, and reliable 20A/120–277V rating reduces downtime, lowers replacement costs, and improves control reliability in production lines.
