Eaton 1224LA Toggle Switch - Four-Way UL 6241-05
Part Number: 1224LA
Quick Summary
The Eaton 1224LA toggle switch is a rugged construction-grade device designed for industrial control panels and wall-mounted installations. Engineers often confront reliability and wiring challenges in harsh environments, where back and side wiring must remain secure over time. This model carries UL Federal Specification Classification 6241-05, and is designed for 120/277V operation with a 20A rating, ensuring safety and compliance in demanding settings. Built for industrial applications, it supports efficient installation in wall-mounted panels and is compatible with #14-10 AWG wire, providing a pathway to lower maintenance costs and greater uptime for critical processes.
Product Information
Extended Description

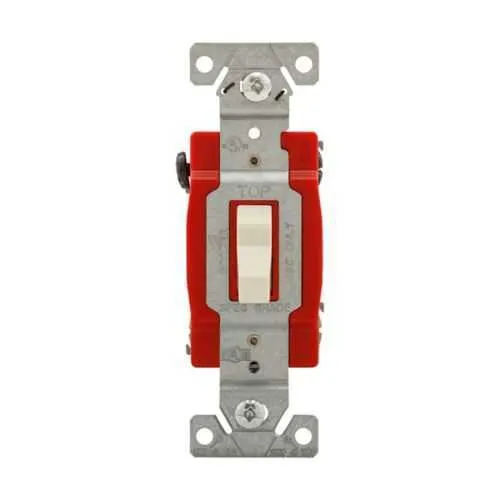

1224LA Eaton: Eaton construction grade toggle switch, #14-10 AWG, 20A, Industrial, Wall, 120/277V, Back and side, Screw, Light almond, Four-way, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1224LA
UPC
032664735899
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
UL Federal Specification Classification 6241 05
Amperage Rating
20A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Wall
Color
Light almond
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Two-pole
Number of ways
Four-way
Switch type
Four-way
Type
Toggle switch
Feature: Construction-grade durability through polycarbonate housing → Business Impact: Enhanced impact resistance and long service life in factory and field conditions → Application: Ideal for rugged industrial control panels and wall-mount installations. Feature: Back and side wiring with screw terminals → Business Impact: Faster, more flexible field wiring and reduced installation time → Application: Common in industrial control wiring where space is constrained and reliability matters. Feature: 120/277 V, 20 A rating with 14 lbf-inch torque → Business Impact: Safe, dependable switching under standard industrial loads with preserved terminal integrity → Application: Process controls, lighting control and equipment interlocks. Feature: Two-pole, four-way configuration → Business Impact: Expanded control options and simplified circuit design → Application: Four-way switching networks in heavy equipment and automation systems. Feature: Light almond polycarbonate body and wall-mount capability → Business Impact: Aesthetic and durable integration into control cabinets and field enclosures → Application: Wall-mounted control solutions in manufacturing and facilities management.
