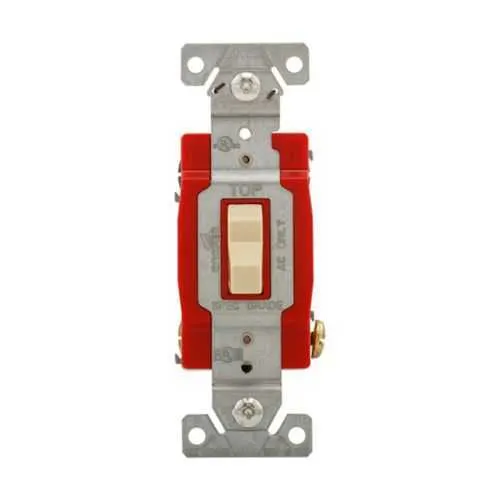

Eaton 1224V Toggle Switch - UL 6241 05
Part Number: 1224V
Quick Summary
Eaton 1224V toggle switch is designed to deliver reliable control for industrial equipment and 120/277V circuits. Customers frequently wrestle with incompatible wiring methods and limited four-way switching options in dense control panels. This product carries UL listing and meets Federal Specification 6241-05, ensuring safety and procurement consistency. For system integrators and maintenance teams, the combination of wall-mount installation, back and side wiring, and standard #14-10 AWG leads translates to faster installs, fewer field modifications, and lower total cost of ownership. Its ivory polycarbonate body resists impact in busy environments, while the four-way, two-pole design supports complex control schemes.
Product Information
Extended Description
1224V Eaton: Eaton construction grade toggle switch, #14-10 AWG, 20A, Wall, 120/277V, Back and side, Screw, Ivory, Four-way, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1224V
UPC
032664735912
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
UL Federal Specification Classification 6241 05
Amperage Rating
20A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Wall
Color
Ivory
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Two-pole
Number of ways
Four-way
Switch type
Four-way
Type
Toggle switch
Feature: Construction-grade polycarbonate housing delivers impact resistance in busy industrial environments. Business impact: This reduces field replacements and downtime, extending the switch’s service life. Application: Well suited for rugged control panels in manufacturing and processing facilities. Feature: Back and side wiring with #14-10 AWG terminals. Business impact: Simplifies field wiring, reduces harness complexity, and enables faster terminations. Application: Suitable for standard feeders in 120/277V control circuits. Feature: Wall-mount installation and screw-type connectors. Business impact: Streamlines installation, improves accessibility for maintenance, and minimizes panel depth requirements. Application: Convenient for wall-mounted operator stations and service panels. Feature: Four-way, two-pole switch with 20A rating at 120/277V. Business impact: Enables versatile multi-location control while meeting common load needs; reduces need for extra devices. Application: Industrial machinery and process equipment. Feature: UL listing and Federal Specification 6241-05 compliance. Business impact: Simplifies procurement, ensures regulatory alignment, and reduces risk of non-compliant components. Application: Preferred for compliance-driven projects and regulated facilities. Feature: Ivory color and polycarbonate material for durability and visibility. Business impact: Aids panel identification and resists wear in busy environments. Application: Electrical distribution and control panels in industrial settings.
Get a Quick Quote for a Eaton 1224V
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1224V?
Enquire Now
FAQs
For reliable wall-mounted installation, verify the 20A rating aligns with the circuit load and use the back and side wiring method with #14-10 AWG conductors. Secure the switch to a rigid wall box or panel surface, tighten the screws to the recommended torque, and confirm correct polarity for multi-location four-way configurations. This minimizes heat buildup and ensures consistent operation.
Yes. The 1224V is rated for 120/277 V and supports back and side wiring with #14-10 AWG conductors. This wiring flexibility simplifies field terminations and accommodates common industrial feeders, reducing wiring time and panel congestion while maintaining safe, compliant connections.
In a four-way configuration, treat the device as part of a multi-location control circuit. Connect the line and load conductors to the appropriate terminals according to Eaton’s wiring diagram, ensuring travelers are routed through the four-way positions. Verify that the circuit remains within the 20A rating and use the back or side terminals as specified.
The Eaton 1224V is UL-listed and conforms to Federal Specification 6241-05, which supports procurement compliance and reduces regulatory risk. These certifications help justify performance and safety standards to stakeholders and simplify vendor qualification in regulated facilities.
With a durable polycarbonate body and screw-type connectors, maintenance needs are minimal beyond periodic visual inspection and torque verification. Plan for routine checks on wiring terminations, ensure the device remains within its electrical ratings, and replace promptly if signs of wear, arcing, or physical damage appear to maintain reliable operation.
