Eaton 1224W Toggle Switch - UL 6241 05 Certified
Part Number: 1224W
Quick Summary
The Eaton 1224W toggle switch is a robust, wall-mount control for industrial electrical circuits. When space is tight and reliability matters, a back-and-side wired four-way switch helps reduce commissioning time and field wiring errors. UL Federal Specification Classification 6241 05 supports its use in demanding environments, matching standard industrial certifications. With a construction-grade profile, this two-pole, four-way toggle switch is ideal for industrial control panels, offering straightforward installation, durable polycarbonate housing, and dependable 20A performance at 120/277V. This combination delivers improved uptime and simpler maintenance while complementing your panel design.
Product Information
Extended Description

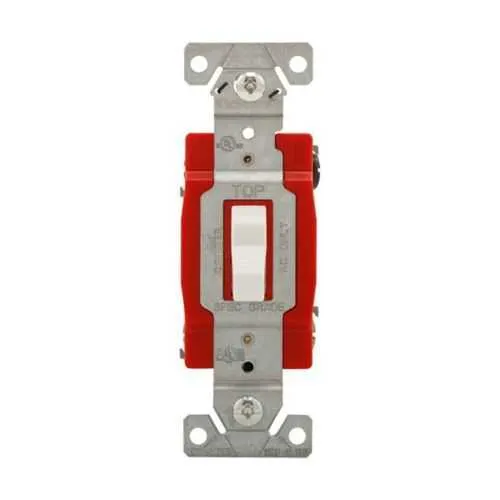

1224W Eaton: Eaton construction grade toggle switch, #14-10 AWG, 20A, Industrial, Wall, 120/277V, Back and side, Screw, White, Four-way, Polycarbonate
Product Name
Eaton construction grade toggle switch
Catalog Number
1224W
UPC
032664735929
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.001 lb
Certifications
UL Federal Specification Classification 6241 05
Amperage Rating
20A
Torque rating
14 lbf-inch
Voltage rating
120/277 V
Wiring method
Back and side
Mounting method
Wall
Color
White
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Application
Industrial
Connector type
Screw
Number Of Poles
Two-pole
Number of ways
Four-way
Switch type
Four-way
Type
Toggle switch
Feature construction-grade design and polycarbonate housing translates into superior durability in harsh industrial conditions, improving uptime by resisting impact, dust, and temperature swings and reducing replacement cycles in control panels. Application: industrial control panels in manufacturing and processing facilities. Feature back-and-side wiring with screw terminals and #14-10 AWG compatibility simplifies field termination, reduces wiring errors, and lowers labor time. Application: panel feeders and distribution interfaces. Feature 20A rating and 120/277V voltage support common control circuits and lighting loads, enabling reliable operation across standard industrial loads. Application: motor control interfaces and electrical distribution in panels. Feature two-pole, four-way design provides flexible switching topology for multi-location control, easing interlocks and cross-connects. Application: complex control schemes in machines and process lines. Feature a torque rating of 14 lbf-in and wall-mount installation for secure, repeatable operation and quick field service. Application: durable, maintenance-friendly panel installations.
