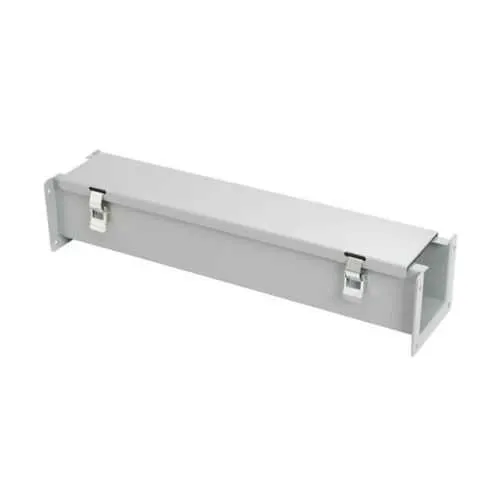

Eaton 12624-12LW Wireway - NEMA 12, UL Listed
Part Number: 12624-12LW
Quick Summary
Eaton 12624-12LW wireway delivers durable cable routing for industrial enclosures and control panels. This solution helps panel builders tackle clutter, moisture intrusion, and hard-to-access wiring in tight spaces. UL Listed and CSA C22.2 certifications support compliance, while the NEMA 12-rated steel enclosure withstands dust, oil, and incidental splash in challenging environments. With a hinged cover and quick-release latches, installation and maintenance become faster and safer. By integrating this wireway into a B-Line series system, engineers can streamline field wiring, improve traceability, and reduce rework, delivering tangible cost savings over the life of the panel.
Product Information
Extended Description
12624-12LW Eaton: Eaton B-Line series wireway, 6" height, 24" length, 12" width, 12LW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Oil-resistant gasket, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
12624-12LW
UPC
782051004427
Product Length/Depth
24 in
Product Height
6 in
Product Width
12 in
Product Weight
22.149 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover is held by butt hinges&quick-release latches
Type
12LW wireway
Feature: 6 inch height, 12 inch width, 24 inch length in a single 12LW wireway. Business Impact: Maximizes available wiring space within compact control panels, reducing bulk and improving airflow and heat dissipation in tight panel areas. Application: Ideal for compact machine enclosures and panel boards where space is at a premium. Feature: 14 gauge steel construction with ANSI 61 gray finish. Business Impact: Delivers robust mechanical protection and a professional industrial appearance with corrosion resistance suitable for indoor environments. Application: Suitable for factory floors, machine rooms, and electrical closets demanding durable enclosure components. Feature: Hinged cover with butt hinges and quick-release latches. Business Impact: Enables rapid access for maintenance, testing, and rework while maintaining enclosure integrity. Application: Routine inspections and wiring updates without extended downtime. Feature: Oil-resistant gasket and NEMA 12 rating. Business Impact: Improves dust, oil, and moisture resistance, extending cable life and reducing replacement costs. Application: Environments with potential oil exposure or high humidity. Feature: Wireway hanger mounting and B-Line compatibility. Business Impact: Simplifies installation, reduces mounting time, and allows reuse across multiple panels in a line. Application: Retrofit projects and scalable panel builds. Certifications: UL Listed and CSA C22.2 compliance provide regulatory assurance, supporting quality management and industry standards.
Get a Quick Quote for a Eaton 12624-12LW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12624-12LW?
Enquire Now
FAQs
The 12624-12LW is designed for Eaton's B-Line wireway system and pairs with standard wireway hangers, making it highly compatible with new or existing panel builds. Its 24 in length fits compact control cabinets while the 6 in height and 12 in width offer substantial routing space. The hinged cover with quick-release latches supports fast access during retrofit wiring, testing, and routine maintenance without sacrificing enclosure protection.
Key specs include 14 gauge steel construction with ANSI 61 gray finish, 6 in height, 12 in width, and 24 in depth. It features a hinged closure, oil-resistant gasket, NEMA 12 enclosure rating, and a wireway hanger mounting method. This combination ensures durable protection against dust and oil while supporting efficient, compliant wiring layouts in industrial enclosures.
Yes, the 12624-12LW is designed for indoor industrial environments and includes an oil-resistant gasket and NEMA 12 protection. While it is not rated for explosion-proof or outdoor conditions, its steel construction and gasketed hinged cover provide reliable protection against dust, oil splashes, and incidental moisture in typical factory settings.
The 12624-12LW carries UL Listed and CSA C22.2 certifications, validating compliance with widely adopted electrical enclosure standards. This helps satisfy regulatory requirements in many industrial settings and supports quality management systems when selecting components for control panels and enclosures.
Its hinged cover with quick-release latches reduces maintenance downtime and tool requirements, while the 14 gauge steel construction and NEMA 12 rating minimize component replacements due to wear or environmental exposure. Wireway hanger mounting simplifies installation, enabling faster panel builds and scalable layouts across production lines, which translates to lower labor costs and a shorter payback period.
