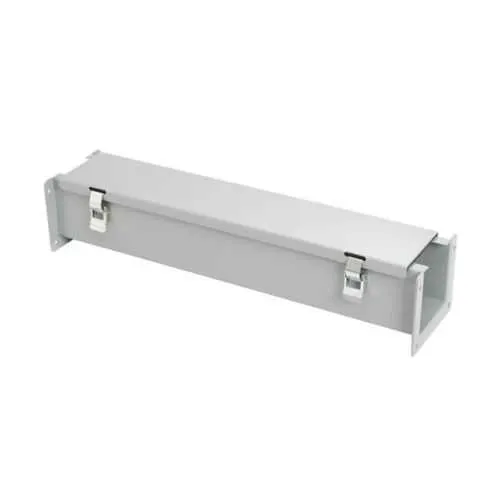

Eaton 12648-12LW Wireway with Hinged Cover NEMA 12
Part Number: 12648-12LW
Quick Summary
Eaton 12648-12LW Wireway is a rugged cable management system for industrial wiring in control panels. Engineers often contend with long, tangled cable runs that complicate maintenance and safety. It carries CSA C22.2 UL Listed certifications and UL listing, with a NEMA 12 enclosure to protect against dust and moisture in harsh environments. Coupled with an ANSI 61 gray finish and 14 gauge steel construction, this solution improves installation efficiency and reduces lifecycle costs in factory automation, panels, and switchgear installations. The hinged cover and quick-release latches streamline access, enabling faster service without compromising enclosure integrity.
Product Information
Extended Description
12648-12LW Eaton: Eaton B-Line series wireway, 6" height, 48" length, 12" width, 12LW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Oil-resistant gasket, Hinged, ANSI 61 gray, 14 gauge
Product Name
Eaton B-Line series wireway
Catalog Number
12648-12LW
UPC
782051004519
Product Length/Depth
48 in
Product Height
6 in
Product Width
12 in
Product Weight
41.348 lb
Certifications
CSA C22.2. UL Listed
Material thickness
14 gauge
Finish color
ANSI 61 gray
Closure type
Hinged
Mounting method
Wireway hanger
Special features
Cover is held by butt hinges&quick-release latches
Type
12LW wireway
Feature: 6 in height, 12 in width, 48 in length and 12LW wireway provide a generous routing footprint. Business Impact: Facilitates organized cabling runs and reduces installation time, minimizing wiring errors and rework. Application: Ideal for long runs in control panels and equipment rooms where space is at a premium. Feature: Hinged cover with butt hinges and quick-release latches. Business Impact: Faster access for inspections and maintenance, lowering downtime and labor costs. Application: Frequent servicing in switchgear, panels, and production lines. Feature: NEMA 12 steel enclosure with oil-resistant gasket. Business Impact: Superior environmental protection against dust, moisture, and oils, improving reliability in dirty or humid facilities. Application: Industrial floors, manufacturing cells, and outdoor-rated spaces. Feature: ANSI 61 gray finish. Business Impact: Corrosion resistance and consistent appearance across plant installations, aiding long-term maintenance. Application: New builds and retrofits requiring durable aesthetics. Feature: Wireway hanger mounting. Business Impact: Flexible installation options and reduced alignment issues during field mounting. Application: Retrofit projects and new installations with varying mounting constraints. Feature: 14 gauge steel construction and weight around 41.3 lb. Business Impact: Sturdy protection with manageable handling during installation and servicing. Application: Heavy-duty wiring environments needing durable protection. Feature: Certifications CSA C22.2 UL Listed. Business Impact: Regulatory compliance support for diverse industrial sites, reducing procurement risk. Application: Plant-wide electrical installations requiring certified enclosures.
Get a Quick Quote for a Eaton 12648-12LW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 12648-12LW?
Enquire Now
FAQs
The 12648-12LW uses standard wireway hanger mounting and hinges for quick integration with compatible B-Line series components. Plan for a 6x12x48 in footprint, align mounting points, and secure with the included hardware. The hinged cover and butt hinges simplify field assembly, while the 14 gauge steel provides robust mechanical support in busy panels or manufacturing lines.
Key specs include 6 in product height, 12 in width, 48 in length, NEMA 12 enclosure protection, 14 gauge steel, ANSI 61 gray finish, and an oil-resistant gasket. The cover is hinged with quick-release latches for rapid access, and the weight is approximately 41.348 lb, supporting stable mounting yet manageable handling during installation.
Yes. This Eaton wireway is CSA C22.2 and UL Listed, aligning with widely adopted safety and performance standards. The NEMA 12 enclosure provides dust and moisture protection, making it appropriate for many industrial facilities, including manufacturing floors and control rooms where regulatory compliance and reliable enclosure protection are required.
Absolutely. The hinged cover with quick-release latches allows rapid opening for inspections and servicing, reducing downtime. The steel construction and oil-resistant gasket protect cables from environmental contaminants, while the ANSI 61 gray finish offers durable aesthetics. Overall, crews experience faster fault isolation and safer cable management during routine maintenance.
The 12648-12LW delivers longer service life due to its 14 gauge steel, robust NEMA 12 protection, and reliable hinged access, lowering replacement costs and downtime. Regulatory compliance reduces risk of non-conformance, while easier maintenance translates to lower labor hours over the lifecycle, contributing to a favorable total cost of ownership in plant automation projects.
