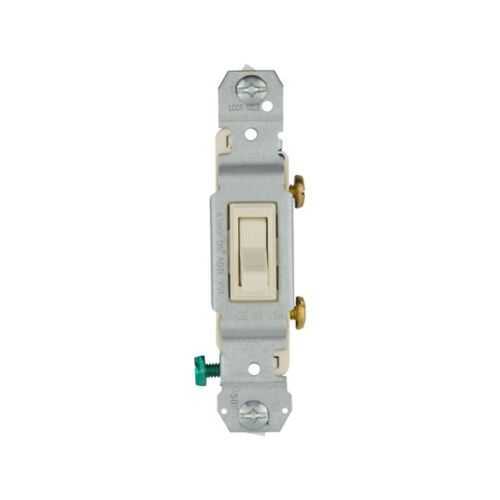

Eaton 1301-73LA Toggle Switch - RoHS Compliant
Part Number: 1301-73LA
Quick Summary
Eaton toggle switch is a reliable manual control for residential lighting and light motor loads. It addresses common installation headaches like bulky devices and messy wiring in tight panels by offering a compact, flush-mount design. This model carries RoHS compliance and NAFTA eligibility, and is cULus Listed with NOM certification for U.S. and Canadian installations. The combination of side and push wiring, plus a screw connector, provides straightforward field wiring and consistent performance. With a 120 V rating and 15 A capacity, this switch helps engineers and contractors meet code while delivering durable, long-term operation in everyday electrical panels.
Product Information
Extended Description
1301-73LA Eaton: Eaton toggle switch, #14-10 AWG, Flush, 120V, Side and push, Screw, Light almond, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, -20° to 60°C, Single-Pole, Polycarbonate
Product Name
Eaton toggle switch
Catalog Number
1301-73LA
UPC
032664601842
Product Length/Depth
0.75 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.09 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed NOM
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120 V
Number Of Poles
Single-pole
Application
Residential
Wiring method
Side and push
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
INC MLV CFL FLR ELV Motor Control LED Fan HAL
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Operating temperature
-20 to 60 °C
Torque rating
14 lbf-inch
Color
Light almond
Feature: 15 A at 120 V single-pole rating. Business impact: Supports common residential and light commercial loads with reliable current handling, reducing overcurrent risk and replacing older switches without rework. Application: Ideal for lighting circuits, fans, and LED/MV loads in homes or small offices. Feature: Side and push wiring with screw terminals. Business impact: Enables quick, secure connections that minimize wiring errors and field troubleshooting, decreasing installation time by reducing terminal re-termination. Application: Suitable for standard electrical boxes and retrofit projects. Feature: Flush mounting with polycarbonate body. Business impact: Slim, unobtrusive form factor reduces panel depth and improves aesthetics, lowering install time and material costs. Application: Residential switchplates and wall panels where space is at a premium. Feature: Wide load compatibility (INC MLV CFL FLR ELV Motor Control LED Fan HAL). Business impact: Delivers versatile performance across lighting and small motor applications, reducing the need for multiple switch types. Application: Residential circuits, ceiling fans, LED fixtures, and CFL lighting. Feature: Operating range -20 to 60 °C and 14 lbf-inch torque. Business impact: Ensures dependable actuation in varied environments and with consistent actuation force, improving field reliability and lifecycle. Application: Enclosures with ambient temperature variation and frequent use. Feature: Compliance and certifications (RoHS, NAFTA, cULus Listed, NOM). Business impact: Lowers regulatory risk and import/export friction, simplifying procurement and commissioning. Application: Product selections for code-compliant residential installations and cross-border projects.
Get a Quick Quote for a Eaton 1301-73LA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1301-73LA?
Enquire Now
FAQs
For residential wiring, ensure the panel space allows flush mounting and that box space accommodates a 0.75 in device depth. Use the side and push wiring with screw terminals for secure connections and verify that wire sizes fall within #14-10 AWG. The 1301-73LA is designed for straightforward field wiring and reduces overall assembly time in typical home runs.
The switch is rated 15 A at 120 V and supports a broad load set including incandescent, LED, CFL, FLR, ELV, MLV, motors, fans, and HAL. It is a single-pole, residential-grade device suitable for lighting control and small motor applications, delivering reliable switching across common residential circuits.
Yes. The load-type compatibility includes LED and fan loads, along with motor control and other common lighting technologies. Its flush-mount design and compatible wiring methods make it a practical choice for modern residential panels where LED lighting and ceiling fans are prevalent.
The 1301-73LA is RoHS compliant and NAFTA eligible, and carries cULus Listed and NOM certifications. These certifications support safe, code-compliant installation in the US and Canada, reducing regulatory risk and facilitating cross-border procurement and project execution.
The device’s durable polycarbonate body, broad load compatibility, and easy wiring reduce maintenance needs and replacement frequency. The flush design saves panel space and speeds installations, delivering cost savings through shorter installation times, fewer field faults, and reliable long-term performance in typical residential environments.
