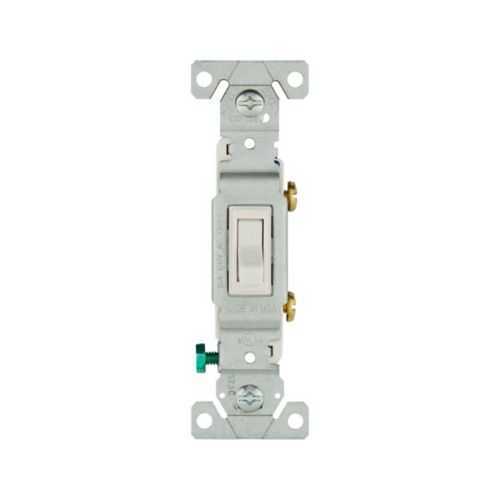

Eaton 1301-7W Toggle Switch - RoHS Compliant, cULus NOM
Part Number: 1301-7W
Quick Summary
The Eaton 1301-7W toggle switch provides reliable electrical control for residential lighting and small motor loads. When space is limited and flush mounting is required, electrical installers need a unit that wires easily with side and push connections. It carries RoHS compliance and NAFTA compatibility, and is cULus Listed NOM for safety and broad market acceptance. With a 15A, 120V rating in a single-pole configuration, and a polycarbonate body, it supports dependable residential load switching while its compact footprint aids quick upgrades and consistent results. Designed for loads including incandescent, LED, CFL, and motor control with up to #14-10 AWG wiring, it helps reduce field wiring errors and enables faster, more reliable installations. This combination supports fast installations, predictable performance, and lower total cost of ownership across contractor projects.
Product Information
Extended Description
1301-7W Eaton: Eaton toggle switch, #14-10 AWG, 15A, Residential, Flush, 120V, Side and push, Screw, White, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Polycarbonate
Product Name
Eaton toggle switch
Catalog Number
1301-7W
UPC
032664750878
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.16 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed NOM
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120 V
Number Of Poles
Single-pole
Application
Residential
Wiring method
Side and push
Switch type
Single-pole
Mounting method
Flush
Connector type
Screw
Load type
INC CFL HAL FLR Motor Control MLV LED ELV Fan
Material
Polycarbonate
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Color
White
Wiring method and mounting: Side and push wiring with flush mounting simplifies enclosure fit and reduces wiring errors during installation. The polycarbonate body adds durability in busy electrical environments while the torque rating of 14 lbf-in keeps fasteners secure without overtightening. Electrical ratings & load compatibility: With a 15A, 120V rating in a single-pole configuration, 1301-7W supports a wide range of residential loads including incandescent, CFL, LED, fluorescent, halogen, as well as motor control and fans. This broad compatibility minimizes the need for multiple switch types, supporting streamlined procurement and consistent performance across varied room circuits. Durability & design for installation: The polycarbonate housing ensures impact resistance in high-traffic areas and exams, while the compact 0.88 in width and 3.28 in height enable discreet placements inside standard wall boxes. Compliance & certifications: RoHS compliant and NAFTA-friendly, along with cULus NOM listing, minimizes regulatory risk on North American projects and supports cross-border procurement. These certifications reassure customers and inspectors and help speed project approvals. Installation compatibility & business value: The 1301-7W supports standard wiring practices, works with #14-10 AWG conductors, and offers straightforward replacement in retrofit programs. Vendors gain faster turnarounds, fewer warranty issues, and lower maintenance costs over the switch's service life.
Get a Quick Quote for a Eaton 1301-7W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1301-7W?
Enquire Now
FAQs
1301-7W supports side and push wiring and flush mounting, which streamlines enclosure fit and reduces wiring errors during installation. The polycarbonate body provides durability while the 14 lbf-in torque rating ensures stable actuation without over-tightening connectors. With a compact footprint, it fits standard wall boxes and plates for quick field upgrades and consistent aesthetics.
1301-7W is rated for 15A at 120V in a single-pole configuration, designed for residential circuits. It supports a broad load spectrum including incandescent, CFL, LED, fluorescent, halogen, motor control, MLV, and ELV loads, as well as fans. This broad compatibility minimizes the need for multiple switch types and simplifies procurement for projects with mixed lighting and small motor loads.
Yes. The device is purpose-built for residential applications, delivering reliable on/off control for lighting and ceiling fans. Its flush mounting and side/push wiring simplify retrofits in existing enclosures, while cULus NOM certification and RoHS/NAFTA compliance support compliant installations across regions. For long-life operation, the unit uses a rugged polycarbonate body and a 15A, 120V rating.
Certifications and compliance for this switch include cULus Listed NOM and RoHS NAFTA compliance. These attributes help minimize regulatory risk in North American projects while ensuring environmental responsibility. The NOM listing also supports cross-border procurement, and RoHS compliance reflects restricted hazardous substances in production, contributing to safer installations and easier acceptance by customers and inspectors.
Choosing the 1301-7W can lower maintenance and retrofit costs by speeding installation, reducing call-backs due to wiring errors, and providing long service life with a durable polycarbonate construction. The wide load compatibility minimizes future replacements during renovations, and certifications facilitate quick approvals in regulated projects, contributing to lower total cost of ownership and faster project completion.
