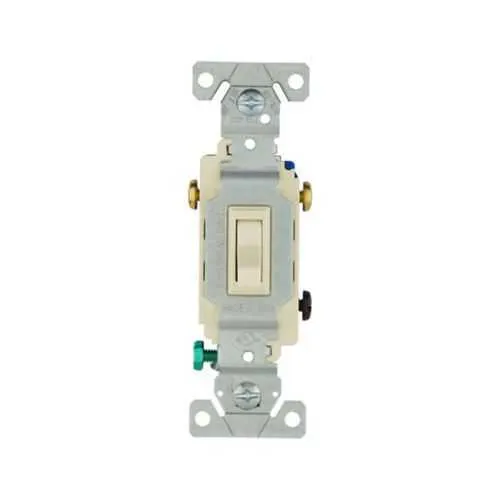

Eaton 1303-7A-10-L Toggle Switch - cULus Listed
Part Number: 1303-7A-10-L
Quick Summary
Eaton toggle switch handles 15A, 120 VAC for residential three-way lighting control. This compact device fits standard gang boxes, supports back and side push-wire connections, and flush mounting for a clean, code-compliant installation. A common pain point is finding a switch that meets safety standards without complicating wiring or box fill calculations. The 1303-7A-10-L is NOM and cULus listed, RoHS compliant, and NAFTA-compatible, ensuring regulatory acceptance across North American markets. With durable polycarbonate housing and a 14 lbf-inch torque rating, it offers reliable actuation, long service life, and straightforward maintenance. Contractors appreciate predictable performance and faster commissioning, reducing field labor costs while meeting residential electrical codes.
Product Information
Extended Description
1303-7A-10-L Eaton: Eaton toggle switch, 15A, 120 Vac, Three-Way switch type
Product Name
Eaton toggle switch
Catalog Number
1303-7A-10-L
UPC
032664749681
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.1 lb
Compliances
NAFTA RoHS Compliant
Certifications
NOM cULus Listed
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120 V
Number Of Poles
Single-pole
Application
Residential
Wiring method
Back and side, push wire
Switch type
Three-way
Mounting method
Flush
Connector type
Screw
Load type
ELV MLV FLR INC HAL CFL Motor Control LED Fan
Material
Polycarbonate
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Color
Almond
The 1303-7A-10-L is a 15A, 120V toggle switch designed for residential lighting circuits. This clear electrical rating supports typical room lighting without nuisance trips, improving system reliability and reducing service calls. In practice, installers can confidently deploy this device in living rooms, hallways, and bedrooms where a controlled, single or three-way configuration is needed. The three-way, single-pole design enables two-location control perfect for stairwells and hallways, enhancing convenience and energy savings for end users. Back and side push-wire wiring with #14-10 AWG conductors streamlines installation, lowers labor time, and minimizes wire-management challenges during retrofit projects. Flush mounting delivers a neat, low-profile appearance that aligns with standard wall plates and safe clearance. The almond-colored polycarbonate housing combines aesthetic versatility with impact resistance, reducing field damage in busy residential environments. Certifications and compliance—NOM, cULus, RoHS, and NAFTA—support cross-border deployment and code conformity, while a 14 lbf-inch torque ensures consistent toggle feel and long service life. This combination translates to lower maintenance costs, higher first-pass installation success, and robust reliability in everyday electrical setups.
Get a Quick Quote for a Eaton 1303-7A-10-L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1303-7A-10-L?
Enquire Now
FAQs
The Eaton 1303-7A-10-L supports back and side push-wire wiring for #14-10 AWG conductors and flush mounting in standard single-gang boxes. Screw terminals provide secure, vibration-resistant connections, while a polycarbonate housing offers impact resistance. This combination simplifies retrofit projects and new installations, reducing wiring time, box-fill concerns, and installation errors.
This toggle switch is rated for 15A at 120V, suitable for typical residential lighting circuits. It is a three-way, single-pole device supporting diverse loads including ELV, MLV, CFL, LED, and motor controls, ensuring broad compatibility with common fixtures. It uses back and side wiring with 14-10 AWG conductors to accommodate standard residential wiring practices.
Yes. The three-way, single-pole design enables two-location control, ideal for stairwells, entryways, and hallways. Its flush mounting and almond color integrate with most decors, while the 14 lbf-inch torque provides a consistent toggle action. Regulatory compliance plus NOM and cULus listings simplify code acceptance across different regions.
The device carries NOM and cULus Listed certifications along with RoHS compliance and NAFTA compatibility. These marks support regulatory acceptance in North America and Mexico, streamline safety reviews, and reassure users about environmental and safety standards. The combination helps electrical contractors meet common residential electrical codes with reduced risk during inspections.
Maintenance is minimal due to a durable polycarbonate housing and reliable screw terminals, which resist wear in typical residential use. The device’s long service life, straightforward two-location control, and easy retrofit capabilities translate to lower replacement frequency and labor costs. The result is a favorable total cost of ownership for property managers and electrical contractors.
