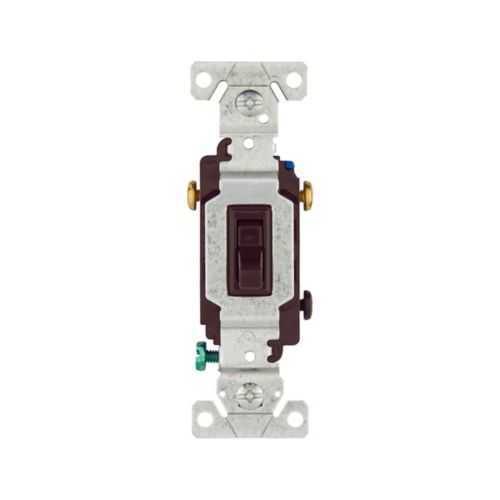

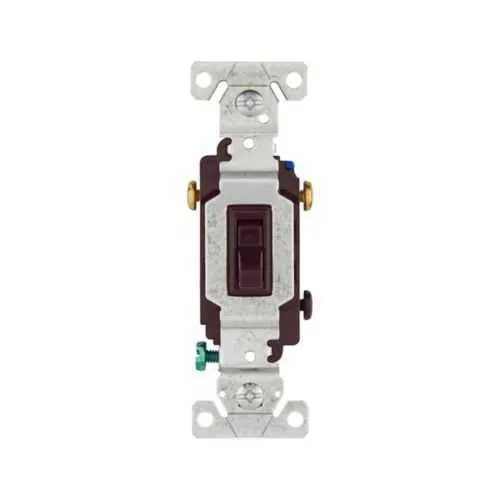

Eaton 1303-7B Toggle Switch - cULus Listed, RoHS
Part Number: 1303-7B
Quick Summary
Eaton toggle switch 1303-7B provides 15A, 120V residential control for lighting and fan circuits. In retrofit or new installations, customers often struggle with compatibility across lighting, motor, and CFL/LED loads, risking nuisance tripping or unreliable actuation. This unit is cULus Listed and NOM certified, RoHS compliant, and NAFTA-ready, simplifying regulatory approvals and cross-border procurement for installers and procurement teams. The flush-mount, three-way design fits compact spaces, while back-and-side wiring supports flexible field connections using standard #14-10 AWG conductors. Durably built with polycarbonate housing, its 14 lbf-inch torque rating ensures consistent actuation across repeated cycles. Engineered for durability in high-use applications. For engineering and procurement teams, that means faster installations, fewer callbacks, and predictable performance across motor, LED, and incandescent load types.
Product Information
Extended Description
1303-7B Eaton: Eaton toggle switch, #14-10 AWG, 15A, Residential, Flush, 120V, Back and side, push wire, Screw, Brown, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Three-Way, Three-Way
Product Name
Eaton toggle switch
Catalog Number
1303-7B
UPC
032664308802
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.14 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed NOM
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120 V
Number Of Poles
Single-pole
Application
Residential
Wiring method
Back and side, push wire
Switch type
Three-way
Mounting method
Flush
Connector type
Screw
Load type
MLV Motor Control CFL ELV HAL FLR LED Fan INC
Material
Polycarbonate
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Color
Brown
Feature: The 1303-7B is a three-way toggle switch rated at 15A and 120V with flush mounting. Business impact: This combination expands wiring options, reduces enclosure depth, and speeds installation by keeping conductors neatly inside the box while maintaining code-compliant clearances. Application: Ideal for residential lighting and fan circuits where space is at a premium and reliable actuation is essential. Feature: Load types include MLV, motor control, CFL, ELV, HAL, FLR, LED, fan, and incandescent. Business impact: Using one switch across mixed loads reduces part counts, lowers procurement costs, and simplifies maintenance. Application: Residential projects with lighting, ceiling fans, and small motors where reliable, multi-load switching is required. Feature: Back and side wiring with screw terminals supports #14-10 AWG conductors. Business impact: Streamlines field connections, reduces miswiring risk, and improves reliability in dense junction boxes. Application: Retrofit work and new construction where wiring access varies. Feature: Flush-mount design reduces enclosure footprint and uses a durable polycarbonate housing. Business impact: Saves panel space, lowers material costs, and improves heat management in tight enclosures. Application: High-density residential installs and remodels where box real estate is at a premium. Feature: RoHS, NAFTA, and cULus NOM certifications accompany the polycarbonate chassis. Business impact: Minimizes compliance risk, accelerates procurement cycles, and aligns with corporate sustainability programs. Application: North American residential and light commercial projects.
Get a Quick Quote for a Eaton 1303-7B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1303-7B?
Enquire Now
FAQs
The 1303-7B supports back- and side‑wire wiring with screw terminals and is designed for flush mounting in standard residential boxes. It accepts #14–10 AWG conductors and supports single‑pole three‑way configurations, enabling flexible installations in retrofit or new builds while minimizing box fill and rework. This versatility helps ensure reliable connections across diverse loads.
The 1303-7B is designed to switch a broad range of load types, including MLV, motor control, CFL, ELV, HAL, FLR, LED, fan, and incandescent lighting. Rated for 15A at 120V, it supports three-way operation and a wide allowable wire size (#14-10 AWG). This versatility ensures reliable operation across residential lighting, ceiling fans, and small motors.
Yes. The 1303-7B is purpose-built for residential applications, offering a compact flush-mount form, a three-way toggle, and 120 V operation ideal for lighting and fan circuits. Its 14 AWG compatibility and back-/side-wiring options speed installation in retrofit projects, while the 15A rating supports typical home lighting and small motor loads without nuisance tripping.
The 1303-7B is cULus Listed with NOM certification and RoHS compliance, and it carries NAFTA alignment. This combination simplifies regulatory approvals, facilitates cross-border sourcing, and supports responsible material use. For procurement teams, these certifications offer confidence that deployments meet safety standards and environmental requirements across U.S., Canadian, and Mexican projects.
The flush-mount design and back- and side-wiring option streamline field connections, reducing labor time during installation. Polycarbonate housing resists impact, and the 14 lbf-in torque rating ensures consistent actuation, minimizing switch failures. With RoHS, NAFTA, and cULus listed, it reduces compliance risk and maintenance costs, delivering dependable performance across LED, CFL, and incandescent loads. This supports maintenance planning and reduces downtime.
