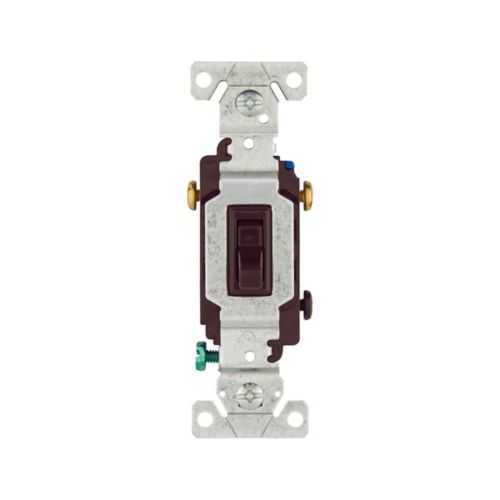

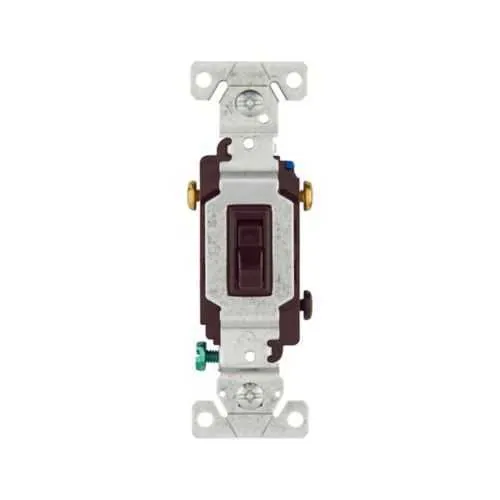

Eaton 1303-7B-BOX Toggle Switch - cULus Listed
Part Number: 1303-7B-BOX
Quick Summary
Eaton toggle switch is designed to reliably control electrical loads in residential and light commercial circuits. Project teams often face delays when switches lack wiring flexibility, mounting options, or clear certifications. This model is RoHS compliant, NAFTA approved, and cULus listed with NOM certification, supporting code compliance in North American installations. Its back and side wiring, flush mount design, and durable polycarbonate body simplify installation, reduce field labor, and improve overall reliability in tight spaces and demanding environments. The result is faster, safer panel wiring and a robust control solution for fans, LED and CFL lighting, and motor-load applications.
Product Information
Extended Description
1303-7B-BOX Eaton: Eaton toggle switch, #14-10 AWG, 15A, Fan, Flush, 120V, Back and side, push wire, Screw, Brown, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Three-Way, Three-Way
Product Name
Eaton toggle switch
Catalog Number
1303-7B-BOX
UPC
032664186707
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
0.88 in
Product Weight
0.156 lb
Compliances
RoHS Compliant NAFTA
Certifications
cULus Listed NOM
Special features
Box
Type
Toggle switch
Amperage Rating
15A
Voltage rating
120 V
Number Of Poles
Single-pole
Application
Residential
Wiring method
Back and side, push wire
Switch type
Three-way
Mounting method
Flush
Connector type
Screw
Load type
Fan LED CFL ELV Motor Control INC HAL MLV FLR
Material
Polycarbonate
Number of ways
Three-way
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Color
Brown
Compact flush-mount design enables three-way control in tight wall boxes, improving space utilization and reducing trim work in new builds. This reduces installation time and labor while delivering dependable operation for residential lighting and fan-control circuits. Wiring versatility with back and side push-wire for #14-10 AWG simplifies terminations, accelerates wiring, and reduces termination errors on busy job sites. It supports a wide range of loads, including LED, CFL, incandescent, and motor-control devices, enabling a single versatile switch to cover multiple projects. The 120 V, 15 A rating provides reliable performance for common residential circuits, ensuring consistent dimming, switching, and load management with minimal voltage drop. Durable polycarbonate construction offers heat resistance and long-term reliability in standard electrical environments, while color brown provides a neutral, device-friendly aesthetic. Compliance with RoHS, NOM, and cULus ensures code alignment and reduced risk for regulated installations. The combination of single-pole, three-way capability and flush mounting makes this device compatible with standard residential boxes and common backbox depths, simplifying retrofits and new-build integrations for installers and distributors.
Get a Quick Quote for a Eaton 1303-7B-BOX
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1303-7B-BOX?
Enquire Now
FAQs
The 1303-7B-BOX supports back and side wiring for #14-10 AWG conductors and is designed for flush mounting in standard residential wall boxes. This configuration simplifies field terminations, reduces install time, and improves reliability by ensuring solid conductor seating in restricted spaces.
As a three-way, single-pole toggle switch, it enables control of a load from two locations. It supports common residential loads such as fans, LED/CFL lighting, incandescent, and motor-control devices at 120 V and 15 A, making it suitable for multi-location lighting setups.
This Eaton switch combines a compact flush-mount form factor with versatile wiring and broad load compatibility, backed by RoHS, NOM, and cULus certifications. The result is safer installations, easier compliance, and reduced wiring complexity for both lighting and small-motor control in homes.
The device is RoHS compliant, NOM certified, and cULus listed, with NAFTA compliance. These certifications validate safety, lead-free materials, and cross-border regulatory acceptance, helping installers meet code requirements and minimizing project risk.
The back/side push-wire option, 14-10 AWG compatibility, and flush-mount design reduce labor time and trimming. The durable polycarbonate body lowers failure risk, while the 120 V/15 A rating covers most residential loads, delivering reliable performance across multiple projects with fewer replacements or call-backs.
