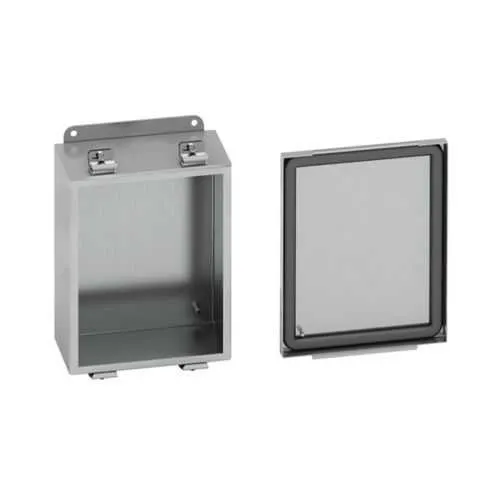

Eaton 14126-4XSS6LC JIC panel enclosure - NEMA 4X
Part Number: 14126-4XSS6LC
Quick Summary
Eaton B-Line series JIC panel enclosure protects critical electrical gear in harsh industrial environments with a robust wall-mount design. Installers often struggle with corrosion, sealing integrity, and fast, tool-free access in tight spaces, leading to downtime and costly maintenance. This enclosure meets UL 50, CSA C22.2 standards and NEMA 4X protection, delivering dependable ingress sealing and corrosion resistance. Built from 316 stainless steel with a 16 gauge wall and seamless poured-in-place gasket, it combines durability with cleanability. The combination of external mounting feet and screw-cover access simplifies installation and service, while the panel-mount provisions support flexible field configurations. For businesses seeking long-term reliability and compliant, low-maintenance enclosures, this model offers clear value.
Product Information
Extended Description
14126-4XSS6LC Eaton: Eaton B-Line series JIC panel enclosure, 14" height, 6" length, 12" width, NEMA 4X, Screw cover, 4XSS6LC enclosure, Wall mount, Small single door, External mounting feet, 316 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
14126-4XSS6LC
UPC
782051094756
Product Length/Depth
6 in
Product Height
14 in
Product Width
12 in
Product Weight
12.7 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
316 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSS6LC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Panel mount provisions, stainless door clamps
NEMA Rating
4X
Country of origin
US
316 stainless steel construction with a 16 gauge wall delivers exceptional corrosion resistance and structural integrity. This translates to longer service life in washdown areas and outdoor installations, reducing maintenance cycles and replacement costs in harsh environments. The enclosure's material choice is a strategic investment for OEMs and facility managers seeking predictable lifecycle performance. Seamless poured-in-place gasket technology provides a tight, continuous seal around the door. The result is reliable ingress protection (NEMA 4X) against dust, water, and other contaminants, improving equipment uptime and safeguarding sensitive electronics in challenging environments. This feature also simplifies compliance with cleanliness standards in regulated industries. External mounting feet simplify installation and reduce frame interference during wall mounting. Combined with a screw-cover door, it accelerates field service without sacrificing enclosure security or gasket integrity. The mounting versatility supports retrofit projects and upgrades in compact spaces. Panel mount provisions and stainless door clamps enable flexible internal layouts and fast access for wiring and components. This adaptability minimizes custom fabrication and shrink-wrap costs while enabling future reconfigurations in evolving control schemes. Compact footprint with a small single-door design optimizes space in crowded control panels and equipment rooms. The 14 in height by 12 in width by 6 in depth footprint fits pre-existing rails and supports a variety of DIN-rail or terminal block arrangements depending on configuration. UL 50 and CSA C22.2 certifications, along with the NEMA 4X rating, provide regulatory assurance and supplier confidence.
Get a Quick Quote for a Eaton 14126-4XSS6LC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 14126-4XSS6LC?
Enquire Now
FAQs
Yes. The 14126-4XSS6LC is designed for wall mounting and includes external mounting feet for secure installation in confined areas. The 14x12x6 footprint fits standard control spaces, and the screw-cover door maintains enclosure integrity while providing easy access during wiring and maintenance. This combination minimizes mounting conflicts and simplifies retrofits in existing infrastructures.
This enclosure uses 316 stainless steel with a 16 gauge wall and a seamless poured-in-place gasket to deliver NEMA 4X protection. It resists corrosion in washdown, chemical, and outdoor environments, safeguarding internal components. UL 50 and CSA C22.2 certifications underpin its reliability, helping ensure regulatory compliance and consistent performance across demanding applications.
Absolutely. The 316 stainless steel construction paired with a sealed gasket and NEMA 4X rating makes it well-suited for washdown areas, chemical processing facilities, and outdoor installations. Its corrosion resistance, combined with a robust mounting approach, supports reliable operation in challenging conditions while meeting industry cleanliness and environmental standards.
The enclosure complies with UL 50 and CSA C22.2 standards and carries a NEMA 4X rating. These certifications confirm weatherproof and corrosion-resistant performance, facilitating regulatory approvals, supplier confidence, and safe integration into regulated control systems. It aligns with common industrial procurement requirements for safety, reliability, and long-term service life.
The combination of 316 stainless steel, seamless gasket, and external mounting feet reduces leakage risk, corrosion-related downtime, and service complexity. Expect lower maintenance costs, longer mean time between failures, and easier future upgrades due to panel mount provisions and stainless door clamps. The result is a favorable total cost of ownership in demanding environments.
