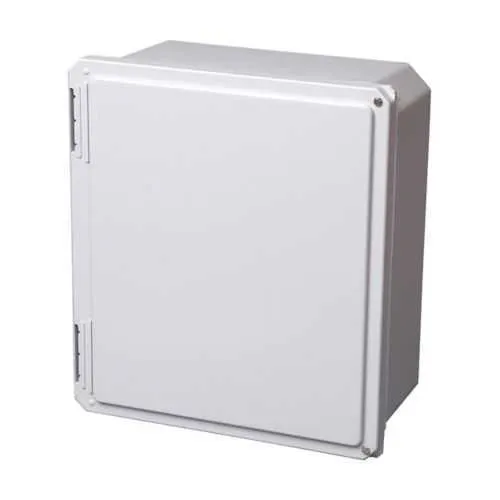

Eaton 14128-SDF JIC Enclosure - NEMA 4X Fiberglass
Part Number: 14128-SDF
Quick Summary
Eaton 14128-SDF JIC enclosure provides rugged, wall-mount electrical housing for industrial control panels in harsh environments. Exposed panels and moisture ingress are common causes of downtime, and this fiberglass enclosure addresses those reliability challenges with corrosion resistance and a sealed gasket. Certified to UL 50 and CSA C22.2 with a NEMA 4X rating, it is built to withstand moisture, dust, and chemical exposure while maintaining long-term performance. As a fiberglass, wall-mount SDF enclosure with a hinged cover, it offers a durable, easy-to-install solution that reduces maintenance costs and supports compliant automation deployments in manufacturing and process industries.
Product Information
Extended Description
14128-SDF Eaton: Eaton B-Line series JIC panel enclosure, 15.49" height, 8.34" length, 15.96" width, NEMA 4X, Hinged cover, SDF enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
14128-SDF
UPC
782051524215
Product Length/Depth
8.34 in
Product Height
15.49 in
Product Width
15.96 in
Product Weight
9.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
SDF enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Closure type
Hinged
Special features
Stainless screws
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers exceptional corrosion resistance and weather sealing, extending service life in harsh environments while reducing maintenance cycles and replacement costs. The seamless poured-in-place gasket further protects against dust and moisture ingress, improving uptime for critical control panels in factories and process lines. With a hinged cover and medium single-door design, maintenance teams gain quick access to components, speeding diagnostics and servicing without compromising protection. Wall mounting, plus optional external mounting feet, offers flexible installation in constrained or retrofit scenarios, enabling fitment in tight spaces and on existing structures. Stainless screws and robust hardware enhance vibration resistance in high-duty applications, while UL 50, CSA C22.2, and NEMA 4X certifications simplify regulatory compliance and safety documentation. This enclosure balances weight, size, and durability for ease of handling and installation, contributing to lower lifecycle costs in industrial automation projects.
Get a Quick Quote for a Eaton 14128-SDF
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 14128-SDF?
Enquire Now
FAQs
The 14128-SDF is a wall-mount JIC enclosure designed to accept standard control panels within its 15.49 in height, 15.96 in width, and 8.34 in depth. It features a hinged cover and a medium single-door configuration, with optional external mounting feet for added stability on uneven or retrofit surfaces. This allows straightforward integration with common panel hardware while preserving protected access for maintenance.
The enclosure is certified to UL 50 and CSA C22.2 and carries a NEMA 4X rating, offering protection against dust, water ingress, and corrosion. These certifications support compliance for industrial control panel installations in manufacturing and process environments within the US and internationally where applicable.
Dimensions are 15.49 inches in height, 15.96 inches in width, and 8.34 inches in depth. The enclosure weighs 9.5 pounds, and it is constructed from fiberglass with a gray unfinished finish, designed for wall mounting and easy handling during installation.
Yes. The combination of fiberglass construction, a hinged cover, a seamless gasket, and a NEMA 4X rating provides robust protection against moisture, dust, and chemical exposure. This makes it suitable for wash-down areas, outdoor installations, and process environments where corrosion resistance is critical.
The fiberglass body resists corrosion, reducing replacement frequency and maintenance costs. A sealed gasket minimizes ingress, lowering preventive maintenance needs. The hinged cover enables rapid access for servicing, while optional feet offer installation flexibility. Together with regulatory-grade certifications, the enclosure supports longer service life, reduced downtime, and lower total cost of ownership for automation projects.
