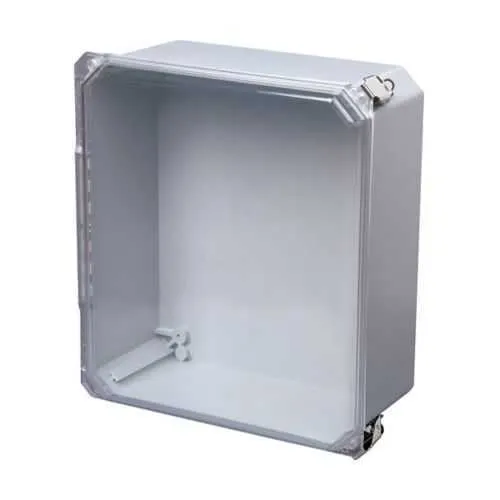

Eaton 14128-SDFQRCC JIC panel enclosure - NEMA 4X
Part Number: 14128-SDFQRCC
Quick Summary
The Eaton 14128-SDFQRCC JIC panel enclosure protects industrial control panels in harsh environments. It addresses common facility pain points such as moisture intrusion, dust ingress, and unauthorized access by providing a rugged fiberglass solution with a seamless gasket. This enclosure carries UL 50, a NEMA 4X rating, and CSA C22.2 to ensure safety and regulatory alignment for your installations. For manufacturers and integrators, the fiberglass construction and wall-mount design translate to lower maintenance, longer service life, and easier compliance with industry standards while delivering reliable, space-efficient control housing.
Product Information
Extended Description
14128-SDFQRCC Eaton: Eaton B-Line series JIC panel enclosure, 15.49" height, 8.34" length, 13.86" width, NEMA 4X, Hinged cover, SDFQRCC enclosure, Wall mount, Medium single door, Optional external mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
14128-SDFQRCC
UPC
782051524413
Product Length/Depth
8.34 in
Product Height
15.49 in
Product Width
13.86 in
Product Weight
9.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
SDFQRCC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
Optional external mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers excellent corrosion resistance and a robust environmental seal, reducing maintenance costs and downtime in washdown and chemical-processing environments; its seamless gasket design minimizes moisture and dust ingress, protecting sensitive electronics and extending component life. This translates to higher uptime and safer operation in harsh outdoor and indoor facilities where reliability matters. The enclosure’s NEMA 4X rating, combined with UL 50 and CSA C22.2 compliance, provides formal protection levels and regulatory alignment, simplifying audit trails and installation approvals for process automation projects. A hinged cover with padlock provisions and a stainless pull-drawn catch enhances security while enabling quick, tool-free access for authorized personnel, supporting safer maintenance routines and faster changeovers in production lines. Wall mounting with optional external feet offers installation flexibility, enabling space-efficient layouts and adaptable retrofits in congested plant floors. The medium single-door design streamlines internal layout for controllers and power supplies, while the poured-in-place gasket ensures a continuous seal around doors and panels, delivering dependable protection without complex adjustments in the field.
Get a Quick Quote for a Eaton 14128-SDFQRCC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 14128-SDFQRCC?
Enquire Now
FAQs
The enclosure is designed for wall mounting and also supports optional external mounting feet for freestanding installations. It features a hinged cover with padlock provisions for secure access and a stainless pull-drawn catch for durability. For best results, mount on a level surface capable of supporting the 9.5 lb unit and ensure gasket seating remains uninterrupted during installation to maintain NEMA 4X integrity.
Key specs include 15.49 in height, 13.86 in width, 8.34 in depth, and a 9.5 lb weight. It carries UL 50 certification, a NEMA 4X rating, and CSA C22.2 compliance, confirming suitability for industrial control panels in demanding environments and aligning with common safety and performance standards.
Yes. The NEMA 4X rating and fiberglass construction are designed to resist moisture, corrosion, and washdown conditions common in outdoor or harsh indoor environments. Ensure proper installation with gasket seating and secure access to maintain the enclosure’s protective performance during washdowns and routine maintenance.
Security is enhanced by padlock provisions and a durable hinged cover, while the stainless pull-drawn catch improves long-term latch reliability. Compliance is supported by UL 50, NEMA 4X, and CSA C22.2 ratings, helping meet industry and regional regulations for electrical enclosures used in control panels and process equipment.
Common challenges include ensuring level mounting surfaces and proper gasket seating to preserve water and dust seals. Address them by selecting a flat wall, using the optional external feet for added stability if freestanding, and following gasket installation guidelines to avoid compressing or misaligning the seal. Plan for the enclosure’s 8.34 in depth to prevent interference with nearby components.
