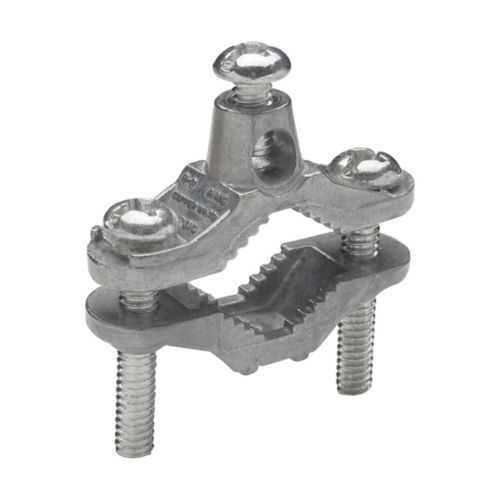

Eaton 141DC Ground Clamp - Compliant with NEC/CEC
Part Number: 141DC
Quick Summary
The Eaton 141DC ground clamp secures service-entrance grounding for electrical enclosures and panels. Engineers often struggle with inconsistent connections and corrosion, leading to downtime and rework. This clamp carries NEC/CEC compliance and UL Canada certification, suitable for ordinary/non-hazardous locations. Its 1/2, 3/4, 1 inch grounding range and #8-2 AWG lug capacity simplify installation across varied service configurations. By combining reliable performance with a compact zinc die cast design, it supports scalable grounding strategies while reducing maintenance and replacement costs.
Product Information
Extended Description
141DC Eaton: Eaton Crouse-Hinds series ground clamp, 1/2", 3/4", 1" clamping range, #8-2 AWG lug conductor range, Zinc die cast
Product Name
Eaton Crouse-Hinds series ground clamp
Catalog Number
141DC
UPC
784564121417
Product Length/Depth
4.95 in
Product Height
1.94 in
Product Width
3.43 in
Product Weight
0.16 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Material
Zinc die cast
Grounding conductor electrode clamping range
1/2", 3/4", 1"
Lug conductor range
#8-2 AWG
Crouse-Hinds series Service Entrance Grounding Clamps, Grounding Lugs and Bonding Bridges catalog page
Service Entrance Grounding Clamps, Grounding Lugs, and Bonding Bridges Canadian certification
Service Entrance Grounding Clamps, Grounding Lugs, and Bonding Bridges Canadian certification
Eaton Specification Sheet - 141DC
Versatile clamping range provides 1/2, 3/4, 1 inch electrode clamping with a lug range of #8-2 AWG. This reduces field inventory and sourcing complexity, shortening project lead times for service entrances. Ideal for panels, enclosures, and conduit systems across industrial facilities. Zinc die cast body delivers corrosion resistance in ordinary locations, extending service life and lowering replacement costs. The compact footprint fits crowded electrical rooms and supports retrofit projects without sacrificing grounding reliability. Compliance and safety are enhanced by NEC/CEC standards and UL certification for Canada, enabling cross-border installs without compromising performance. This single part supports multiple job sites while aligning with regulatory expectations. Lightweight construction (0.16 lb) and precise dimensions (4.95 in L × 3.43 in W × 1.94 in H) simplify mounting and conduit routing. Compatibility with Eaton Crouse-Hinds service equipment streamlines procurement and installation training. Documentation and support are readily available via Eaton’s catalog pages and specification sheet for the 141DC, plus Canadian certification references to facilitate project planning. In the broader market, the 141DC meets growing demand for compact, compliant grounding clamps that reduce field rework and enable scalable maintenance programs.
Get a Quick Quote for a Eaton 141DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 141DC?
Enquire Now
FAQs
Begin by selecting the correct clamping range (1/2, 3/4, 1 inch) and ensure the lug is rated for #8-2 AWG conductors. Insert the grounding conductor fully into the lug, tighten the clamp securely to specification, and verify continuity with a basic resistance check. Use the included Eaton datasheet as a torque reference and follow established installation practices for service entrances.
Yes. The 141DC is designed to meet NEC/CEC standards and carries UL Canadian certification, providing compliance for both U.S. and Canadian installations. It is suitable for ordinary/Non-Hazardous locations, ensuring regulatory alignment while delivering reliable grounding performance across cross-border projects.
The 141DC is tailored for service entrances, grounding conductors, and bonding in electrical enclosures, panels, and conduit systems. Its clamping range supports a variety of conductor sizes, making it versatile for new installations and retrofit projects in manufacturing plants, data centers, and commercial facilities where a robust, NEC/CEC-compliant grounding path is required.
The clamp measures 4.95 inches in length, 3.43 inches in width, and 1.94 inches in height. It weighs 0.16 pounds, making it compact and easy to handle during installation and maintenance in crowded electrical rooms or retrofit environments.
You can access the Eaton Specification Sheet for 141DC, plus the Crouse-Hinds service entrance grounding catalog page and Canadian certification documents via the provided downloads. These resources provide detailed installation guidelines, electrical specifications, and regulatory certifications to support engineering reviews and procurement.
