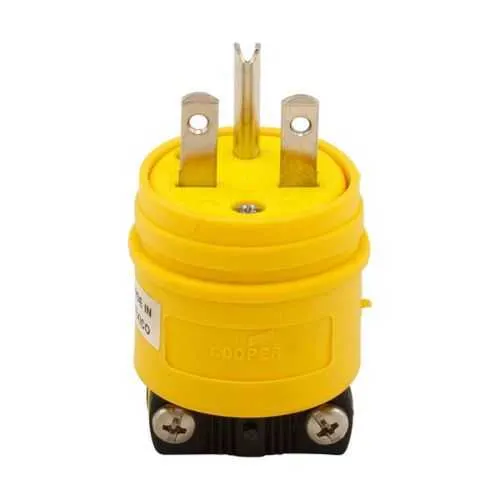

Eaton 1449 Severe Duty Straight Blade Plug - cULus
Part Number: 1449
Quick Summary
Eaton Arrow Hart severe duty straight blade plug reliably connects industrial outlets in harsh environments. End users often grapple with corrosion, back-wire terminations, and costly downtime in challenging plant conditions. cULus Listed safety certification backs this device, along with its nylon body and nickel-plated brass contacts designed for corrosive environments. The 1449 is built to pair with #14-8 AWG wiring via back-wire connections, delivering robust performance in industrial settings while supporting standard 6-15P configurations. For engineers and procurement teams, this plug combines reliability with compatibility, reducing maintenance costs and improving uptime in manufacturing, packaging, and processing facilities.
Product Information
Extended Description
1449 Eaton: Eaton Arrow Hart severe duty straight blade plug,#14-8 AWG,15A,Industrial,250V,Back wire,Yellow,black,Nickel-plated brass,Corrosion Resistant,Nylon,6-15P,Two pole,three wire,grounding,Screw,0.38-1" in diameter,Thermoplastic,Core pack
Product Name
Eaton Arrow Hart severe duty straight blade plug
Catalog Number
1449
UPC
040893630854
Product Length/Depth
7.25 in
Product Height
1.75 in
Product Width
5 in
Product Weight
0.135 lb
Certifications
cULus Listed
Device type
Plug
Type
Complex environment
Amperage Rating
15A
Voltage rating
250V
Contact material
Nickel plated brass
Application
Industrial
Device grade
Severe duty
Wiring method
Back wire
Environmental conditions
Corrosive
Number of wires
3
Number Of Poles
Two-pole
Style type
Straight body
Cord range
0.38-1" in diameter
Material
Thermoplastic
Packaging type
Core pack
Environmental resistance
Corrosion resistant
Color
Yellow Black
Connection type
Screw
Allowable wire size
#14-8 AWG
NEMA configuration
6-15P
Design type
Straight blade
Face/body material
Nylon
Receptacle type
Two-pole, three-wire, grounding
Arrow Hart Buyers Guide D-07
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - 1449
Feature: Severe-duty design and corrosion-resistant materials → Business Impact: Extends service life in tough environments, reducing replacement cycles and maintenance costs. Application: Heavy equipment, industrial control panels, and outdoor installations. Feature: Nickel-plated brass contacts → Business Impact: Maintains high conductivity and resistance to oxidation, ensuring stable performance under load. Application: High-current connections in demanding processes. Feature: Back-wire termination → Business Impact: Faster installation, fewer field terminations, and consistent, secure connections. Application: Control cabinets and machines with limited wiring space. Feature: Nylon body with thermoplastic housing → Business Impact: Superior impact resistance and chemical resilience, lowering failure rates. Application: Harsh chemical plants, food-and-beverage processing, and mining equipment. Feature: 15A, 250V rating with 6-15P configuration → Business Impact: Ensures compatibility with common industrial feeders and machinery, simplifying panel design. Application: Wiring devices and power distribution in industrial facilities. Feature: Cord range 0.38–1 in diameter and #14–8 AWG support → Business Impact: Flexible wiring options, reducing inventory complexity. Application: Various equipment harnesses and power cords. Feature: Core-pack packaging and cULus safety → Business Impact: Cost-efficient logistics and validated safety compliance for procurement and compliance teams. Application: Overhead and floor-mounted installations in rugged environments.
Get a Quick Quote for a Eaton 1449
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1449?
Enquire Now
FAQs
Installation uses back-wire clamps that accept #14-8 AWG conductors. Strip and insert wires into the back-wire terminals, then tighten the screws to secure the connection. Ensure the device is rated for 250V and 15A, connect the grounding conductor to the ground terminal, and verify the 6-15P NEMA configuration matches your receptacle. This reduces wiring errors and speeds up panel wiring.
The 1449 is cULus Listed, indicating UL safety certification with CSA recognition for electrical components used in industrial settings. This designation supports compliance with essential safety standards, simplifies procurement specifications, and helps ensure safe operation in harsh environments where equipment uptime is critical.
Yes. The plug features a nylon body with corrosion-resistant construction and nickel-plated brass contacts, which resist corrosion and maintain conductivity in challenging environments. This makes the 1449 well-suited for industrial facilities with exposure to chemicals, humidity, or dusty atmospheres while preserving electrical integrity.
The device is a two-pole, three-wire grounding plug configured as 6-15P, rated at 15A and 250V. It accepts #14-8 AWG wiring and a cord diameter of 0.38–1 inch. This combination supports common industrial feeders and control circuits, simplifying compatibility with standard receptacles and minimizing stocking requirements.
The 1449's corrosion-resistant materials, robust copper/brass contacts, and reliable back-wire terminations reduce maintenance needs and replacement frequency. Its rugged nylon-thermoplastic housing protects internal connections, contributing to longer service life and lower total cost of ownership in plants with high vibration, dust, or chemical exposure.
