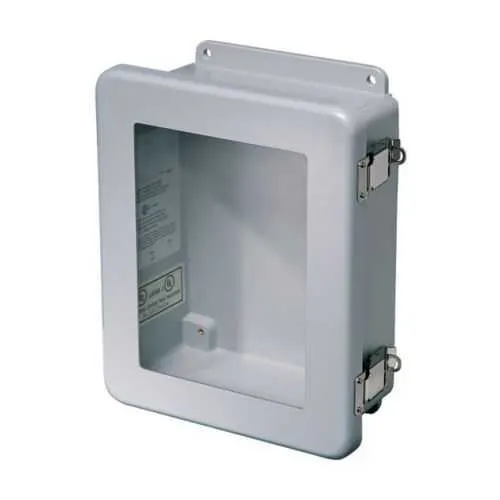

Eaton 1476-4XFCHQRCW JIC panel enclosure - NEMA 4X
Part Number: 1476-4XFCHQRCW
Quick Summary
Eaton B-Line JIC panel enclosure provides rugged protection for electrical control panels in harsh industrial environments. Operators and maintenance teams often struggle with gasket integrity, mounting compatibility, and corrosion exposure in retrofit projects. UL 50, NEMA 4X, and CSA C22.2 certifications provide assurance for safe, weatherproof operation across indoor and outdoor sites. Designed for wall mounting with external feet and a gasketed hinged cover, this enclosure delivers reliable performance and fast service. For engineers, the combination of corrosion resistance and simple installation translates to reduced downtime and lower lifecycle costs. This enclosure is a practical fit for control panels in manufacturing lines, water treatment, and outdoor process equipment.
Product Information
Extended Description
1476-4XFCHQRCW Eaton: Eaton B-Line series JIC panel enclosure, 15.87" height, 6.81" length, 8.75" width, NEMA 4X, Hinged cover, 4XFCHQRCW enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
1476-4XFCHQRCW
UPC
782051524109
Product Length/Depth
6.81 in
Product Height
15.87 in
Product Width
8.75 in
Product Weight
6.3 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRCW enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Fiberglass enclosure delivers robust corrosion resistance and a lighter weight compared with metal options (Feature), reducing maintenance cycles and handling risks for outdoor or washdown environments (Business Impact). In process automation applications across manufacturing floors or water treatment facilities, this translates to lower total cost of ownership (Application).Hinged cover, padlock provisions, and a stainless pull-drawn catch deliver secure, access-controlled operation (Feature) that supports faster service and minimizes unauthorized access in process lines (Business Impact). In environments where frequent panel access is required, technicians experience reduced downtime and improved workflow (Application).External mounting feet and wall-mount capability simplify retrofits and new installs (Feature), lowering project risk by aligning with standard mounting patterns (Business Impact). This accelerates installation across retrofit projects and new builds in packaging, food & beverage, and industrial automation settings (Application).Seamless poured-in-place gasket strengthens weatherproofing and seam integrity (Feature), reducing ingress in humidity and washdown environments (Business Impact). Operators benefit from longer enclosure life and fewer leak-related issues in high-pressure cleaning cycles (Application).Dimensions and weight balance compactness with capacity: 15.87 in height, 8.75 in width, 6.81 in depth, and about 6.3 lb (Feature). This enables easier integration with existing control panels and minimizes space requirements on crowded equipment racks (Business Impact). Ideal for machine control panels, skid-mounted systems, and compact electrical distribution in tight industrial spaces (Application).
Get a Quick Quote for a Eaton 1476-4XFCHQRCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1476-4XFCHQRCW?
Enquire Now
FAQs
The 1476-4XFCHQRCW uses external mounting feet and wall-mount capability, aligning with standard B-Line series layouts. This compatibility reduces retrofit risk, simplifies mounting on existing frames, and minimizes the need for custom brackets. In practice, technicians can reuse mounting locations and standard hardware, speeding installation while preserving panel alignment and access.
This enclosure is rated UL 50, with NEMA 4X protection and CSA C22.2 compliance. These certifications confirm enclosure integrity against dust, water, and corrosion in demanding settings. For facilities needing regulatory assurance, these ratings support safe electrical distribution, outdoor installations, and cross-border compliance.
The seamless poured-in-place gasket plus hinged cover creates a continuous seal around the door, protecting internal components from moisture and particulates. This design reduces ingress risk during washdowns and humidity exposure, minimizing corrosion-driven maintenance and extending service life for critical control electronics.
Yes, the enclosure provides padlock provisions for secure access. This feature, combined with a stainless pull-drawn catch, enables controlled, tool-safe entry for authorized personnel, reducing risk of tampering while preserving quick service when needed.
Fiberglass offers superior corrosion resistance and lighter handling compared with metal enclosures, translating to lower maintenance costs and longer service life. In high-humidity, chemical, or washdown environments, the total cost of ownership decreases due to fewer replacements, reduced downtime, and simpler installation.
