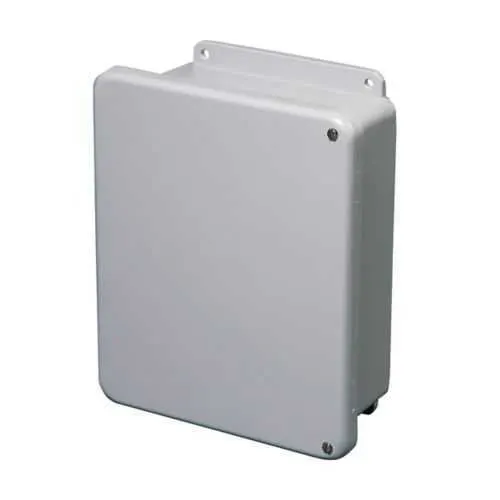

Eaton 1476-4XFCHSC JIC panel enclosure - NEMA 4X
Part Number: 1476-4XFCHSC
Quick Summary
Eaton 1476-4XFCHSC JIC panel enclosure is a rugged fiberglass wall-mount housing for electrical control panels. In harsh environments, corrosion, moisture intrusion, and tough installation constraints can drive maintenance costs and downtime. This enclosure carries UL 50 listings, a NEMA 4X rating, and CSA C22.2 compliance to meet reliability and safety needs. With seamless gasket sealing and a hinged cover, it integrates with the Eaton B-Line series to reduce installation time and total cost of ownership.
Product Information
Extended Description
1476-4XFCHSC Eaton: Eaton B-Line series JIC panel enclosure, 15.87" height, 6.81" length, 8.75" width, NEMA 4X, Hinged cover, 4XFCHSC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
1476-4XFCHSC
UPC
782051523843
Product Length/Depth
6.81 in
Product Height
15.87 in
Product Width
8.75 in
Product Weight
6.3 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHSC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Stainless screws
NEMA Rating
4X
Country of origin
US
Fiberglass enclosure delivers corrosion resistance and a lighter footprint than metal alternatives, reducing handling risk during installation. The business impact is lower maintenance costs and longer service life in outdoor and chemical environments. This solution is ideal for outdoor electrical cabinets and process-control panels where moisture and aggressive agents are common. The NEMA 4X rating provides weatherproof protection, enhancing reliability in harsh manufacturing floors and outdoor substations, while UL 50 and CSA C22.2 certifications streamline compliance and procurement. Hinged cover and external mounting feet enable rapid servicing and flexible wall installations, cutting downtime during routine inspections. Stainless screws further boost corrosion resistance in coastal or chemical plants, improving total cost of ownership over the enclosure’s lifetime. The medium single-door design fits compact control rooms, simplifying integration with the Eaton B-Line family and universally supporting standard control panel components.
Get a Quick Quote for a Eaton 1476-4XFCHSC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1476-4XFCHSC?
Enquire Now
FAQs
Yes. The 1476-4XFCHSC is designed for wall mounting with external mounting feet, supporting a secure, space-efficient install. Its hinged door and fiberglass construction simplify servicing in tight electrical rooms, while staying compatible with the Eaton B-Line series enclosures. This makes it ideal for retrofit projects or new installations on factory walls with limited depth.
External dimensions are 15.87 inches (H) × 8.75 inches (W) × 6.81 inches (D); weight is approximately 6.3 lb. It carries a NEMA 4X rating and UL 50/CSA C22.2 certifications, ensuring weatherproof protection and compliance for industrial control panels exposed to harsh environments.
Absolutely. The fiberglass construction offers superior corrosion resistance, and the NEMA 4X rating provides protection against water and corrosion ingress. This makes the enclosure suitable for outdoor installations and chemical-processing areas where environmental exposure is high, reducing the frequency of enclosure replacements and maintenance.
The enclosure is UL 50 listed, NEMA 4X rated, and CSA C22.2 compliant. Documentation includes the Electrical Enclosure Catalog and the Eaton Specification Sheet for 1476-4XFCHSC, which help streamline procurement and regulatory validation during audits and safety reviews.
The combination of corrosion-resistant fiberglass, seamless gasket sealing, and stainless hardware reduces maintenance frequency and downtime. Its long service life in demanding environments lowers replacement cycles, while quick access through a hinged door cuts service time. Integration with the Eaton B-Line family further reduces wiring and installation complexity, delivering a favorable return on investment.
