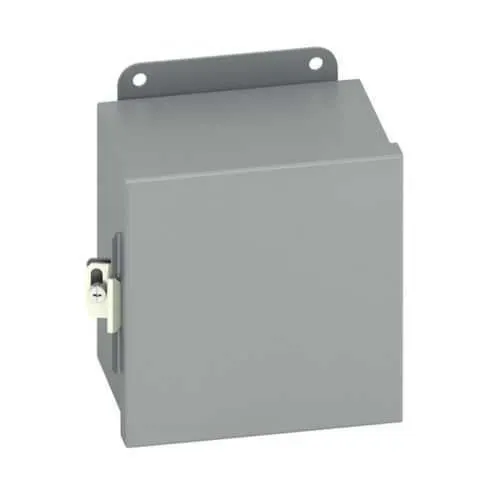

Eaton 1486-12CHC Enclosure - NEMA 12, UL 508A Certified
Part Number: 1486-12CHC
Quick Summary
The Eaton 1486-12CHC Enclosure protects electrical controls for compact, wall-mounted panel applications. Engineers often face installation hurdles, gasket integrity, and space constraints; this JIC enclosure addresses those with a 16 gauge carbon steel body, external mounting feet, and a Hinged, continuous piano hinge. UL 508A and CSA C22.2 listings alongside a NEMA 12 rating provide electrical safety and dust- and splash-resistance for challenging environments. The B-Line series design offers durable protection and a finished ANSI 61 gray paint, enabling quick access with a hinged cover and efficient panel protection for manufacturing lines and process equipment. Its robust construction supports long service life, reducing downtime and total cost of ownership.
Product Information
Extended Description
1486-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 14" height, 6" length, 8" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
1486-12CHC
UPC
782051700282
Product Length/Depth
6 in
Product Height
14 in
Product Width
8 in
Product Weight
9.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
Feature: Compact, wall-mount design with 14 in H x 8 in W x 6 in D dimensions and 9.9 lb weight. Business Impact: Space-efficient protection for small control panels that speeds installation in limited spaces. Application: Ideal for OEMs and panel builders requiring a tight footprint in machine enclosures. The 16 gauge carbon steel construction provides robust mechanical protection and a long service life in harsh environments, improving uptime for manufacturing lines. Feature: Hinged cover with continuous piano hinge and seamless poured-in-place gasket. Business Impact: Fast, tool-free access with reliable sealing reduces maintenance time and prevents dust ingress, lowering service costs. Application: Suitable for frequent access panels and control interfaces in dusty or damp settings. Feature: External mounting feet and wall-mount capability. Business Impact: Flexible mounting options simplify retrofits and new builds, decreasing installation time and associated labor costs. Application: Wall-mounted assemblies in compact electrical rooms or equipment cabinets. Feature: NEMA 12 rating with UL 508A and CSA C22.2 certifications. Business Impact: Compliance assurance and safer operation, facilitating procurement and audit readiness. Application: Enclosures for dust and splash-prone environments in industrial facilities. Feature: ANSI 61 gray painted finish and accessible small single-door design. Business Impact: Durable aesthetics plus easy inspection and maintenance; supports standard color-coding for plant wiring practices. Application: Panel protection in process automation and electrical infrastructure projects.
Get a Quick Quote for a Eaton 1486-12CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 1486-12CHC?
Enquire Now
FAQs
The enclosure measures 14 in high, 8 in wide, and 6 in deep and weighs 9.9 lb. It is designed for wall mounting with external mounting feet for versatile installation in compact electrical spaces.
It carries UL 508A and CSA C22.2 listings and a NEMA 12 rating, providing electrical safety and dust- and splash-protection suitable for industrial environments.
Yes. The NEMA 12 rating, seamless gasket, and sealed hinged cover help protect against dust and splashes in manufacturing and process facilities.
External mounting feet enable straightforward wall mounting, while a Hinged cover with a continuous piano hinge provides easy, repeatable access for routine maintenance and inspections.
Engineers, panel builders, and OEMs needing a compact, durable single-door JIC panel enclosure with wall-mount capability and RFI/EMI-protective integrity for small control panels.
