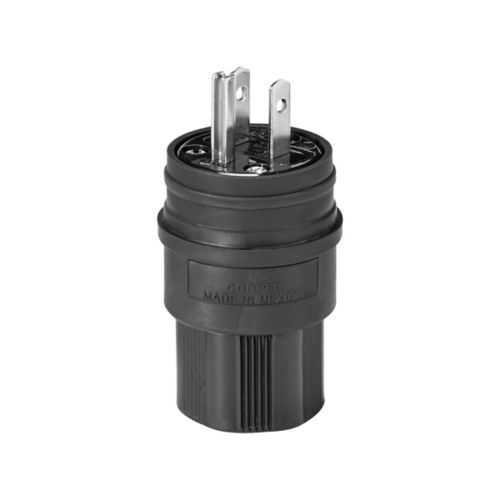

Eaton 14W47 Watertight Straight Blade Plug - IP67
Part Number: 14W47BK
Quick Summary
Eaton 14W47 watertight straight blade plug delivers reliable, moisture-resistant power connections for industrial equipment. In outdoor and washdown environments, moisture ingress and corrosion can devastate uptime and inflate maintenance costs. This device carries cULus Listed certification and an IP67 rating, providing proven protection against dust and immersion. With back-wire and screw-terminal wiring for #18-10 AWG, it supports quick, secure installations across diverse industrial applications. The yellow housing and nickel-plated brass contacts combine visibility with durability, reducing miswiring and wear. For procurement and field installation teams, this plug offers a rugged, compliant solution that supports scalable, bulk deployments and long service life.
Product Information
Extended Description
14W47BK Eaton: Eaton Arrow Hart watertight straight blade plug,#18-10 AWG,15A,Industrial,125V,Back wire,Black,Nickel-plated brass,IP67,Santoprene thermoplastic elastomer,5-15P,Two-pole,three-wire,grounding,Screw,0.30-0.65" in dia,Thermoplastic,Core pack
Product Name
Eaton Arrow Hart watertight straight blade plug
Catalog Number
14W47BK
UPC
032664708275
Product Length/Depth
1.81 in
Product Height
3.44 in
Product Width
1.81 in
Product Weight
0.4 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
5-15P
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Torque rating
14 lbf-inch
Voltage rating
125V
Environmental conditions
Damp/wet
Environmental resistance
IP67
Allowable wire size
#18-10 AWG
Connection type
Screw
Wiring method
Back wire
Color
Black
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Cord range
0.30-0.65" in diameter
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Santoprene thermoplastic elastomer
Material
Thermoplastic
Style type
Straight body
Type
Complex environment
Feature: IP67 watertight rating provides ingress protection against dust and water during harsh operation. Business Impact: Reduces equipment downtime and maintenance costs by preventing moisture-related failures. Application: Outdoor equipment, washdown stations, and damp industrial environments benefit from reliable power connections. Feature: 15A, 125V rating with a 5-15P configuration ensures compatibility with standard mains for industrial machinery. Business Impact: Streamlines integration with existing electrical systems, lowering integration time and field changes. Application: Control panels, conveyors, and portable power carts. Feature: Back-wire and screw-terminal wiring support offers flexible, secure terminations. Business Impact: Accelerates installation and improves termination reliability, reducing rework. Application: Field installs on equipment harnesses and maintenance shutdowns. Feature: Nickel-plated brass contact material delivers corrosion resistance and long life in demanding conditions. Business Impact: Extends service life and reduces replacement costs in challenging environments. Application: Heavy-use industrial connectors in damp or corrosive settings. Feature: Santoprene thermoplastic elastomer body with yellow visual identification enhances durability and visibility. Business Impact: Minimizes miswiring and accelerates routine inspections, improving safety and reliability. Application: Hazardous or high-traffic plant floors where quick identification matters. Feature: Cord range of 0.30–0.65 in diameter supports a variety of #18–10 AWG conductors. Business Impact: Expands wiring options and speeds up procurement for bulk projects. Application: Equipment power leads and field wiring in large installations. Feature: Bulk packaging reduces handling costs and project waste for large-scale deployments. Business Impact: Lowers overall project cost and speeds up stocking for OEMs and integrators. Application: System builds, job sites, and distribution centers.
Get a Quick Quote for a Eaton 14W47BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 14W47BK?
Enquire Now
FAQs
To install the 14W47, prepare conductors in the #18-10 AWG range and trim to the correct length. Use the back-wire clamps to insert the stripped conductors, then tighten the screws to the manufacturer’s torque specification of 14 lbf-in. Verify the connection is secure and the unit seals properly against moisture for IP67 protection.
Yes. The 14W47 is a two-pole, three-wire receptacle configured for a 5-15P connection at 125V and 15A. It is designed to mate with standard NEMA 5-15P plug configurations on equipment harnesses, making it suitable for typical industrial power circuits.
The 14W47 excels in industrial environments with damp or wet conditions, outdoor equipment, and washdown areas. Its IP67 protection and rugged construction make it ideal for machinery power feeds, conveyors, pumps, and other equipment requiring reliable, moisture-resistant connections.
The plug is cULus Listed and rated for 15A and 125V with an IP67 environmental rating. It supports back-wire and screw-terminal wiring, uses nickel-plated brass contacts, and is designed for industrial applications that require robust ingress protection and safety compliance.
Expect reduced downtime due to superior ingress protection and durable terminations. Nickel-plated brass contacts resist corrosion, extending life in harsh environments, while back-wire and screw-terminals speed installation and upgrades. Bulk packaging lowers procurement costs for large projects, yielding measurable return on investment through lower maintenance and faster commissioning.
