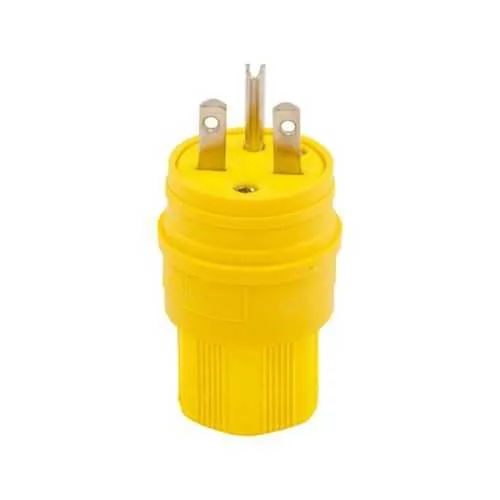

Eaton 14W49 Watertight Straight Blade Plug - IP67
Part Number: 14W49
Quick Summary
Eaton Arrow Hart watertight straight blade plug delivers rugged, back-wireable electrical connections for industrial equipment in damp environments. When moisture, vibration, or messy terminations threaten integrity, maintenance downtime and miswiring risks rise. It carries cULus Listed certification and IP67 environmental resistance, confirming safe use in wet, dusty industrial settings. Designed for 18-10 AWG back-wire with screw termination, bulk packaging supports quick stocking and faster field installs. By standardizing on a common, rugged connector, engineering teams reduce rework, improve safety, and streamline spare parts management for power distribution, control panels, and industrial tooling.
Product Information
Extended Description
14W49 Eaton: Eaton Arrow Hart watertight straight blade plug,#18-10 AWG,15A,Industrial,250V,Back wire,Yellow,Nickel-plated brass,IP67,Santoprene thermoplastic elastomer,6-15P,Two-pole,three-wire,grounding,Screw,0.30-0.65" in diameter,Thermoplastic,Bulk
Product Name
Eaton Arrow Hart watertight straight blade plug
Catalog Number
14W49
UPC
040893630991
Product Length/Depth
1.59 in
Product Height
4 in
Product Width
1.59 in
Product Weight
0.24 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
6-15P
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Torque rating
14 lbf-inch
Voltage rating
250V
Environmental conditions
Damp/wet
Environmental resistance
IP67
Allowable wire size
#18-10 AWG
Connection type
Screw
Wiring method
Back wire
Color
Yellow
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Bulk
Application
Industrial
Cord range
0.30-0.65" in diameter
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Santoprene thermoplastic elastomer
Material
Thermoplastic
Style type
Straight body
Type
Complex environment
Watertight IP67 rating plus Santoprene body provide ingress protection and chemical resistance, extending equipment life in washdown zones and outdoor installations. Feature → Business Impact → Application: Prevents corrosion and water ingress, reducing unscheduled downtime and warranty costs; ideal for conveyors, washdown zones, and outdoor facilities where exposure to humidity is constant. The 15A, 250V rating with 6-15P NEMA configuration offers compatible power delivery for standard industrial loads, enabling reliable performance in motors, compressors, and tool cords without bespoke adapters. Screw termination with back-wire capability speeds field wiring, lowers labor time, and minimizes miswiring risk during installations or maintenance. Nickel-plated brass contacts ensure consistent conductivity and corrosion resistance in harsh environments, supporting long service life in demanding plants. The compact 1.59 in by 1.59 in footprint and 4 in height fits tight panels, while bulk packaging simplifies procurement and inventory control for distributors and end users. Yellow color coding aids identification in multi-circuit lines, improving install accuracy and safety across assemblies.
Get a Quick Quote for a Eaton 14W49
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 14W49?
Enquire Now
FAQs
To install the 14W49, verify the conductors are #18-10 AWG and strip to the lengths specified by the back-wire terminals. Use the back-wire clamp or screw terminals to secure conductors, then tighten to the recommended torque of 14 lbf-in. Ensure the body seals are properly seated to preserve IP67 rating. Test continuity and inspect for any exposed conductors after assembly.
The 14W49 is rated for 15A at 250V, with a NEMA 6-15P two-pole, three-wire grounding configuration. It supports back-wire and screw termination methods for 18-10 AWG cables. This combination provides compatible power delivery for common industrial loads while maintaining a secure, grounded connection in demanding environments.
Yes. The 14W49 features IP67 environmental resistance and a Santoprene elastomer body designed for damp or wet conditions. This makes it well-suited for washdown zones, outdoor installations, and applications where moisture exposure is routine, helping to prevent ingress and prolong component life.
The 14W49 is cULus Listed, which confirms compliance with applicable safety standards for North American markets. This certification, combined with its IP67 rating, provides assurance for safe operation in harsh industrial environments and supports regulatory compliance during audits and inspections.
Expect reduced maintenance downtime due to a secure, corrosion-resistant connection and faster field wiring from back-wire and screw terminations. The rugged nickel-plated brass contacts and durable Santoprene body extend service life, while bulk packaging lowers inventory and procurement costs. Overall, you gain reliable performance and lower total cost of ownership in industrial power connections.
