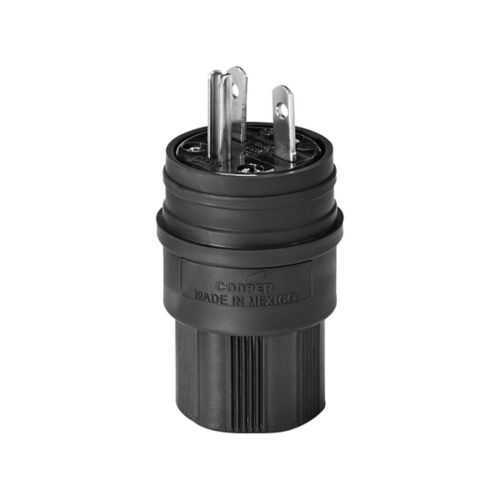

Eaton 14W49BK Watertight Plug - IP67, cULus Listed
Part Number: 14W49BK
Quick Summary
Eaton 14W49BK watertight straight blade plug provides reliable, corrosion-resistant power connections for industrial equipment in damp or wet locations. Too many installations fail in harsh environments due to inadequate sealing, IP rating gaps, or difficult back-wire terminations. This unit carries IP67 protection, cULus Listed safety certification, and robust Santoprene elastomer construction with nickel-plated brass contacts. Designed for industrial wiring devices and watertight connectors, it supports back-wire and screw connections, easing installation while delivering code-compliant, long-lasting performance in demanding environments. For procurement teams, the combination of rugged durability and straightforward installation translates to reduced downtime and lower lifecycle costs.
Product Information
Extended Description
14W49BK Eaton: Eaton Arrow Hart watertight straight blade plug,#18-10 AWG,15A,Industrial,250V,Back wire,Black,Nickel-plated brass,IP67,Santoprene thermoplastic elastomer,6-15P,Two-pole,three-wire,grounding,Screw,0.30-0.65" in dia,Thermoplastic,Core pack
Product Name
Eaton Arrow Hart watertight straight blade plug
Catalog Number
14W49BK
UPC
032664708305
Product Length/Depth
1.59 in
Product Height
4 in
Product Width
1.59 in
Product Weight
0.24 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
6-15P
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Torque rating
14 lbf-inch
Voltage rating
250V
Environmental conditions
Damp/wet
Environmental resistance
IP67
Allowable wire size
#18-10 AWG
Connection type
Screw
Wiring method
Back wire
Color
Black
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Cord range
0.30-0.65" in diameter
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Santoprene thermoplastic elastomer
Material
Thermoplastic
Style type
Straight body
Type
Complex environment
Feature → Business Impact → Application: IP67-rated, watertight protection enables operation in damp/wet environments, reducing water ingress risk and maintenance cycles, which lowers downtime and service costs on outdoor equipment or washdown areas. Application: industrial machinery, conveyors, and outdoor enclosures gain reliable power connections with minimal reseating. Feature → Corrosion-resistant nickel-plated brass contacts improve conductivity and longevity, boosting system efficiency and minimizing contact resistance over time. Application: critical power feeds in harsh environments where reliability matters. Feature → Santoprene thermoplastic elastomer housing provides chemical resistance and impact protection, improving durability against oils, solvents, and abrasion. Application: battery charging stations, controlled enclosures, and rugged equipment housings. Feature → Back-wire and screw connection options support #18-10 AWG wires, with a 14 lbf-in torque rating, enabling fast, secure terminations. Application: quick field-term adjustments during panel assembly and retrofit. Feature → NEMA 6-15P compatibility and 250V rating align with common industrial plugs, reducing the need for multiple adapters. Application: standardization across equipment fleets. Feature → Core-pack packaging and compact form factor simplify stocking and on-site handling, contributing to reduced waste and improved logistics. Application: field technicians and procurement teams benefit from streamlined maintenance and faster replacements.
Get a Quick Quote for a Eaton 14W49BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 14W49BK?
Enquire Now
FAQs
The 14W49BK supports both back-wire and screw terminal connections, allowing use with #18-10 AWG conductors. It requires a torque of 14 lbf-in for secure terminations, and uses nickel-plated brass contacts to ensure consistent conductivity. This combination is ideal for tight panel spaces where quick, reliable wiring is essential and reduces the risk of loose connections that can cause overheating.
IP67 protection seals against dust and immersion in water, safeguarding the electrical contacts and internal components from moisture ingress. The Santoprene housing provides chemical and abrasion resistance, while the watertight design minimizes corrosion risk and downtime. This makes the 14W49BK suitable for outdoor, washdown, and damp-harsh environments common in manufacturing and processing facilities.
The plug supports #18-10 AWG conductors with back-wire and screw-term compatibility, and it is a two-pole, three-wire grounding configuration (NEMA 6-15P). It is rated for 15A at 250V and uses nickel-plated brass contacts for reliable power transfer. This configuration is common in industrial settings requiring a grounded, watertight connection with straightforward field wiring.
Yes. The unit is cULus Listed, aligning with U.S. and Canadian safety standards for industrial electrical components. Its IP67 rating, rugged Santoprene body, and nickel-plated contacts support compliance in environments exposed to moisture, dust, and mechanical stress. This helps facilities meet regulatory requirements while reducing the need for alternate protective enclosures.
The combination of IP67 sealing, corrosion-resistant contacts, and robust housing lowers maintenance frequency by preventing moisture-related failures and contact degradation. Back-wire and screw-term compatibility streamline field upgrades and replacements, reducing labor time. Over time, these features translate to fewer outages, longer service life, and a lower total cost of ownership for industrial power distribution.
