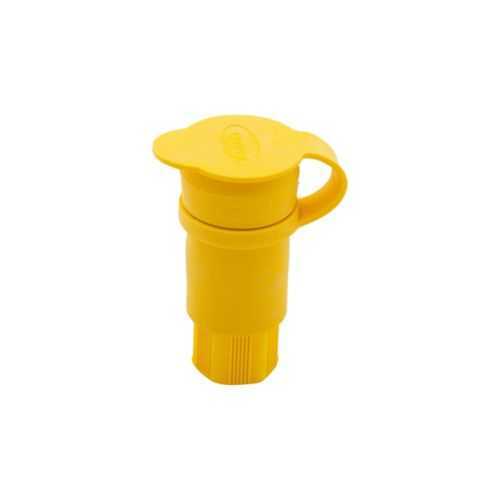

Eaton 15W33 Watertight Straight Blade Connector - IP67
Part Number: 15W33
Quick Summary
Eaton 15W33 watertight straight blade connector delivers sealed power connections for industrial equipment in harsh environments. In damp or outdoor installations, moisture ingress and loose terminations disrupt uptime and increase maintenance costs. This product is cULus Listed, IP67-rated, suitable for damp/wet conditions, and supports two-pole grounding with back-wire screw terminations. For engineers and buyers, the 15W33 offers reliable compatibility with #18-10 AWG and bulk packaging, reducing field rework and warranty exposure, while improving installation efficiency in industrial control panels. With its nickel-plated brass contacts and Santoprene body, it resists corrosion and helps keep control systems energized during washdowns and rain. Across installations, its back-wire and screw-connection approach minimizes tool requirements and speeds panel assembly.
Product Information
Extended Description
15W33 Eaton: Eaton Arrow Hart watertight straight blade connector,#18-10 AWG,20A,Industrial,125V,Back wire,Yellow,Nickel-plated brass,IP67,Santoprene thermoplastic elastomer,5-20R,Two-pole,three-wire,grounding,Screw,0.30-0.65" in dia,Thermoplastic,Bulk
Product Name
Eaton Arrow Hart watertight straight blade connector
Catalog Number
15W33
UPC
040893630960
Product Length/Depth
1.81 in
Product Height
2.56 in
Product Width
1.81 in
Product Weight
0.65 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
5-20R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Torque rating
14 lbf-inch
Voltage rating
125V
Environmental conditions
Damp/wet
Environmental resistance
IP67
Allowable wire size
#18-10 AWG
Connection type
Screw
Wiring method
Back wire
Color
Yellow
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Bulk
Application
Industrial
Cord range
0.30-0.65" in diameter
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Santoprene thermoplastic elastomer
Material
Thermoplastic
Style type
Straight body
Type
Complex environment
Feature: Watertight IP67 rating protects conductors in damp or wet environments. Business Impact: Reduces moisture-related outages and warranty exposure. Application: Outdoor equipment, wash-down areas, and manufacturing floors benefit from durable sealing. Long-tail keywords: watertight electrical connector, IP67 sealed, industrial connector. Feature: NEMA 5-20R, two-pole with three wires and grounding. Business Impact: Ensures compatible power configurations for 20A circuits, streamlining procurement and installation. Application: Machines and control panels in industrial settings. Long-tail keywords: NEMA 5-20R receptacle, 20A industrial connector, grounded receptacle. Feature: Back-wire with screw termination. Business Impact: Faster, more reliable terminations with fewer tools, reducing labor time. Application: Field wiring in harsh environments. Long-tail keywords: back wire termination, screw connection, field wiring efficiency. Feature: Nickel-plated brass contacts. Business Impact: Enhanced corrosion resistance extends connector life in abrasive or humid environments. Application: Lifespan extension for equipment in wash-down areas. Long-tail keywords: nickel-plated brass contacts, corrosion resistance, durable electrical contacts. Feature: Santoprene thermoplastic elastomer housing. Business Impact: Superior grip, flexibility, and chemical resistance; lowers inspection and maintenance costs. Application: Harsh industrial environments. Long-tail keywords: Santoprene housing, chemical resistance, rugged electrical housing. Feature: Yellow color for visibility. Business Impact: Quick identification reduces mis-wiring and installation errors. Application: Control panels and service vans. Long-tail keywords: yellow electrical connector, color-coded wiring, visibility in installations.
Get a Quick Quote for a Eaton 15W33
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 15W33?
Enquire Now
FAQs
Begin by selecting #18-10 AWG conductors and ensuring the device is de-energized. Open the back-wire terminals, insert conductors following the rated polarity, and tighten the screws to the specified torque (14 lbf-in). Verify the grounding path, close the housing, and perform a resistance and insulation check per your site standards. The back-wire design simplifies wiring, while the screw terminals provide a redundant termination method if needed.
The 15W33 is rated for 20A at 125V and accepts #18-10 AWG conductors. It is a two-pole, three-wire, grounding receptacle configured as NEMA 5-20R, designed for industrial use with back-wire and screw termination options. This combination supports reliable power delivery in demanding environments while maintaining code compliance.
Yes. The 15W33 carries IP67 environmental resistance and a damp/wet environmental condition rating, making it appropriate for outdoor installations and wash-down areas. Its Santoprene housing and nickel-plated brass contacts provide corrosion resistance, helping maintain long-term performance even in challenging industrial settings.
The connector is cULus Listed, confirming adherence to recognized safety standards in North America. It also features IP67 sealing, ensuring ingress protection against dust and water. These certifications support compliance in regulated industrial environments and assist in meeting installation and maintenance requirements for rugged equipment.
The combination of IP67 sealing, corrosion-resistant nickel-plated brass contacts, and Santoprene housing reduces moisture-related faults and maintenance needs. Quick back-wire terminations speed field wiring, lowering labor costs and downtime. Over its lifecycle, this translates to lower replacement frequency, improved uptime, and a favorable return on investment for OEMs and maintenance teams.
