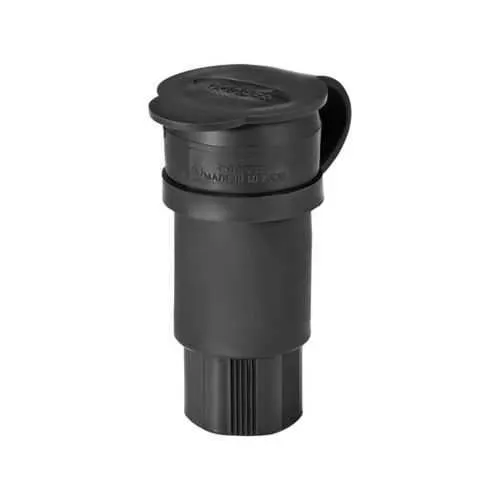

Eaton 15W33BK Watertight straight blade connector - IP67
Part Number: 15W33BK
Quick Summary
Eaton watertight straight blade connector provides reliable power connections for industrial equipment in harsh environments. In many facilities, moisture intrusion and corroded terminations drive downtime and maintenance costs. This device carries IP67 protection and cULus listing, ensuring rugged performance in damp or wet locations while meeting applicable electrical standards. It supports back-wire screw terminations for #18-10 AWG conductors and 125V operation at 20A, with nickel-plated brass contacts and a Santoprene body for lasting durability in control panels and outdoor installations. For design engineers and maintenance teams, the 15W33BK delivers predictable performance, faster serviceability, and reduced spares inventory, boosting overall equipment reliability and uptime.
Product Information
Extended Description
15W33BK Eaton: Eaton Arrow Hart watertight straight blade connector,#18-10 AWG,20A,Industrial,125V,Back wire,Black,Nickel-plated brass,IP67,Santoprene thermoplastic elastomer,5-20R,Two-pole,three-wire,grounding,Screw,0.30-0.65" dia,Thermoplastic,Core pack
Product Name
Eaton Arrow Hart watertight straight blade connector
Catalog Number
15W33BK
UPC
032664708329
Product Length/Depth
1.81 in
Product Height
2.56 in
Product Width
1.81 in
Product Weight
0.335 lb
Certifications
cULus Listed
Amperage Rating
20A
NEMA configuration
5-20R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Torque rating
14 lbf-inch
Voltage rating
125V
Environmental conditions
Damp/wet
Environmental resistance
IP67
Allowable wire size
#18-10 AWG
Connection type
Screw
Wiring method
Back wire
Color
Black
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Cord range
0.30-0.65" in diameter
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Santoprene thermoplastic elastomer
Material
Thermoplastic
Style type
Straight body
Type
Complex environment
IP67-rated housing with Santoprene thermoplastic elastomer seals the conductors against water, dust, and contaminants. This rugged construction translates to lower maintenance costs and fewer unplanned outages. It is ideal for outdoor equipment, damp enclosures, and high-humidity production lines where ingress protection is non-negotiable. With a 20A, 125V rating and a two-pole, three-wire grounding configuration (5-20R), it accommodates common industrial loads while maintaining NEC-aligned safety. The design supports back-wire and screw terminations for secure, field-repairable connections, reducing rewiring time during panel upgrades. This compatibility accelerates installation in new builds and retrofit projects. Nickel-plated brass contacts deliver reliable, low-resistance connections with superior corrosion resistance, essential in moist environments. The straight blade design minimizes alignment issues during mating in tight spaces, while the Santoprene housing provides impact resistance. Cord range supports 0.30–0.65 in diameter conductors, enabling flexible harness integration in existing systems. Core-pack packaging aids stocking and field deployability, balancing performance, cost, and serviceability in industrial power distributions.
Get a Quick Quote for a Eaton 15W33BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 15W33BK?
Enquire Now
FAQs
Power must be off before installation. Prepare #18-10 AWG conductors and insert into the back-wire terminals, then secure with the provided screws. Ensure the nickel-plated brass contacts are fully seated and the Santoprene housing is closed to maintain IP67 protection. Verify the 14 in-lbf torque on the terminal screws and test continuity after installation to confirm a solid, watertight connection.
The 15W33BK is rated for 20A at 125V and uses a two-pole, three-wire grounding receptacle (5-20R). It supports #18-10 AWG conductors with back-wire termination and requires a minimum clearance for safe operation. It is suited for industrial loads in control panels and equipment enclosures, with a torque rating of 14 lbf-in to ensure consistent clamping force.
Yes. The connector is IP67 rated and designed for damp or wet locations, providing robust ingress protection. It is cULus Listed, aligning with common NEC safety standards, making it appropriate for outdoor equipment, damp control panels, and industrial installations where moisture resistance is critical.
The product carries cULus Listed certification, indicating conformance to safety standards for North American electrical equipment. This certification supports compliance with NEC requirements and reduces risk during audits. The IP67 environmental protection rating further ensures suitability for harsh, wash-down, or outdoor environments, improving reliability in challenging industrial settings.
The combination of IP67 protection, durable nickel-plated brass contacts, and Santoprene housing reduces corrosion and moisture-related failures, lowering maintenance time and unplanned downtime. Back-wire plus screw termination speeds field service, enabling quicker panel upgrades and lower labor costs. Overall, these features contribute to extended service intervals and a measurable return on investment in industrial power distribution.
