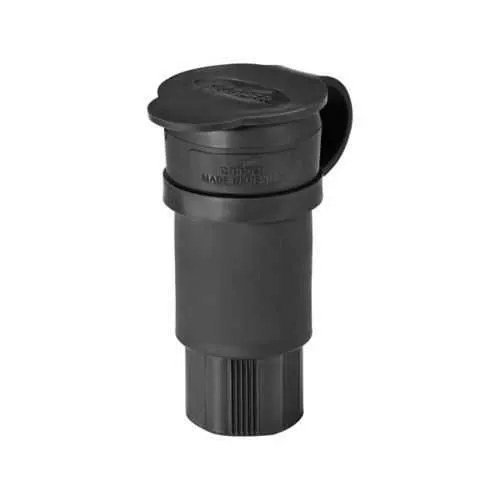

Eaton 15W47BK Watertight Straight Blade Connector - IP67
Part Number: 15W47BK
Quick Summary
The Eaton 15W47BK watertight straight blade connector delivers reliable power distribution for industrial enclosures and outdoor equipment. Maintenance teams struggle with moisture ingress and failed terminations in harsh environments. That is why this connector carries cULus listing, IP67 protection for damp or wet conditions, and rugged back-wire screw terminals. Engineers value a device-grade solution for industrial control panels and field installations, reducing downtime and simplifying compliance. Designed for #18-10 AWG wires and back-wire connections, it supports reliable, code-compliant wiring in washdown and outdoor equipment. Back-wire and screw-terminal options simplify retrofits and new builds alike. This combination speeds installation and reduces field errors.
Product Information
Extended Description
15W47BK Eaton: Eaton Arrow Hart watertight straight blade connector,#18-10 AWG,15A,Industrial,125V,Back wire,Black,Nickel-plated brass,IP67,Santoprene thermoplastic elastomer,5-15R,Two-pole,three-wire,grounding,Screw,0.30-0.65" dia,Thermoplastic,Core pack
Product Name
Eaton Arrow Hart watertight straight blade connector
Catalog Number
15W47BK
UPC
032664708336
Product Length/Depth
1.69 in
Product Height
2.78 in
Product Width
1.69 in
Product Weight
0.4 lb
Certifications
cULus Listed
Amperage Rating
15A
NEMA configuration
5-15R
Number Of Poles
Two-pole
Number of wires
3
Receptacle type
Two-pole, three-wire, grounding
Torque rating
14 lbf-inch
Voltage rating
125V
Environmental conditions
Damp/wet
Environmental resistance
IP67
Allowable wire size
#18-10 AWG
Connection type
Screw
Wiring method
Back wire
Color
Black
Contact material
Nickel plated brass
Design type
Straight blade
Packaging type
Core pack
Application
Industrial
Cord range
0.30-0.65" in diameter
Design type
Straight blade
Device grade
Watertight special use
Face/body material
Santoprene thermoplastic elastomer
Material
Thermoplastic
Style type
Straight body
Type
Complex environment
The IP67-rated watertight housing paired with a Santoprene thermoplastic elastomer body provides robust moisture sealing and resistance to damp environments, reducing corrosion risk and field repairs in washdown areas and outdoor installations. This durability translates into extended service life and lower maintenance costs for industrial automation panels and equipment. The two-pole, three-wire grounding configuration supports safe, code-compliant power distribution in automation systems and conveyors, delivering reliable operation in challenging environments. Back-wire screw terminals offer flexible wiring options that speed installation, simplify retrofits, and minimize downtime during panel upgrades. Wire compatibility with #18-10 AWG and a cord-diameter range of 0.30–0.65 in ensures secure connections in compact enclosures, preserving conductor density and electrical margin. Nickel-plated brass contacts and a 14 lbf-in torque rating guarantee consistent seating and low contact resistance through vibration and thermal cycling. The device is cULus Listed and available in a core-pack packaging format to support streamlined procurement for OEMs and service teams.
Get a Quick Quote for a Eaton 15W47BK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 15W47BK?
Enquire Now
FAQs
The 15W47BK is a two-pole, three-wire grounding receptacle configured as a 5-15R style outlet. It uses back-wire screw terminals and accepts wires from #18 to #10 AWG, 0.30–0.65 in diameter. Rated at 125V and 15A, this connector ensures secure, compliant wiring in industrial panels and field installations. Back-wire and screw-terminal options simplify retrofits and new builds alike.
Yes. The 15W47BK extends protection in damp or wet industrial settings thanks to its IP67 rating and Santoprene body, which resist moisture ingress and harsh chemical exposure common in washdown zones. The nickel-plated brass contacts maintain conductivity under vibration, while the two-pole, three-wire grounding configuration supports safe, code-compliant power distribution in control panels, conveyors, and outdoor equipment.
Installation follows standard back-wire screw practices. Use the back-wire terminals or screw connections per your panel design, torque to 14 lbf-in, and ensure conductors are within #18-10 AWG. The 1.69 in length and 2.78 in height create compact footprints for tight enclosures, while nickel-plated brass contacts ensure durable contact resistance during vibration and thermal cycling.
Yes. The 15W47BK is cULus Listed and tested for industrial use, with an IP67 rating for ingress protection against dust and water. Its 125V/15A rating and NEMA 5-15R style compatibility align with common electrical codes for control panels, outdoor installations, and washdown-ready equipment, helping you pass regulatory reviews without redesign.
Durability comes from nickel-plated brass contacts and a Santoprene body that resist moisture, oils, and abrasion common in industrial environments. The thermoplastic housing and black color aid heat dissipation and visibility; combined with a 14 lbf-in torque rating for secure mating, this connector maintains low contact resistance through temperature cycling and operational wear.
