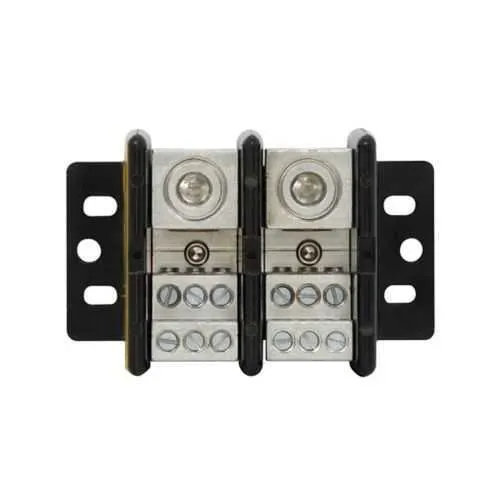

Eaton 16023-2 Power distribution block - UL 94-V0
Part Number: 16023-2
Quick Summary
Eaton 16023-2 power distribution block distributes power in control panels and electrical enclosures. Engineers struggle with compact, high-current blocks that maintain safety and reliability under demanding operating conditions. This model offers UL 94-V0 flammability and RoHS compliance, plus a 600 Vac / 600 Vdc rating for robust, regulated performance. Its two-pole, molded thermoplastic design provides insulation and a tight footprint, helping you fit more channels in crowded panels. For procurement teams, the combination of safety certifications, solid amperage, and space-efficient form factor translates to lower installation costs and fewer redesigns.
Product Information
Extended Description
16023-2 Eaton: Eaton Bussmann series power distribution block, Flammability Rating UL 94-V0, 600 Vac, 600 Vdc, 310 A, Two-pole, Black, Molded Thermoplastic
Product Name
Eaton Bussmann series power distribution block
Catalog Number
16023-2
UPC
051712207775
Product Length/Depth
4.15 in
Product Height
2.5 in
Product Width
2 in
Product Weight
0.65 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Certifications
Contact Manufacturer
Amperage Rating
310A
Voltage rating
600 Vac, 600 Vdc
Color
Black
Material
Molded thermoplastic
Number Of Poles
Two-pole
Type
Power distribution block
Application
Power distribution
Special features
Flammability Rating UL 94-V0
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - 16023-2
Feature: 310 A amperage rating. Business impact: enables higher density power distribution with fewer components and reduced wiring complexity, lowering lifecycle costs. Application: ideal for control panels and industrial equipment requiring robust current handling. Feature: 600 Vac / 600 Vdc voltage rating. Business impact: supports both AC and DC power distribution in mixed-load environments, improving system reliability. Application: machine controls, drives, and panel power rails. Feature: UL 94-V0 flammability and RoHS compliance. Business impact: enhances safety certification alignment and regulatory compliance, reducing risk during audits. Application: any safety-critical enclosure in manufacturing settings. Feature: Molded thermoplastic housing and two-pole design. Business impact: provides excellent insulation and vibration resistance while maintaining a compact footprint. Application: space-constrained panels where dependable isolation is essential. Feature: Compact dimensions and weight (4.15 in x 2 in x 2.5 in, 0.65 lb). Business impact: saves panel space and simplifies installation in tight cabinets. Application: modular power distribution in multi-channel control systems. Feature: Black color and Bussmann series lineage. Business impact: familiar form factor for integration into existing sets and streamlined spare-part compatibility. Application: retrofit or new installations in industrial control environments.
Get a Quick Quote for a Eaton 16023-2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16023-2?
Enquire Now
FAQs
The 16023-2 is a two-pole, molded thermoplastic power distribution block rated for 310 A and 600 Vac/600 Vdc. It fits standard control-panel environments where high current must be routed efficiently. Ensure panel space accommodates its 4.15 in length, 2 in width, and 2.5 in height, with wiring rated for the amperage and voltage specified.
The Eaton 16023-2 supports an amperage rating of 310 A and voltage ratings of 600 Vac and 600 Vdc. These ratings make it suitable for high-current power distribution in industrial control panels, motor drives, and other equipment requiring robust current handling across AC and DC domains.
Yes, the 16023-2 is RoHS compliant. It also features a UL 94-V0 flammability rating, providing a high level of safety in enclosure environments. The molded thermoplastic housing ensures insulation and protection against environmental factors, while the two-pole design simplifies safe power routing in compact spaces.
You can access the Eaton specification sheet for 16023-2 at Eaton’s site (Eaton Specification Sheet - 16023-2) and the Bussmann series catalogs, including the full-line no. 1007, via the provided catalog links. These documents offer detailed dimensions, ratings, and application guidance to support design and procurement decisions.
Common use cases include power distribution in control panels for manufacturing equipment, machines with mixed AC/DC loads, and compact enclosures where space is at a premium. Its high current rating, UL 94-V0 safety, and RoHS compliance help reduce wiring complexity, improve reliability, and simplify compliance during audits and maintenance.
