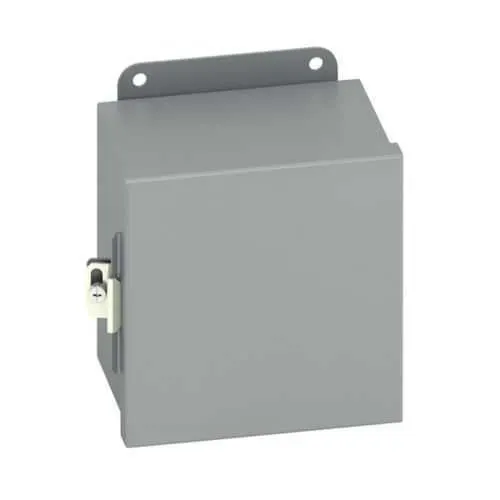

Eaton 16106-12CHC JIC Panel Enclosure - NEMA 12
Part Number: 16106-12CHC
Quick Summary
Eaton 16106-12CHC JIC panel enclosure is a rugged NEMA 12 wall-mount cabinet for compact control panels. Many engineers struggle with moisture ingress, cramped spaces, and unreliable gasket seals in compact electrical cabinets. UL 508A and CSA C22.2 certifications, plus a NEMA 12 rating, confirm electrical safety and dust/moisture protection. As part of the Eaton B-Line family, the wall-mount design and external mounting feet simplify installation across panels with limited space while delivering long-term reliability. The 12CHC enclosure’s 16 gauge carbon steel construction, hinged door, and seamless poured-in-place gasket offer a balance of rigidity and serviceability for industrial automation applications.
Product Information
Extended Description
16106-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 10" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16106-12CHC
UPC
782051700305
Product Length/Depth
6 in
Product Height
16 in
Product Width
10 in
Product Weight
12.6 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
The NEMA 12 rated JIC panel enclosure with a hinged cover and external mounting feet delivers robust dust and moisture protection in tight spaces. This translates to reduced downtime and longer mean time between failures for control panels in manufacturing lines and process equipment setups. The 16 gauge carbon steel construction and 16 in height provide structural rigidity without excessive weight, enabling safer handling and easier mounting on walls or fixed supports, especially in retrofit projects where space is at a premium. Seamless poured-in-place gasket and cont. piano hinge improve door sealing and serviceability, minimizing condensation and ingress during frequent access for maintenance and testing in harsh industrial environments. UL 508A, CSA C22.2, and NEMA 12 certifications support compliance and safe operation, reducing sourcing risk and expediting approvals for procurement teams. External mounting feet add versatility for wall installations in constrained electrical rooms, while the 12CHC model aligns with Eaton B-Line compatibility and standard enclosure footprints.
Get a Quick Quote for a Eaton 16106-12CHC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16106-12CHC?
Enquire Now
FAQs
The 16106-12CHC is designed for wall mounting and includes external mounting feet for flexible placement. Its hinged cover and compact footprint enable quick access to internal components while maintaining a secure seal. This makes retrofits and new installs straightforward in limited-space electrical rooms or equipment cabinets.
Key specs include 16 in height, 10 in width, and 6 in depth with a 12.6 lb weight. Constructed from 16 gauge carbon steel with a painted ANSI 61 gray finish, it carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating for dust and non-wplash moisture protection in indoor industrial settings.
No, NEMA 12 provides dust and splash protection but is not intended for washdown or outdoor exposure. It is best suited for indoor industrial or commercial environments where moderate moisture and particulate exposure are expected but not direct spray or immersion.
The enclosure is UL 508A and CSA C22.2 certified and carries a NEMA 12 rating. These certifications support electrical safety, quality assurance, and compliance with many industrial safety and electrical enclosure standards, aiding procurement approvals and customer audits.
The seamless gasket and hinged door design reduce ingress of dust and moisture and simplify routine maintenance. Its robust carbon steel construction offers long service life with minimal maintenance, lowering replacement costs and downtime while ensuring consistent performance in manufacturing and process environments.
