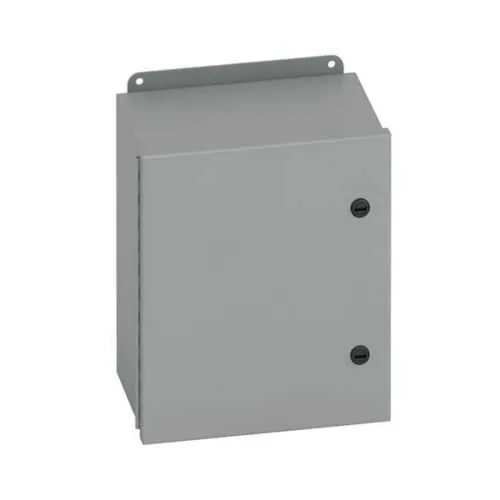

Eaton 161410-4QT JIC Panel Enclosure - NEMA 4
Part Number: 161410-4QT
Quick Summary
Eaton 161410-4QT JIC panel enclosure protects electrical gear in industrial control panels. Engineers often wrestle with keeping equipment safe from dust, moisture, and washdowns while preserving fast access for commissioning and maintenance. The unit is UL 50 and CSA C22.2 listed with a NEMA 4 rating, delivering reliable protection in harsh environments, indoors or outdoors. Built as a wall-mount enclosure in ANSI 61 gray with a seamless gasket, it supports compliance and long-term durability. Its 16 gauge carbon steel body and external feet make installation predictable, while the hinged cover and 1/4-turn latches support swift service and minimal downtime.
Product Information
Extended Description
161410-4QT Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 10" length, 14" width, NEMA 4, Hinged cover, 4QT enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
161410-4QT
UPC
782051588521
Product Length/Depth
10 in
Product Height
16 in
Product Width
14 in
Product Weight
19.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4QT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4
Country of origin
US
Feature: Rugged 16 gauge carbon steel construction with ANSI 61 gray paint and a seamless poured-in-place gasket. Business Impact: Delivers durable protection against impact, corrosion, and ingress, extending service life in demanding environments. Application: Ideal for factory control panels, process controls, and outdoor electrical rooms where reliability and long intervals between maintenance matter. Feature: NEMA 4 rated enclosure with UL 50 and CSA C22.2 listings. Business Impact: Ensures regulatory compliance and operating integrity in damp, dusty, or washdown areas, reducing audit risk. Application: Suitable for manufacturing floors, chemical plants, and water-intensive facilities. Feature: Wall-mount design with external mounting feet and compact 4QT footprint. Business Impact: Simplifies installation and reduces space requirements in tight electrical closets or equipment rooms. Application: Works well for retrofit projects or new builds where footprint efficiency matters. Feature: Hinged cover with continuous piano hinge and 1/4-turn latches. Business Impact: Enables rapid access for maintenance while maintaining secure closure and gasket integrity. Application: Service and commissioning of control panels, motor starters, and I/O modules without hot-work risk. Feature: Small single door, 16" height x 14" width x 10" depth with 19.6 lb weight and external feet. Business Impact: Predictable handling during installation and reduced labor costs; supports quick field adjustments. Application: Ideal for wall-mounted enclosures in constrained spaces with straightforward mounting and service routines.
Get a Quick Quote for a Eaton 161410-4QT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 161410-4QT?
Enquire Now
FAQs
The 161410-4QT is a JIC panel enclosure designed for Eaton B-Line series installations and typical wall-mounted panels. It uses external mounting feet for quick alignment on standard wall substrates and a hinged, 1/4-turn latch design for rapid service. Its 16 gauge carbon steel body and external feet fit common electrical cabinets, reducing integration risk.
It carries a NEMA 4 rating, providing protection against dust, water ingress, and washdown environments. The seamless poured-in-place gasket and a hinged, weather-sealed cover maintain enclosure integrity during routine cleaning. In factory floors or outdoor zones, this combination minimizes corrosion risk and uptime interruptions, supporting long service life even under aggressive process conditions.
Yes. The 161410-4QT carries UL 50 and CSA C22.2 listed certifications, aligning with regulatory requirements for electrical enclosures in many industrial facilities. It also meets NEMA 4 protection, which supports hazardous or damp environments. When pairing with compatible components, you can maintain compliance while simplifying procurement and reducing risk during audits.
For installation, plan wall mounting with external feet and space for 16x14x10 enclosure dimensions. The 19.6 lb weight supports single-person handling, while the hinged door with continuous piano hinge and 1/4 turn latches enables fast access during commissioning and maintenance. Ensure adequate clearance for cable entries and gasket seating to preserve NEMA 4 integrity.
Investing in the 161410-4QT reduces maintenance time and downtime by simplifying access with its hinged door and reliable latching. The corrosion-resistant carbon steel and poured gasket extend service life in harsh environments, lowering replacement costs. Coupled with UL and CSA certifications, you minimize risk during audits, supporting predictable maintenance intervals and improved overall uptime.
