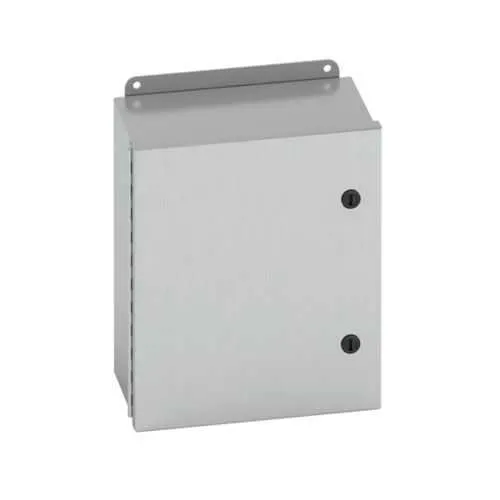

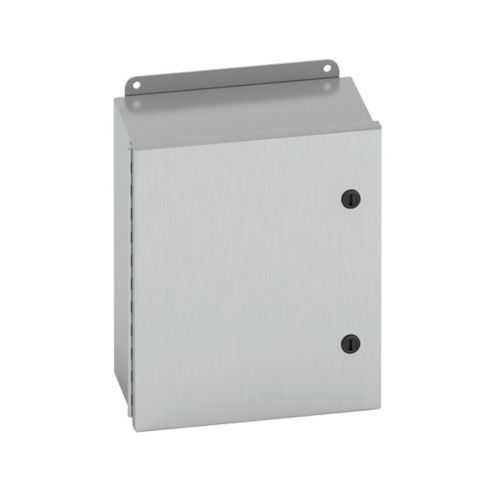

Eaton 161410-4XSQT JIC panel enclosure - NEMA 4X
Part Number: 161410-4XSQT
Quick Summary
Eaton 161410-4XSQT JIC panel enclosure provides rugged, weather-resistant control housing for industrial electrical panels. Engineers often struggle with corrosion, ingress, and downtime when selecting enclosures for harsh environments. This B-Line series enclosure meets UL 50, CSA C22.2, and NEMA 4X ratings, reinforcing compliance and reliability in demanding applications. Designed for wall-mount use with external feet, it features 304 stainless steel construction, a seamless poured-in-place gasket, and a continuous piano hinge to reduce service time and extend life in food processing, water treatment, and general industrial automation.
Product Information
Extended Description
161410-4XSQT Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 10" length, 14" width, NEMA 4X, Hinged cover, 4XSQT enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
161410-4XSQT
UPC
782051882162
Product Length/Depth
10 in
Product Height
16 in
Product Width
14 in
Product Weight
19.3 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSQT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4X
Country of origin
US
Material and construction delivers robust corrosion resistance in wash-down and chemical settings; 304 stainless steel with 16 gauge wall provides long-term durability and structural integrity, supporting reliable operation for automation systems in harsh environments (stainless steel enclosure for outdoor or wet locations). The sealed, hinged cover with a seamless gasket reduces ingress and maintenance costs, while the NEMA 4X rating offers protection against rain, dust, and corrosion, ensuring continuous operation of control panels in challenging facilities. Wall-mount compatibility with external mounting feet simplifies installation on existing structures and minimizes field modification time, contributing to faster project completion and lower labor costs. The continuous piano hinge and 1/4 turn latches improve closure reliability and service access, supporting quick inspections and safer, maintenance-friendly panel updates. This enclosure also supports panel mounting approaches and is compatible with standard backplanes and components used in food & beverage, water treatment, and general industrial automation applications.
Get a Quick Quote for a Eaton 161410-4XSQT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 161410-4XSQT?
Enquire Now
FAQs
The 161410-4XSQT is designed for industrial automation and outdoor electrical control panels. Its 304 stainless steel body, 16 gauge wall, and NEMA 4X protection make it well suited for wash-down facilities, food and beverage processing, water treatment, and other environments requiring corrosion resistance and reliable enclosure integrity.
Yes. With a NEMA 4X rating and a seamless poured-in-place gasket, the enclosure delivers ingress protection against water, dust, and corrosion. The 304 stainless steel construction further enhances resistance to wash-down chemicals and harsh environmental exposure, making it a dependable choice for outdoor or wet environments.
The enclosure measures 16 inches high, 14 inches wide, and 10 inches deep, weighing about 19.3 pounds. It is wall-mountable with external mounting feet, and features a hinged cover with a continuous piano hinge and 1/4 turn latches for secure closure and easy service access.
This Eaton panel enclosure aligns with UL 50, CSA C22.2, and NEMA ratings, reinforcing compliance and reliability for industrial control panels in regulated environments. Its NEMA 4X rating provides robust protection against water and corrosion, supporting safer operation in demanding facilities.
The seamless gasket, durable 304 stainless steel, and hinged closure minimize ingress-related maintenance and replacement costs. External feet simplify mounting, reducing installation time. Over the lifecycle, this translates to lower labor costs, reduced downtime, and improved uptime for critical automation and electrical systems.
