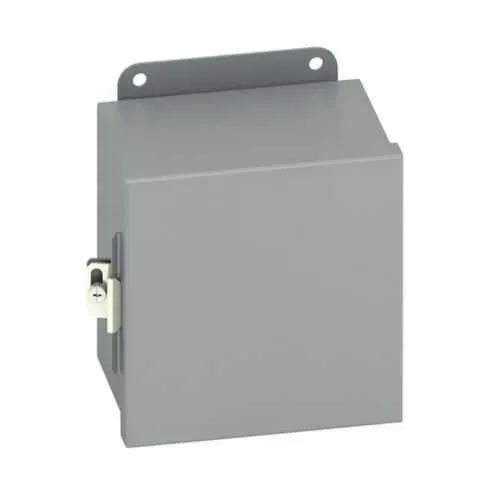

Eaton 16146-12CHC JIC panel enclosure - NEMA 12 & UL 508A
Part Number: 16146-12CHC
Quick Summary
Eaton 16146-12CHC JIC panel enclosure offers rugged, ready-to-mount housing for industrial control panels. Facilities often struggle with secure, code-compliant enclosures that resist dust, moisture, and door access that can disrupt operations. The unit carries UL 508A and CSA C22.2 listings and a NEMA 12 rating, signaling reliable protection for indoor, harsh environments. With carbon steel construction, 16 gauge wall, and ANSI 61 gray painted finish, it withstands routine maintenance cycles. The enclosure supports wall mounting with external feet, and its continuous piano hinge simplifies access while preserving sealing integrity. For distributors and integrators, this model provides predictable compatibility with Eaton B-Line components and cost-effective service life in automation deployments.
Product Information
Extended Description
16146-12CHC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 12, Hinged cover, 12CHC enclosure, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-12CHC
UPC
782051750904
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
NEMA 12 protection with seamless gasket and 16 gauge carbon steel construction enhances dust and moisture resistance, reducing field maintenance and downtime. Feature → Business Impact → Application: The painted ANSI 61 gray finish combined with a hinged cover and continuous piano hinge delivers quick, tool-free access to internal components, accelerating maintenance and minimizing panel exposure to ambient contaminants in harsh factory environments. Application: indoor control panels in packaging, automotive, and process industries where reliability matters. Feature → Business Impact → Application: External mounting feet enable fast, secure wall mounting, simplifying retrofits and upgrades in constrained electrical rooms. Application: retrofit projects and new installs requiring compact footprint with easy serviceability. Feature → Business Impact → Application: UL 508A and CSA C22.2 listings plus a NEMA 12 rating ensure compliance and safer operation, reducing audit findings and boosting plant safety. Application: regulated environments and contractor projects. Feature → Business Impact → Application: compatibility with Eaton B-Line accessories and panel clamps supports scalable enclosure ecosystems, improving long-term maintenance planning and spare-part stock management. Application: modular automation installations and multi-panel lineups. The combination of a robust 16 in height x 14 in width with external feet supports versatile layouts, shortens installation time, and enables predictable total-cost-of-ownership through durable, easily serviced enclosures.
