Eaton 16146-12CHCS JIC panel enclosure - NEMA 12
Part Number: 16146-12CHCS
Quick Summary
The Eaton B-Line series JIC panel enclosure protects electrical controls in industrial wall-mount applications while keeping panels organized and accessible. Engineers commonly struggle with dust ingress, door misalignment, and service downtime in compact control housings; this enclosure addresses those challenges with a robust carbon steel body and a trusted latch. It carries UL 508A, CSA C22.2, and NEMA 12 ratings, underscoring compliance for safety and reliability in demanding environments. By pairing a durable paint finish with a seamless gasket, this solution offers long-term protection, easy maintenance, and faster installation for panel builders and maintenance teams alike. For space-constrained projects, its wall-mount design and external feet deliver practical value without compromising protection or accessibility.
Product Information
Extended Description

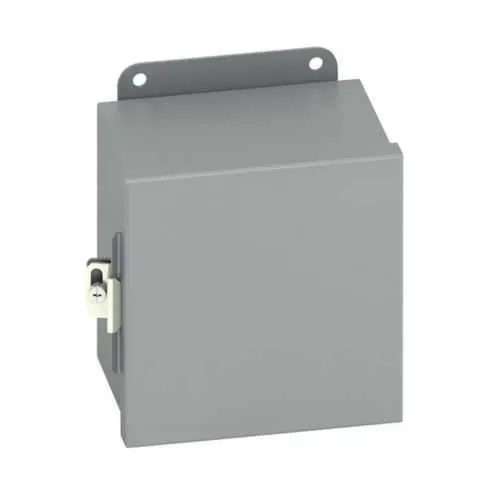

16146-12CHCS Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-12CHCS
UPC
782051017045
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.9 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12CHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge, panel mount,plated door clamps
NEMA Rating
12
Country of origin
US
Feature: 16 gauge carbon steel body with a 16 gauge wall thickness provides rugged enclosure protection. Business Impact: Reduces risk of impact damage and prolongs service life in busy industrial spaces. Application: Ideal for small single-door JIC panels on factory walls where reliability and durability matter. Feature: NEMA 12 rating and a seamless poured-in-place gasket deliver dust and splash protection. Business Impact: Maintains internal cleanliness and lowers maintenance costs by minimizing ingress, leading to fewer panel faults. Application: Suitable for manufacturing floors, distribution panels, and utility rooms with moderate environmental exposure. Feature: Hinged cover with cont. piano hinge and plated door clamps ensures smooth operation and consistent door alignment. Business Impact: Improves serviceability, reduces door sag, and extends enclosure lifespan. Application: Frequent access control panels and switchgear housings. Feature: External mounting feet and wall mounting method enable quick, secure installations. Business Impact: Speeds up installation, reduces labor, and simplifies retrofits in retrofit projects. Application: Wall-mounted enclosures in tight spaces where mounting reliability matters. Feature: 16 in height, 14 in width, 6 in depth with a painted ANSI 61 gray finish offers a compact footprint and clear identification. Business Impact: Maximizes usable space while preserving visual consistency across panels. Application: Small control panels and junction boxes in electrical rooms and manufacturing lines.
