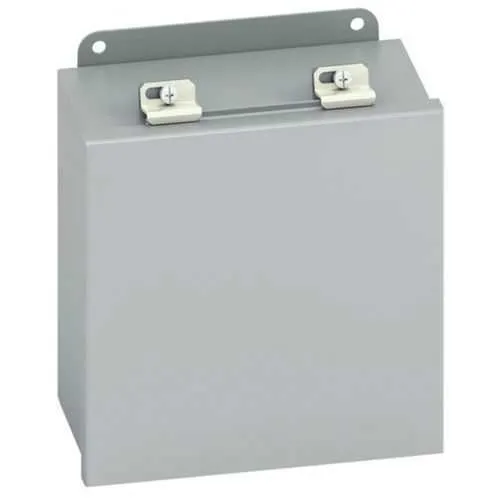

Eaton 16146-12LC JIC panel enclosure - NEMA 12
Part Number: 16146-12LC
Quick Summary
The Eaton 16146-12LC JIC panel enclosure protects electrical panels in industrial environments while enabling straightforward wall mounting. This unit helps reduce downtime and field service by keeping components clean, dry, and organized despite dust, moisture, or vibration. It carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating to support compliance and safer operation. Designed with 16 in height, 14 in width, and 6 in depth, it pairs with the B-Line family accessories for scalable, cost-effective control panels, delivering reliable protection and easy integration in industrial automation. For engineers and maintenance teams, it translates to faster installs, fewer field visits, and long-term cost effectiveness.
Product Information
Extended Description
16146-12LC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 12, Screw cover, 12LC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-12LC
UPC
782051730906
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.6 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12LC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Semi-hinged
Special features
Jack chain,panel mount provisions,plated doorclamp
NEMA Rating
12
Country of origin
US
Feature: Wall-mount design with external mounting feet enables flexible installation and rapid deployment. Business Impact: Reduces installation time and supports mounting on various wall surfaces, improving site layout efficiency. Application: Ideal for plant rooms, equipment racks, and wall-mounted control panels in manufacturing environments. Feature: NEMA 12 rating with seamless gasket protection against dust and moisture. Business Impact: Keeps sensitive electrical components shielded from typical workshop contaminants, lowering maintenance frequency and failure risk. Application: Manufacturing floors, paint shops, and other environments with moderate exposure to particulates and humidity. Feature: Carbon steel body with 16 gauge wall thickness and ANSI 61 gray paint finish. Business Impact: Delivers durable enclosure protection that withstands routine handling and mounting stresses, reducing replacement costs. Application: Heavy-duty industrial automation panels subject to routine servicing. Feature: Screw cover and semi-hinged closure. Business Impact: Provides quick, secure access for wiring changes and inspections, shortening maintenance windows. Application: Control panels requiring regular updates or reconfiguration. Feature: External mounting feet and wall-mount compatibility. Business Impact: Facilitates anchoring to concrete walls or elevated surfaces, enabling flexible installations in tight spaces. Application: Compact plant layouts where space is at a premium. Feature: Regulatory compliance with UL 508A, CSA C22.2, and NEMA rating. Business Impact: Supports audit readiness and safe operation, reducing compliance risk and operational downtime. Application: Facilities adhering to strict electrical safety standards and industry codes.
Get a Quick Quote for a Eaton 16146-12LC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-12LC?
Enquire Now
FAQs
The enclosure is designed for wall mounting using external mounting feet, enabling secure installation on vertical surfaces. External feet accommodate standard anchors or mounting hardware, allowing quick positioning in tight spaces. When planning installation, ensure sufficient wall strength and door clearance for service access to meet code requirements and preserve ease of maintenance.
This enclosure carries UL 508A and CSA C22.2 certifications along with a NEMA 12 rating, signaling compliance with key electrical safety standards and environmental protection. For facilities, these certifications support regulatory audits, reduce project risk, and help demonstrate safety and compatibility for control-panel assemblies in industrial settings.
Yes. The NEMA 12 rating and seamless gasket seal provide protection against dust, dirt, and light moisture ingress typical of indoor industrial spaces. For washdown or heavy humidity, consider additional protective measures or a higher-rated enclosure, but this model delivers robust performance for many standard factory environments.
The 16146-12LC is designed to accommodate a small single-door setup with external feet and panel-mount provisions. For customization, plan around the 16 in height, 14 in width, and 6 in depth and assess whether additional internal accessories or adapters are needed. Always verify component clearances and mounting hardware compatibility before integration.
The screw-access design, gasketed seal, and durable carbon steel body reduce maintenance downtime by enabling rapid access and reliable protection from dust and moisture. Over time, this can lower repair costs, extend component life, and improve system uptime—factors that translate to measurable ROI in continuous-operation environments.
