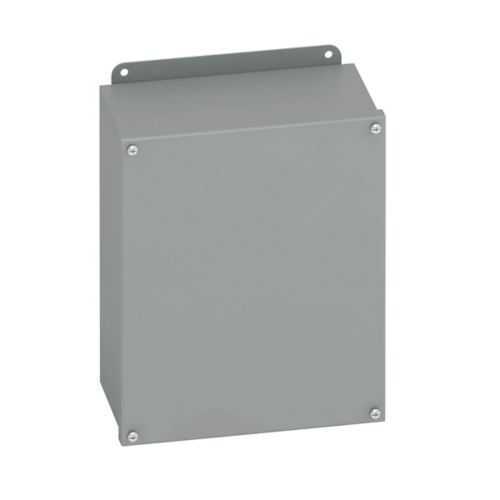

Eaton 16146-12SC JIC Panel Enclosure - NEMA 12 UL 50
Part Number: 16146-12SC
Quick Summary
The Eaton 16146-12SC JIC panel enclosure protects control panels in industrial environments with a compact, wall-mount design. Engineers often struggle with limited space and the need for reliable protection against dust, moisture, and oil. This enclosure carries UL 50 and CSA C22.2 certifications and is NEMA 12 rated, ensuring dependable performance in harsh conditions. With carbon steel construction, an oil-resistant gasket, and external mounting feet, it integrates cleanly with automation cabinets and helps streamline maintenance and compliance.
Product Information
Extended Description
16146-12SC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 12, Screw cover, 12SC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-12SC
UPC
782051200300
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.4 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
12SC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Captive plated screws, panel mount provisions
NEMA Rating
12
Country of origin
US
Feature: Compact JIC enclosure footprint → Business Impact: Maximizes usable panel space and simplifies cabinet layouts, reducing installation time and overall footprint. Application: Ideal for machine control panels in space-constrained automation environments. Feature: NEMA 12 with UL 50 and CSA C22.2 certifications → Business Impact: Delivers proven ingress protection and regulatory compliance, lowering field failures and warranty risk. Application: Harsh manufacturing floors, dusty conveyors, and wet process lines benefit from proven enclosure protection. Feature: Carbon steel, 16 gauge wall, oil-resistant gasket → Business Impact: Delivers durable, chemically resistant housing that withstands routine maintenance and oil exposure, extending service life. Application: Chemical plants, automotive assemblies, and industrial machinery cabinets require robust sealing. Feature: External mounting feet, wall mounting, screw cover → Business Impact: Enables fast, secure installation with tamper-resistant finishing and easy service access. Application: Standardized wall-mount installations in control rooms and equipment rooms. Feature: Captive screws, panel mount provisions → Business Impact: Reduces installation time and hardware misplacement while improving field service efficiency. Application: End-users upgrading or replacing aging enclosures. Feature: Painted ANSI 61 gray finish → Business Impact: Provides corrosion resistance and a clean, maintenance-friendly appearance aligned with industry norms. Application: Indoor and semi-enclosed installations in utilities and manufacturing facilities.
Get a Quick Quote for a Eaton 16146-12SC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-12SC?
Enquire Now
FAQs
The 16146-12SC is designed for wall mounting with external mounting feet and features a screw cover for a clean, tamper-resistant finish. Its compact footprint supports quick positioning in tight control panels and reduces wiring congestion. For service access, the door and mounting provisions are arranged to minimize disassembly time during maintenance.
This enclosure is UL 50 and CSA C22.2 certified and rated NEMA 12, indicating proven enclosure integrity against dust, moisture, and minor oil exposure. These certifications help ensure regulatory compliance, improve supplier reliability, and reduce risk during audits and inspections.
Yes. The combination of a 16 gauge carbon steel body and an oil-resistant gasket provides reliable sealing against dust, dirt, and light oil exposure typical in industrial settings. The NEMA 12 rating confirms suitability for indoor and semi-enclosed installations where non-hazardous contaminants are present.
The enclosure measures 16 inches in height, 14 inches in width, and 6 inches in depth, with an approximate weight of 15.4 pounds. These specs support compact mounting in machine corners or narrow control panels while maintaining robust protection for internal components.
Captive plated screws, panel mount provisions, and external mounting feet simplify assembly, service, and future upgrades. The screw cover provides a neat finish, while the ANSI 61 gray painted surface ensures compatibility with standard industrial environments and makes cleaning and repainting straightforward during plant maintenance.
