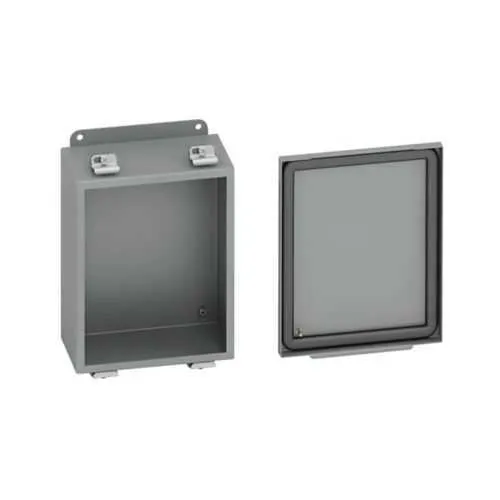

Eaton 16146-4LC JIC panel enclosure - NEMA 4
Part Number: 16146-4LC
Quick Summary
The Eaton 16146-4LC JIC panel enclosure is designed to protect electrical gear in harsh industrial environments and streamline control-panel installations. Operators often struggle with moisture, dust, and mounting constraints that threaten uptime and safety, especially in outdoor or dirty environments. This enclosure delivers UL 50, CSA C22.2, and NEMA 4 ratings to ensure regulatory compliance and reliable operation across demanding conditions. Its wall-mount design, 16 gauge carbon steel construction, and seamless gasket deliver long-term durability, while the screw-cover access simplifies maintenance. By combining robust protection with straightforward installation, this solution supports faster panel upgrades, reduced maintenance costs, and improved overall equipment reliability for industrial facilities.
Product Information
Extended Description
16146-4LC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 4, Screw cover, 4LC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-4LC
UPC
782051760705
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4LC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Panel mount provisions, stainless door clamps
NEMA Rating
4
Country of origin
US
Feature: NEMA 4-rated enclosure provides dependable protection against dust and water intrusion. Business Impact: Upheld safety standards and reduced risk of downtime in harsh environments. Application: Control panels in manufacturing and outdoor installations benefit from rugged weather resistance. Feature: 16 gauge carbon steel with seamless poured-in-place gasket. Business Impact: Improved durability and gasket integrity translate to extended service life and lower replacement costs. Application: Industrial electrical cabinets in demanding environments; wall-mounted installations needing durable seals. Feature: External mounting feet and wall mounting capability simplify installation. Business Impact: Faster retrofit projects, reduced labor time, and cleaner, safer mounting configurations. Application: Retrofit of existing control panels or new line setups in factories and warehouses. Feature: Stainless door clamps and panel mount provisions enhance accessibility and security. Business Impact: Easy field servicing with secure door operation, minimizing unplanned maintenance. Application: Service-critical panels where quick access and reliability are essential. Feature: ANSI 61 gray painted finish with 16 inch height, 14 inch width, and 6 inch depth. Business Impact: Consistent aesthetics and predictable footprint for space planning and equipment placement. Application: Wall-mounted enclosures in machine rooms and secondary electrical spaces. Feature: UL 50, CSA C22.2 approvals and NEMA 4 rating. Business Impact: Regulatory compliance and confidence in performance for sensitive electrical systems. Application: Applications requiring certified protection in commercial and light industrial settings.
Get a Quick Quote for a Eaton 16146-4LC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-4LC?
Enquire Now
FAQs
Yes. The 16146-4LC is designed for wall mounting and includes external mounting feet that simplify secure attachment to walls or structural supports. This configuration minimizes installation time and ensures a stable, vibration-resistant enclosure for mounted control panels.
The enclosure measures 16 inches in height, 14 inches in width, and 6 inches in depth. It weighs approximately 15.8 pounds, with a 16 gauge carbon steel body and painted ANSI 61 gray finish, providing a compact yet sturdy enclosure for space-constrained panels.
Yes. With a NEMA 4 rating and UL 50 / CSA C22.2 certifications, the 16146-4LC is designed for outdoor or harsh indoor environments, providing protection against dust, water, and weathering while maintaining access through a screw-covered door.
The enclosure carries UL 50 and CSA C22.2 certifications and is rated NEMA 4, ensuring compliance for most industrial control applications. This combination supports regulatory acceptance for control panels and electrical housings used in challenging facilities.
The seamless gasket and durable 16 gauge carbon steel construction reduce ingress risk and corrosion over time, lowering maintenance costs and extending service life. Quick-access screw covers simplify routine inspections and panel servicing, delivering faster maintenance cycles and improved uptime.
