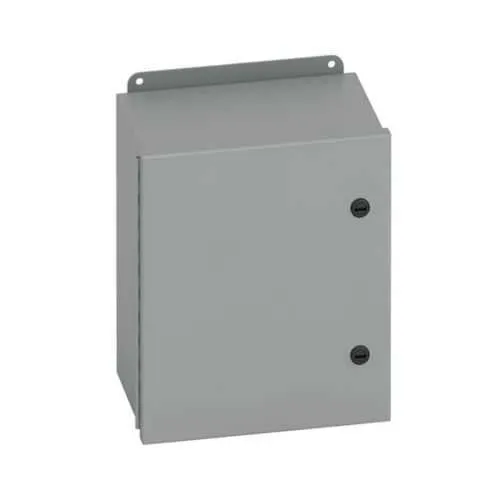

Eaton 16146-4QT JIC Panel Enclosure - NEMA 4/UL 50
Part Number: 16146-4QT
Quick Summary
Eaton 16146-4QT JIC panel enclosure is a rugged wall-mount solution designed to protect industrial control panels in harsh environments. Installers confront weather sealing, door closure reliability, and space constraints, especially in compact plant layouts. UL 50, CSA C22.2, and NEMA 4 ratings back performance against dust, moisture, and corrosion, giving operators confidence in uptime. The enclosure's 16 in height, 14 in width, and 6 in depth optimize footprint while still accommodating standard components. Painted ANSI 61 gray carbon steel construction supports long-term durability, while external mounting feet and a hinged cover streamline field installation and service. This combination delivers compliance, safety, and operational efficiency for panel builders and maintenance teams.
Product Information
Extended Description
16146-4QT Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 4, Hinged cover, 4QT enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-4QT
UPC
782051881868
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.8 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
16 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Small single door
Model
4QT enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous piano hinge,panel mount,1/4 turn latches
NEMA Rating
4
Country of origin
US
Feature: Carbon steel construction with 16 gauge wall thickness and a painted ANSI 61 gray finish. Impact: Delivers tamper resistance and long-term durability in harsh environments, reducing maintenance cycles. Application: Ideal for factory automation panels and control cabinets where longevity matters. Feature: Precise dimensions of 16 in height, 14 in width, and 6 in depth with a 15.8 lb weight. Impact: Provides a compact footprint that fits tight spaces while supporting standard components. Application: Retrofit projects in crowded electrical rooms and new installations on constrained walls. Feature: NEMA 4 rating with seamless poured-in-place gasket plus UL 50 and CSA C22.2 certifications. Impact: Delivers reliable dust and water ingress protection, enabling outdoor and wash-down environments. Application: Outdoor installations and damp facilities in industrial settings. Feature: Hinged cover with continuous piano hinge and 1/4-turn latches. Impact: Ensures durable door operation and quick service access, reducing downtime. Application: Frequent maintenance of PLCs and motor controllers. Feature: External mounting feet and wall-mount capability. Impact: Simplifies installation, alignment, and leveling, offering flexible mounting options. Application: New builds and retrofits where mounting flexibility saves time and labor. Feature: Special features include continuous piano hinge, panel mount, and 1/4-turn latches. Impact: Enhances reliability and serviceability, enabling quicker integration with panel accessories. Application: Modular control panel designs in modern factories.
Get a Quick Quote for a Eaton 16146-4QT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-4QT?
Enquire Now
FAQs
To verify compatibility, compare the enclosure footprint (16 in H × 14 in W × 6 in D) and the wall-mount method with external feet to your existing panel layout. Confirm the small single-door design, hinged cover, and 15.8 lb weight fit your space and handling limits. Ensure the unit’s NEMA 4 rating and UL 50/CSA C22.2 compliance meet your environmental requirements.
Key performance specs include the NEMA 4 rating, UL 50 and CSA C22.2 certifications, 16 gauge carbon steel construction, and the footprint of 16 in H × 14 in W × 6 in D, along with a hinged cover and continuous piano hinge. The 15.8 lb weight supports safe handling and installation, while external feet simplify alignment. These factors influence protection level, serviceability, and lifecycle costs.
Yes. The enclosure is designed for damp and wash-down environments thanks to its NEMA 4 rating and seamless gasket seal, which protect interior components from dust, moisture, and light splashes. While not a dedicated outdoor housing, proper installation with weather considerations makes it suitable for semi-exposed plant areas and outdoor facilities in many industrial settings.
Certifications UL 50, CSA C22.2, and the NEMA 4 rating establish enclosure integrity, electrical safety, and environmental protection. These standards help with regulatory compliance during audits, support spec-driven purchasing, and improve reliability in critical applications such as control panels, PLCs, and motor starters in regulated industrial environments.
Maintenance and ROI focus on serviceability and lifecycle costs. The hinged cover and external feet speed inspections and reconfigurations, minimizing downtime. The carbon steel with painted finish resists corrosion in typical plant environments. While upfront costs are higher than basic boxes, durability, reduced maintenance, and faster commissioning provide favorable total cost of ownership over the equipment’s life.
