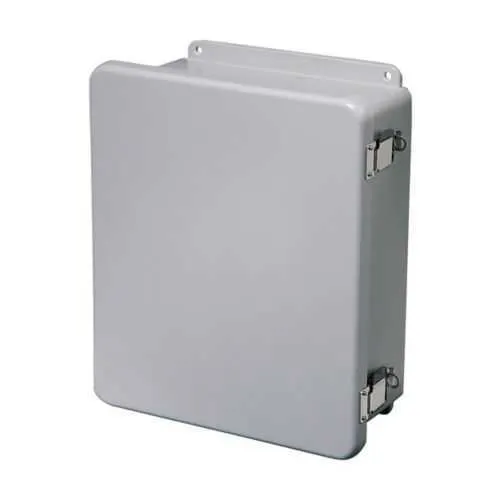

Eaton 16146-4XFCHQRC JIC panel enclosure - NEMA 4X
Part Number: 16146-4XFCHQRC
Quick Summary
Eaton 16146-4XFCHQRC JIC panel enclosure is a rugged fiberglass housing for electrical control panels in harsh environments. It addresses corrosion, moisture ingress, and maintenance downtime common with metal enclosures. Certified to UL 50 and CSA C22.2 with a NEMA 4X rating, it is suitable for outdoor or washdown areas. As a wall-mounted unit with a hinged cover, external mounting feet, and padlock provisions, it supports quick installation and secure operation. The seamless gasket and sturdy construction improve reliability in challenging facilities, reducing field service calls. For integrators, it aligns with Eaton B-Line accessories, delivering predictable lifecycle costs and easier spare-part planning.
Product Information
Extended Description
16146-4XFCHQRC Eaton: Eaton B-Line series JIC panel enclosure, 17.53" height, 6.23" length, 15.46" width, NEMA 4X, Hinged cover, 4XFCHQRC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-4XFCHQRC
UPC
782051523997
Product Length/Depth
6.23 in
Product Height
17.53 in
Product Width
15.46 in
Product Weight
11.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Fiberglass construction delivers durable, corrosion-resistant protection in coastal, chemical, or washdown environments, reducing maintenance frequency and total cost of ownership while enabling reliable panel siting in challenging facilities. The NEMA 4X rating provides weatherproof sealing and high impact resistance, so dry and wet environments alike stay safeguarded and compliant with harsh-duty applications. A hinged cover offers rapid access for routine inspections and component replacements, shortening maintenance windows and improving plant uptime. External mounting feet simplify wall installation and provide stable mounting without special fabrication, accelerating deployment in retrofit projects and new builds alike. Padlock provisions support compliant security measures, helping facilities meet access-control requirements and minimize unauthorized entry. Stainless pull-drawn catch hardware enhances long-term closure reliability, reducing service interruptions and enhancing operator confidence in daily operations.
Get a Quick Quote for a Eaton 16146-4XFCHQRC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-4XFCHQRC?
Enquire Now
FAQs
The enclosure is designed for wall mounting with external mounting feet, enabling straightforward installation on existing structures or surfaces. Its external feet simplify alignment and spacing, reducing field fabrication. It is compatible with Eaton B-Line series accessories for enhanced mounting configurations, cable management, and modular expansion, making it a flexible solution for retrofit or new-build control panels.
This model carries a NEMA 4X rating for weatherproof, corrosion-resistant protection. It is certified to UL 50 and CSA C22.2, ensuring compliance with industry safety and performance benchmarks for electrical enclosures. The fiberglass construction further supports resistance to chemicals and impact, making it suitable for challenging environments such as outdoor installations and washdown facilities.
Yes. The NEMA 4X rating combined with UL 50 and CSA C22.2 certifications makes it a robust outdoor-ready option. Fiberglass material provides superior corrosion resistance and easier cleaning in washdown zones, helping maintain reliability in food processing, water treatment, and outdoor automation applications without frequent enclosure replacements.
UL 50 and CSA C22.2 indicate that the enclosure meets established safety, construction, and performance requirements for electrical cabinets. This reduces compliance risk for regulated facilities and simplifies approval processes with inspectors. The NEMA 4X rating adds assurance that ingress protection and exterior durability meet harsh-environment expectations.
Fiberglass enclosures resist corrosion far better than many metal options, lowering repainting and replacement needs in aggressive environments. This translates to lower maintenance labor and longer service intervals. Combined with a hinged door and secure padlock provisions, preventive maintenance is streamlined, supporting uptime, predictable budgeting, and a favorable total cost of ownership over the system’s life.
