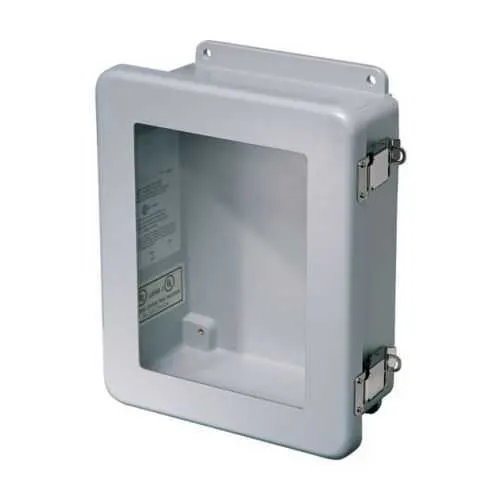

Eaton 16146-4XFCHQRCW Enclosure - NEMA 4X Fiberglass
Part Number: 16146-4XFCHQRCW
Quick Summary
Eaton 16146-4XFCHQRCW is a fiberglass JIC panel enclosure designed to protect electrical controls in harsh industrial environments. In crowded control rooms or outdoor sites, door hardware and gasket integrity often drive service calls and downtime. This enclosure carries UL 50 and NEMA 4X ratings, along with CSA C22.2 compliance, giving you dependable weatherproof protection and electrical safety. With a wall-mount design, external mounting feet, and a hinged cover, installation is faster and maintenance is simpler, even in limited spaces. Combined with a stainless pull-drawn catch and padlock provisions, it supports secure, code-compliant installations while delivering long-term cost savings.
Product Information
Extended Description
16146-4XFCHQRCW Eaton: Eaton B-Line series JIC panel enclosure, 17.53" height, 6.23" length, 15.46" width, NEMA 4X, Hinged cover, 4XFCHQRCW enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-4XFCHQRCW
UPC
782051524123
Product Length/Depth
6.23 in
Product Height
17.53 in
Product Width
15.46 in
Product Weight
11.5 lb
Certifications
UL 50 NEMA CSA C22.2.
Material
Fiberglass
Finish color
Unfinished
Color
Gray
Style
Medium single door
Model
4XFCHQRCW enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Locking provisions
Padlock provision
Closure type
Hinged
Special features
Stainless pull drawn catch
NEMA Rating
4X
Country of origin
US
Feature: Fiberglass construction delivers excellent corrosion resistance and abrasion tolerance in washdown and chemical-exposure environments → Business Impact: Reduces maintenance costs and extends service intervals, enhancing plant uptime → Application: Suitable for process automation panels in chemical processing or food & beverage facilities. Feature: NEMA 4X rated enclosure with seamless poured-in-place gasket → Business Impact: Provides robust weather sealing and dust ingress prevention → Application: Outdoor switches, control cabinets, and exposed electrical equipment in harsh environments. Feature: Hinged cover with external mounting feet and wall-mount capability → Business Impact: Faster installation, easier access for maintenance, and adaptable mounting options → Application: Retrofit projects or limited-space installations in industrial plants. Feature: Padlock provisions with stainless pull drawn catch → Business Impact: Improves security and tamper-resistance while maintaining compliance → Application: Critical control panels requiring restricted access in manufacturing facilities. Feature: Medium single door, external feet, gray fiberglass enclosure → Business Impact: Predictable footprint and consistent compatibility with standard components → Application: General purpose field enclosures for control and automation cabinets. Feature: Certifications UL 50, NEMA 4X, CSA C22.2 → Business Impact: Streamlines compliance processes and reduces audit risk → Application: Projects requiring formal electrical safety and environmental ratings in both US and Canadian operations.
Get a Quick Quote for a Eaton 16146-4XFCHQRCW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-4XFCHQRCW?
Enquire Now
FAQs
How to install the 16146-4XFCHQRCW within an existing control cabinet depends on wall-mount clearances and door swing. Confirm external mounting feet clearance, ensure gasket seating is intact, and use the padlock provisions to secure the enclosure after mounting. The hinged cover facilitates tool-free access during maintenance and reduces downtime, while maintaining NEMA 4X integrity in rugged environments.
This enclosure carries UL 50, NEMA 4X, and CSA C22.2 certifications, signaling compliance with safety, weatherproofing, and electrical code requirements. These ratings matter for code compliance audits, outdoor installations, and environments with washdown or chemical exposure, ensuring predictable performance and streamlined procurement for regulated facilities.
Yes. The NEMA 4X rating and fiberglass construction provide corrosion resistance and weather protection suitable for outdoor and washdown environments. When installed with proper sealing and secure mounting, the enclosure performs reliably against moisture, dust, and impacts typical in industrial outdoors, processing, and food/beverage facilities.
External mounting feet simplify alignment and mounting on a wall or bulkhead, allowing precise positioning without internal brackets. This design accelerates retrofits and new installs, reduces site labor, and helps ensure a robust seal around the door, contributing to improved IP protection and safer maintenance access.
By combining durable fiberglass construction, reliable gasket sealing, and secure access, the enclosure reduces maintenance costs, downtime, and risk of environmental damage to electrical controls. Its standardized dimensions and mounting options also lower installation labor, spare parts, and retrofit complexity, delivering a favorable return on investment over the equipment lifecycle.
