Eaton 16146-4XSCHC JIC Panel Enclosure - NEMA 4X
Part Number: 16146-4XSCHC
Quick Summary
The Eaton B-Line series JIC panel enclosure protects electrical gear in harsh environments, delivering rugged, corrosion-resistant housing for control panels. This enclosure design helps avoid gasket failure and water ingress that plague outdoor or wash-down areas. UL 50, CSA C22.2, and NEMA 4X ratings are built in to support compliance and performance in tough industrial settings. In practice, its stainless steel construction reduces maintenance needs, while external mounting feet streamline installation and service. This combination supports longer asset life and lower lifecycle costs in manufacturing, water treatment, and process industries. For engineers and procurement teams, the 16146-4XSCHC offers a reliable, future-ready solution that scales with evolving safety and hygiene requirements, while aligning with budget-conscious modernization programs.
Product Information
Extended Description

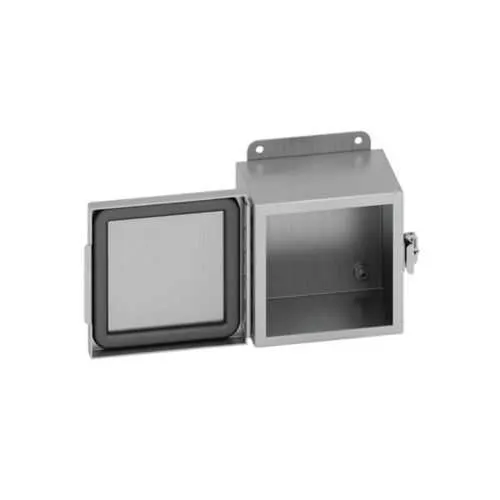

16146-4XSCHC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 4X, Hinged cover, 4XSCHC enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-4XSCHC
UPC
782051702729
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.7 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSCHC enclosure
Cover type
Hinged
Mounting method
Wall
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Cont. piano hinge,panel mount prov.,s.s.doorclamps
NEMA Rating
4X
Country of origin
US
Feature: 304 stainless steel construction with 16 gauge wall thickness. Business Impact: Exceptional corrosion resistance and structural integrity in wash-down and chemical environments, reducing replacement cycles. Application: Food processing lines, chemical plants, and water treatment facilities benefit from longer service life without frequent enclosure replacement. Feature: 16" x 14" x 6" footprint with wall-mount design and external mounting feet. Business Impact: Compact, versatile footprint enables installation in constrained spaces and simplifies reconfiguration during line changes. Application: Control panel housings in retrofit projects and tight OEM footprints. Feature: Seamless poured-in-place gasket and contoured piano hinge. Business Impact: Superior seal integrity lowers leak risk, decreases maintenance downtime, and extends enclosure life. Application: Outdoor and indoor installations with frequent washdowns. Feature: Small single-door, hinged cover with external feet. Business Impact: Easy access for panel wiring and servicing, reducing commissioning time and labor costs. Application: Electricians performing field upgrades in industrial facilities and new builds. Feature: Certifications including UL 50, CSA C22.2, and NEMA 4X. Business Impact: Accelerates compliance and audit readiness, minimizing project risk. Application: Regulated industries such as manufacturing and processing plants.
