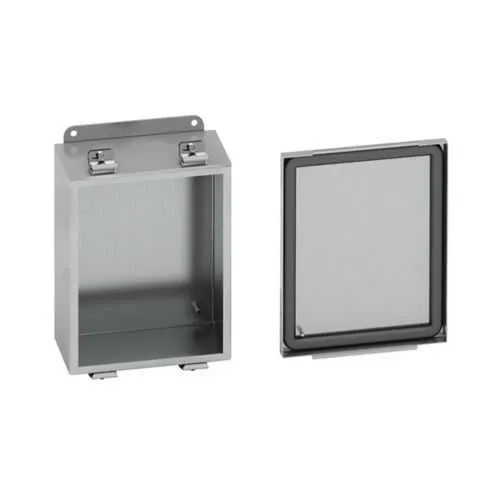

Eaton 16146-4XSLC JIC panel enclosure - NEMA 4X
Part Number: 16146-4XSLC
Quick Summary
The Eaton 16146-4XSLC JIC panel enclosure protects electrical gear with rugged stainless steel in demanding environments. Design teams often struggle to maintain gasket integrity and corrosion resistance while meeting space constraints. UL 50, CSA C22.2, and NEMA 4X ratings underwrite reliability, while 304 stainless steel provides long-term durability. In automation projects, this wall-mount enclosure reduces maintenance costs and simplifies panel protection without compromising access or speed. Its external mounting feet and screw-cover design streamline installation in tight spaces and retrofit projects. This combination of ratings, materials, and mounting flexibility supports durable industrial controls for diverse sectors.
Product Information
Extended Description
16146-4XSLC Eaton: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 4X, Screw cover, 4XSLC enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
Product Name
Eaton B-Line series JIC panel enclosure
Catalog Number
16146-4XSLC
UPC
782051700602
Product Length/Depth
6 in
Product Height
16 in
Product Width
14 in
Product Weight
15.6 lb
Certifications
UL 50 CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
16 gauge
Finish color
#4 brushed
Color
Gray
Style
Small single door
Model
4XSLC enclosure
Cover type
Screw
Mounting method
Wall
Mounting hole details
External mounting feet
Special features
Panel mount provisions, stainless door clamps
NEMA Rating
4X
Country of origin
US
Feature: 304 stainless steel construction with 16 gauge wall thickness provides superior corrosion resistance and rugged mechanical protection. Business impact: Reduces maintenance downtime and replacement costs in harsh environments. Application: Ideal for washdown areas, coastal facilities, and outdoor switchgear enclosures. Feature: NEMA 4X enclosure rating with a gasket-sealed interface prevents water and dust ingress. Business impact: Improves reliability of internal controls and minimizes unplanned shutdowns. Application: Outdoor plants, chemical processing, and marine environments. Feature: Wall-mount design with external mounting feet and a screw cover simplifies retrofit and installation. Business impact: Faster, cleaner setup with secure mounting and easy access for wiring. Application: Control rooms and equipment cabinets in compact spaces. Feature: Seamless poured-in-place gasket enhances seal integrity across temperature swings. Business impact: Maintains enclosure integrity over time, reducing service calls. Application: Industrial automation panels exposed to washdown and humidity. Feature: Finish and fabrication details, including 304 stainless steel and 16 gauge wall, support long life and cleanability. Business impact: Lower lifecycle costs due to corrosion resistance and easy maintenance. Application: Food & beverage, pharmaceutical, and harsh manufacturing environments. Feature: Compliance-ready design with UL 50, CSA C22.2, and NEMA 4X credentials. Business impact: Simplifies audits and accelerates regulatory approvals. Application: Any regulated industrial installation requiring robust protection.
Get a Quick Quote for a Eaton 16146-4XSLC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton 16146-4XSLC?
Enquire Now
FAQs
The 16146-4XSLC is designed for wall mounting with external feet, and its 16x14x6 in footprint aligns with common panel depths. Ensure mounting surface clearance for the 6 in depth, verify door clearance for the 16 in height, and confirm compatibility with screw-cover access to simplify retrofits while preserving gasket integrity.
This enclosure uses 304 stainless steel with a 16 gauge wall, delivering excellent corrosion resistance. It carries a NEMA 4X rating and is certified to UL 50 and CSA C22.2 standards, ensuring suitable protection against water, dust, and washdown conditions in demanding environments.
Yes. The 304 stainless steel construction, 4X rating, and seamless gasket design provide robust protection against washdown, chemical exposure, and humidity. It is well-suited for food & beverage facilities, chemical plants, and outdoor installations where cleanability and corrosion resistance are critical.
Look for UL 50, CSA C22.2 certifications, and NEMA 4X ratings. UL 50 covers enclosures for electrical equipment, CSA C22.2 confirms Canadian compliance, and NEMA 4X indicates resistance to windblown dust, rain, and corrosion in outdoor or harsh environments.
The combination of 304 stainless steel, gasket-sealed joints, and a durable 16 gauge wall reduces corrosion-related maintenance and replacement costs. Its straightforward wall-mount installation minimizes downtime during upgrades, delivering lower total cost of ownership and faster ROI in automation and control panel projects.
